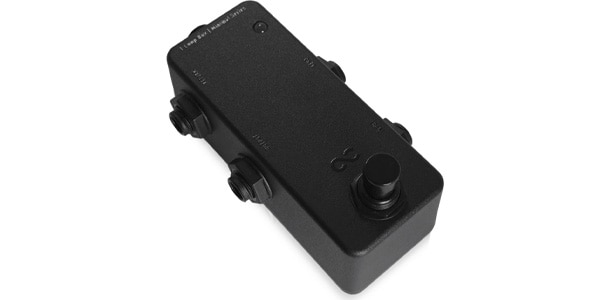

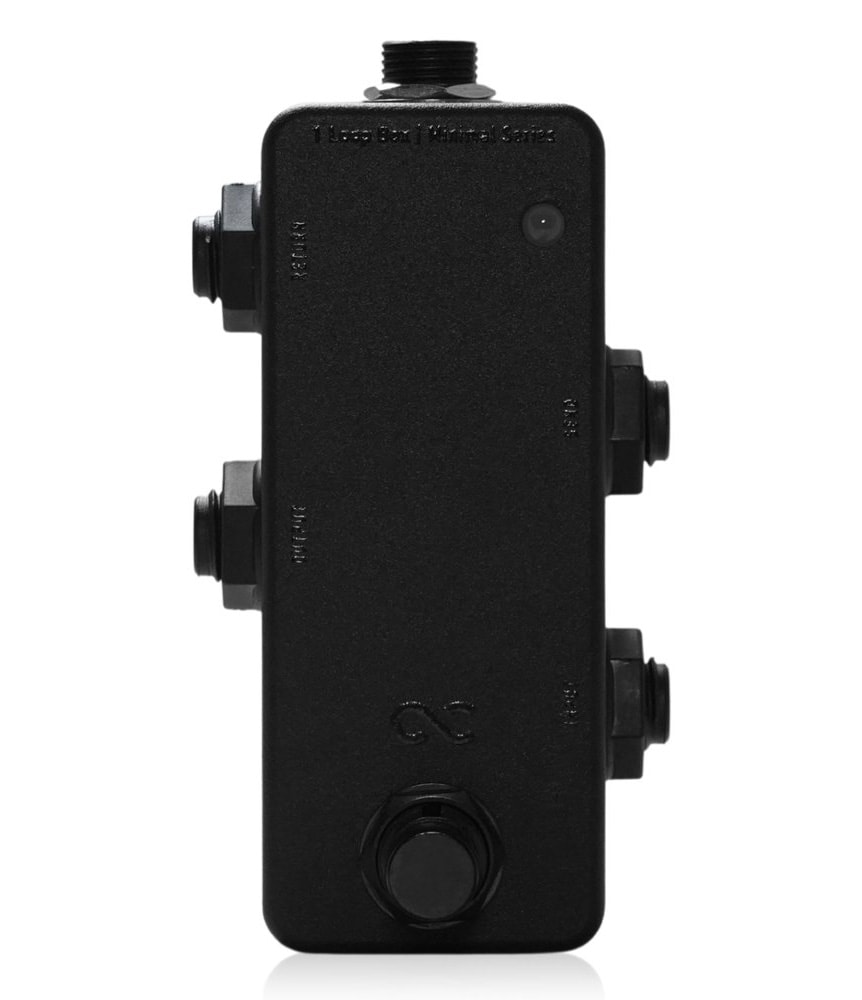

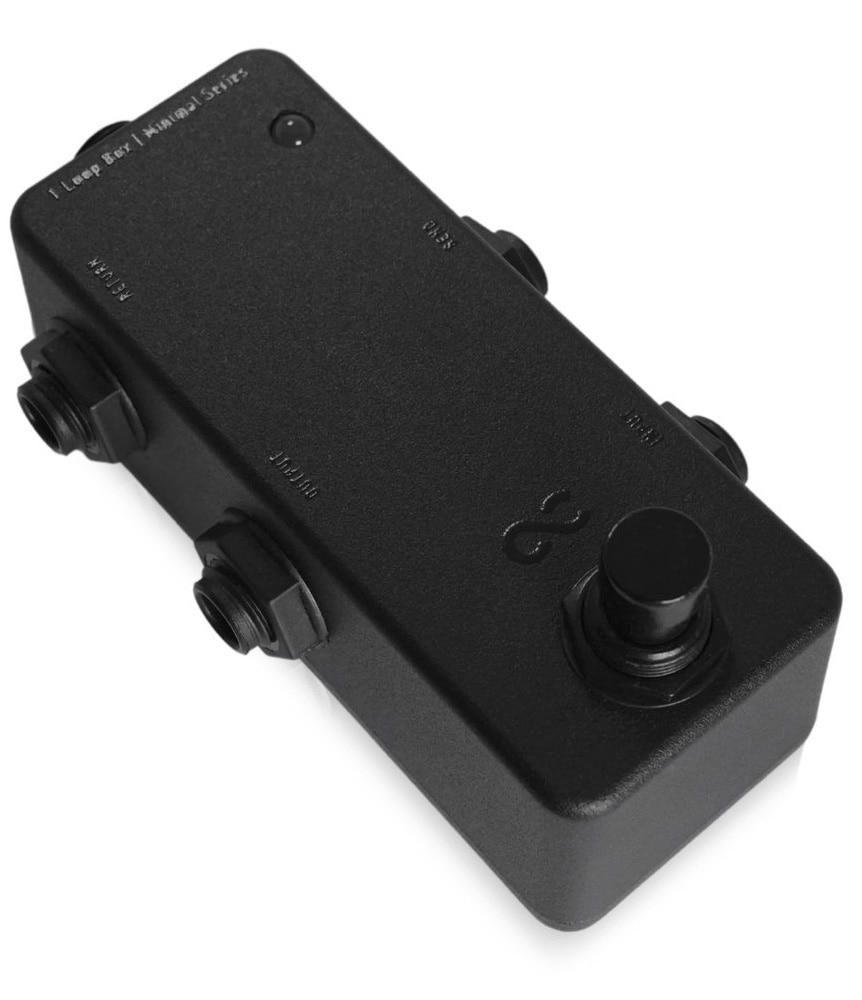

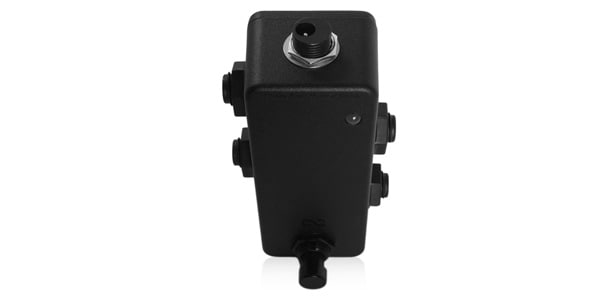

One Control / Minimal Series 1LoopBOX Black Edition

This pedal has a compact body and an effects loop. It is an innovative item that can be used in a variety of ways depending on the settings.

■Loop & Switching System
■Black Edition
■Power supply: DC9V (center negative, EPA-2000 recommended, battery cannot be built-in)
■Dimensions, weight: 54Wx 48Hx101mm, approx. 120g
～From the manufacturer's website～
The Minimal Series is a pedal that eliminates all waste in the manufacturing of pedals, achieving the smallest, most compact size, and integrating simple yet sophisticated functionality. This pedal truly deserves to be called Minimal.

The One Control Minimal Series 1LoopBox is a pedal equipped with an effects loop in a minimal size. By using an innovative arrangement, this is the world's first manufacturer to have succeeded in producing a 1LoopBox of this size.

The 1LoopBox is a pedal that can be used in a variety of ways.
When OFF, the signal input from the INPUT is output from the OUTPUT, but when you step on the foot switch, the signal input from the INPUT is output from the SEND, and the signal input from the RETURN is output from the OUTPUT.

To minimize the impact on the signal, the One Control Minimal Series 1LoopBox uses true bypass with a mechanical foot switch. When used as an effect loop, it allows you to turn multiple effects on and off at once, and vintage effects that change sound significantly when bypassed can also be used as modern true bypass pedals.

-If you use only the INPUT, SEND, and OUTPUT terminals, the 1LoopBox can be used as an AB box. By stepping on the foot switch, the output can be switched to SEND or OUTPUT, so it can be used for tuner outs and amplifier switching.

-If you use only the INPUT, RETURN, and OUTPUT terminals, it becomes an input selector that is convenient for switching between multiple instruments. By connecting instruments to the INPUT and RETURN sides, you can switch the active instrument with the foot switch.

-If you use only the INPUT and OUTPUT terminals, this pedal becomes a mute switch. By stepping on the foot switch, the output can be muted, and by stepping on it again, the output can be restored.

The Minimal Series 1LoopBox uses passive circuitry, so no power supply is required to use these functions. If you want to display the ON/OFF status with an LED indicator for better visibility, a standard center negative DC9V adapter (EPA-2000 recommended) is required.
