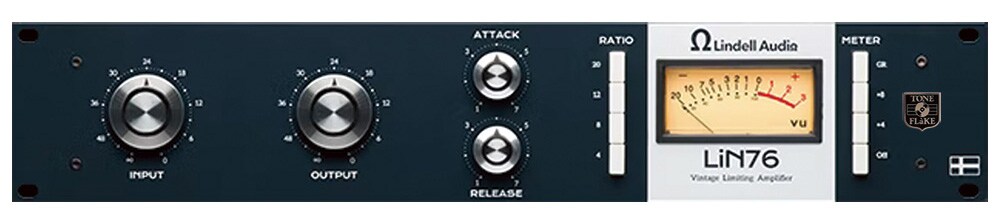

LINDELL AUDIO / LIN76 Toneflake Custom

代理店サイト商品ページ

A custom version of the company's LIN76, designed to reproduce the tone of a vintage 76-style FET compressor.

こちらの
商品も
オススメ！

WARM AUDIO コンプレッサー WA76

高品質ながら驚きのコストパフォーマンスを実現しています。

Main Features
Provides instant vintage-feeling dynamics processing
4:1, 8:1, 12:1, 20:1, and all push modes
Vintage-style VU meters have
Variable attack/release time with ultra-fast attack options
Balanced input/output jacks

■Specifications
Attack: Continuously variable 20uS to 800uS
Release: Continuously variable 50mS to 1200mS
Ratio: Pushbutton selected 4:1, 8:1, 12:1, 20:1 and any combination
Voltage: 12VAC
AC Mains Input: 100V (power adapter included)
Dimensions： Width 438mm (19")
Height 88mm (2U)
Depth 250mm
Weight 8kg

Custom Contents
Input/output connectors were changed to Neutrik cannons (TRS was removed).
WAGNUS AQUA was used for the internal solder to ensure a broadband response.
High-grade capacitors were used in the input section to improve high-frequency characteristics, and high-performance bypass capacitors were used in other transistor circuits.
The power supply of the output circuit has been strengthened to ensure a full mid-low frequency response.
