LABGRUPPEN / IPX1200

LABGRUPPEN ( ラブグルッペン ) のステレオパワーアンプ。1200W、DSP搭載。

[General] ◆ Number of output channels: 2
Number of output channels: 2
Maximum output power: 500W (2Ω) / 600W (4Ω) / 300W (8Ω)

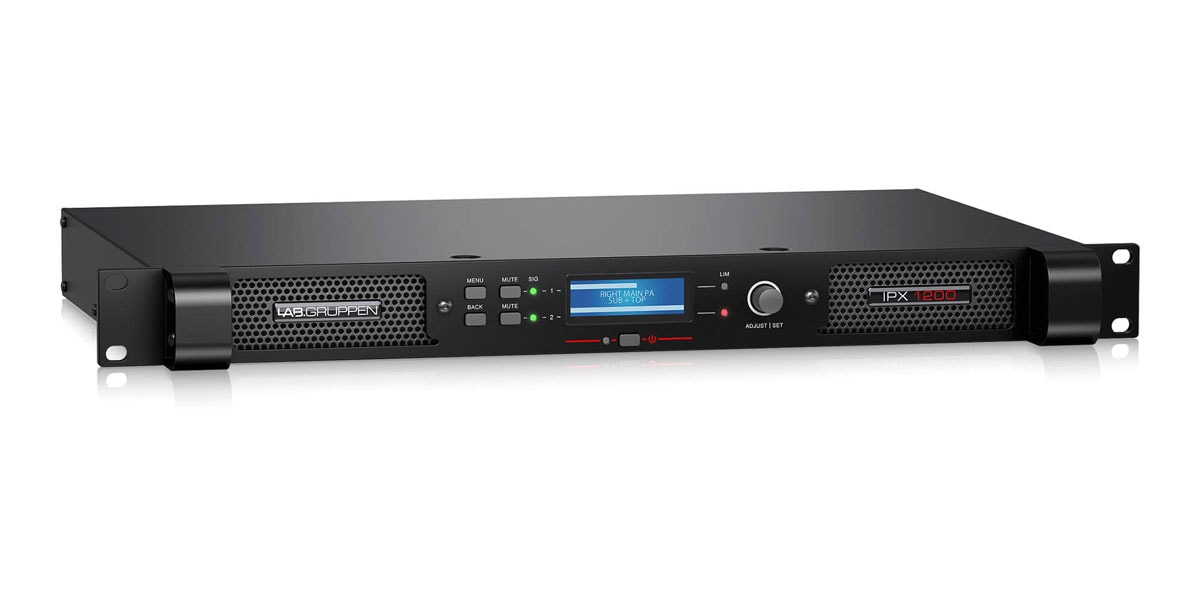

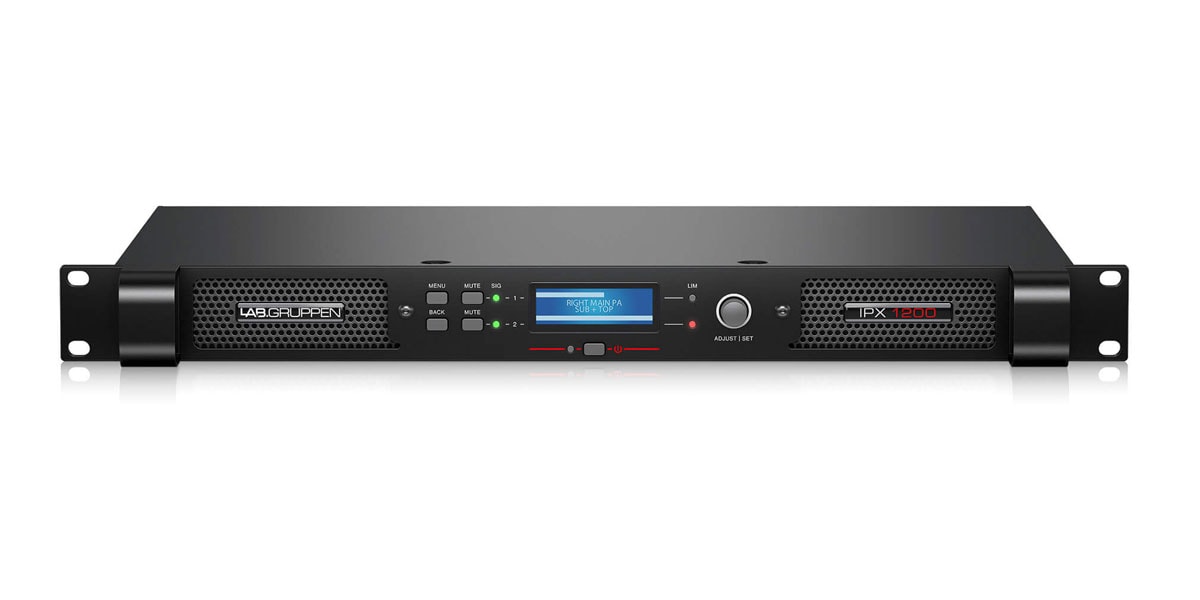

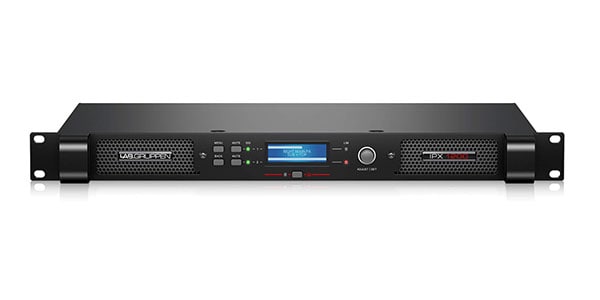

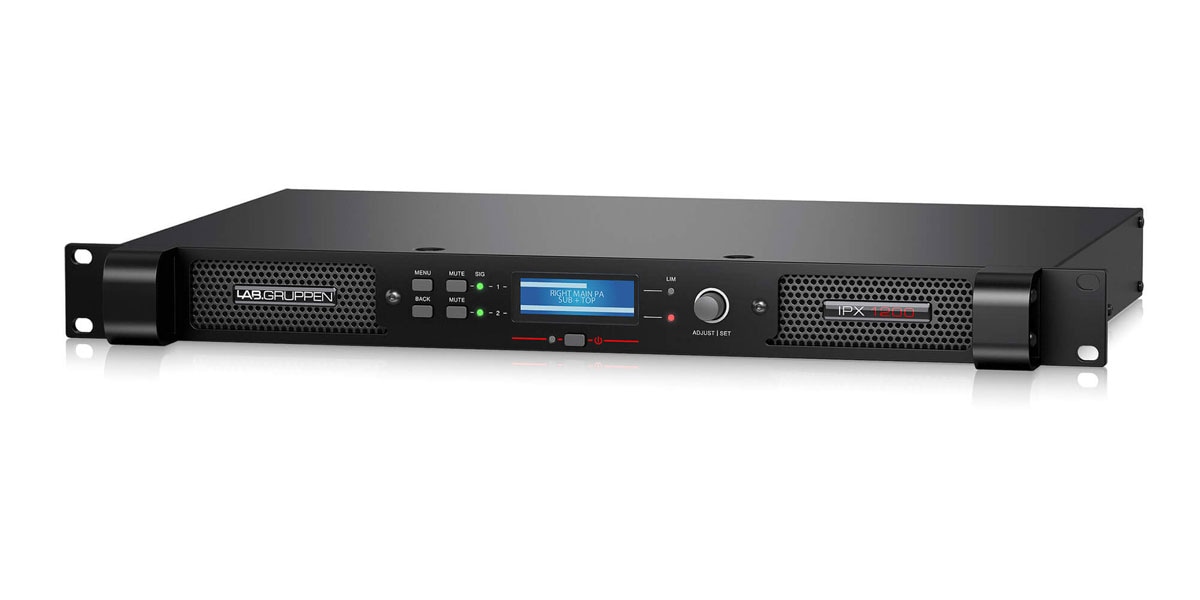

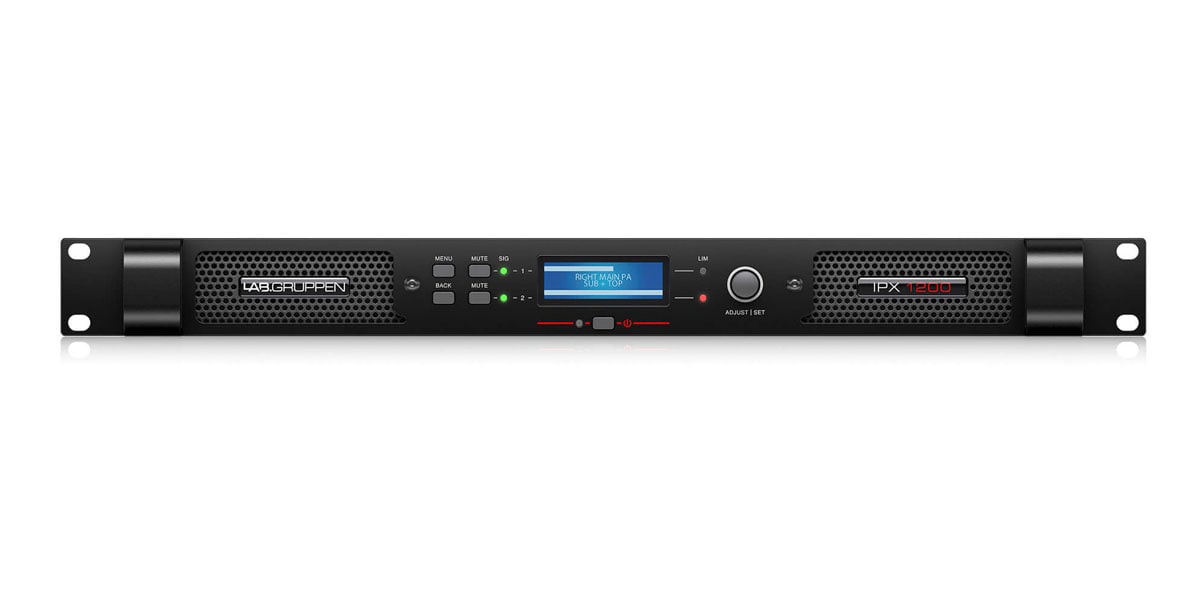

[Controls] ◆ Front: Power switch, DSP section
Front: Power switch, DSP section Rotary push encoder
Menu, back, mute buttons (per channel)

[System] ◆ Output voltage: 70V peak / 300W (8Ω)
Output voltage: 70V peak / 50V rms / 36.2dBu
Input sensitivity at max output voltage: 6dBu
Output current: 16 A rms
Output circuit: Class D
Distortion (20Hz - 20kHz @1W): < 0.1
Distortion (1kHz, 1dB below clip): < 0.05
Output Noise (A-weighted): -66dBu
SN ratio: > 102dB
Channel Crosstalk: > 80dB @1kHz
Frequency Response: 10Hz to 20kHz, +0.5/-1dB / 5Hz to 40kHz, -3dB
CMR (common-mode rejection ratio): > 50dB
Gain (all DSP control settings = 0dB): 30dB

Indicators
Power: Red
Limit per channel: Red
Signal/Mute per channel: Signal (Green), Mute (Red)

Digital Signal Processing (DSP)
Display: LCD 128 x 32, white backlit
Functions: 40 multi-slope parametric equalizers
Adjustable high-pass and low-pass filters
Input and output delays (up to 2 seconds each)
Crossover with multiple filter types
◆ Presets: 100 presets

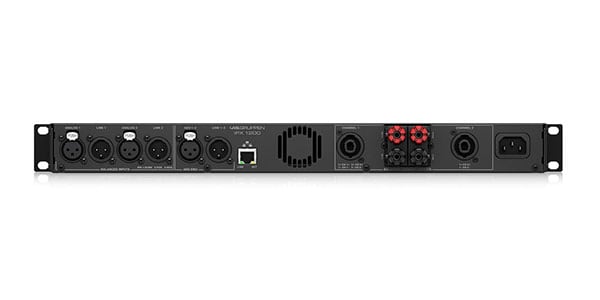

[Connectors]
Analog Inputs: 2 x XLR
Analog Input Impedance: 18kΩ unbalanced / 36kΩ balanced
Maximum analog input level: 20dBu
Digital Inputs: 1 x XLR (AES3 digital format)
Linked outputs (analog): 2 x XLR
Link outputs (digital): 1 XLR (AES3 digital format)
Speaker Outputs: 2 x locking Speakon connectors, 2 x binding posts
Network control: 1 x RJ-45

[Protective functions]
Cooling: Continuously variable speed fan, front intake/rear exhaust
Amplifier protection: (thermal, DC, overcurrent) protection
Circuit Protection: Controlled startup and shutdown operations, DC fault protection

[Power supply, voltage]
Nominal voltage: 100 VAC, 50 / 60Hz
Power consumption (rated power 1/8 @4Ω): 250W
Standby power consumption: < 7W
Connector: Standard IEC connector

[Dimensions/Weight]
Dimensions (H x W x D): 44 x 483 x 336mm
Weight: 5.3kg
