J. ROCKETT AUDIO DESIGNS / Uni-Verb

The Univerb is a pedal based on the idea of ​​a legendary effect from over 50 years ago that became famous for its unique sound, and the vibrato/chorus effect section has been evolved using current technology, with the addition of reverb to create an original sound.

The distinctive sound of the original machine that inspired the idea has been faithfully captured, and the sound of a classic, high-quality spring reverb unit from the 1950s has been reproduced and added.
The Univerb has a vibe section that is easier for guitarists to use than the original, with a wider range of vibrato or chorus effect speeds and a slightly higher output.
The send/return terminal of this unit outputs a signal from the send output terminal after passing through the vibrato/chorus circuit, and the signal input from the return input terminal passes through the reverb circuit and is finally output from the output terminal.
Therefore, you can apply reverb to the final sound set by an amplifier or other effects.
The Univerb is powered by a DC9V (direct current 9 volts) power supply, but since it is boosted to 24V internally, there is no need to prepare a special cable or power supply, and you can use a commonly available DC9V power supply*.
In addition, this unit has a true bypass design that outputs the signal without passing through unnecessary circuits when the effect is off.

■Model name: Uni-Verb

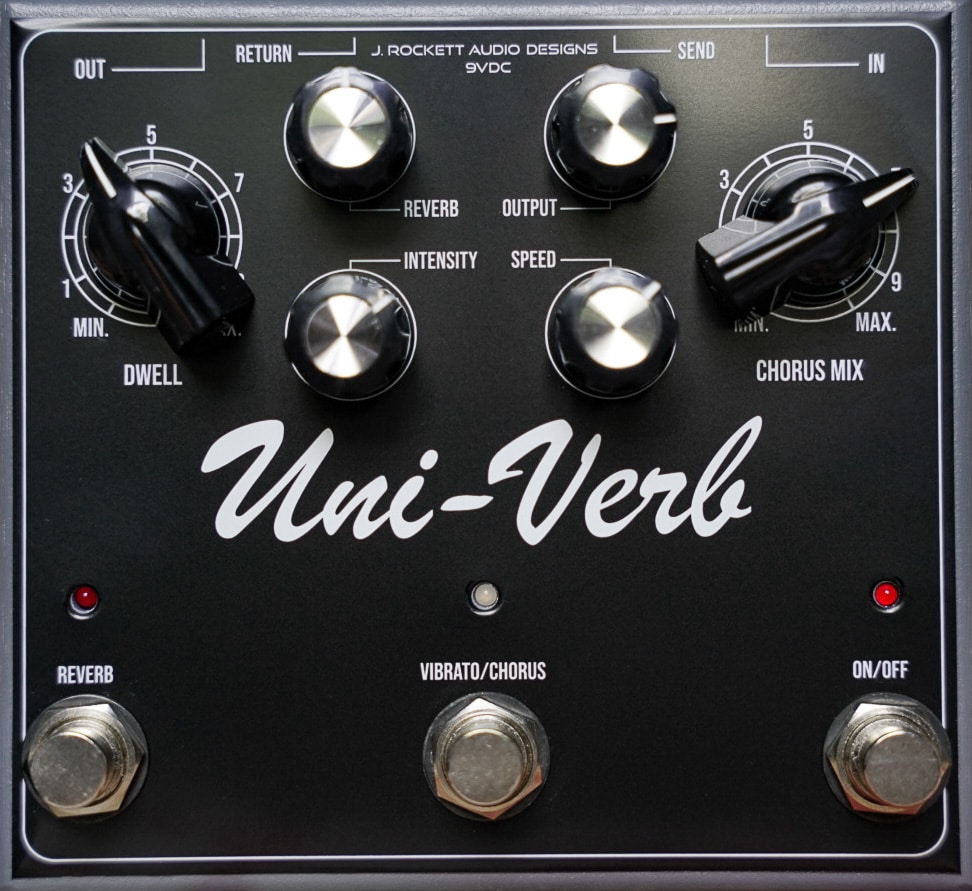

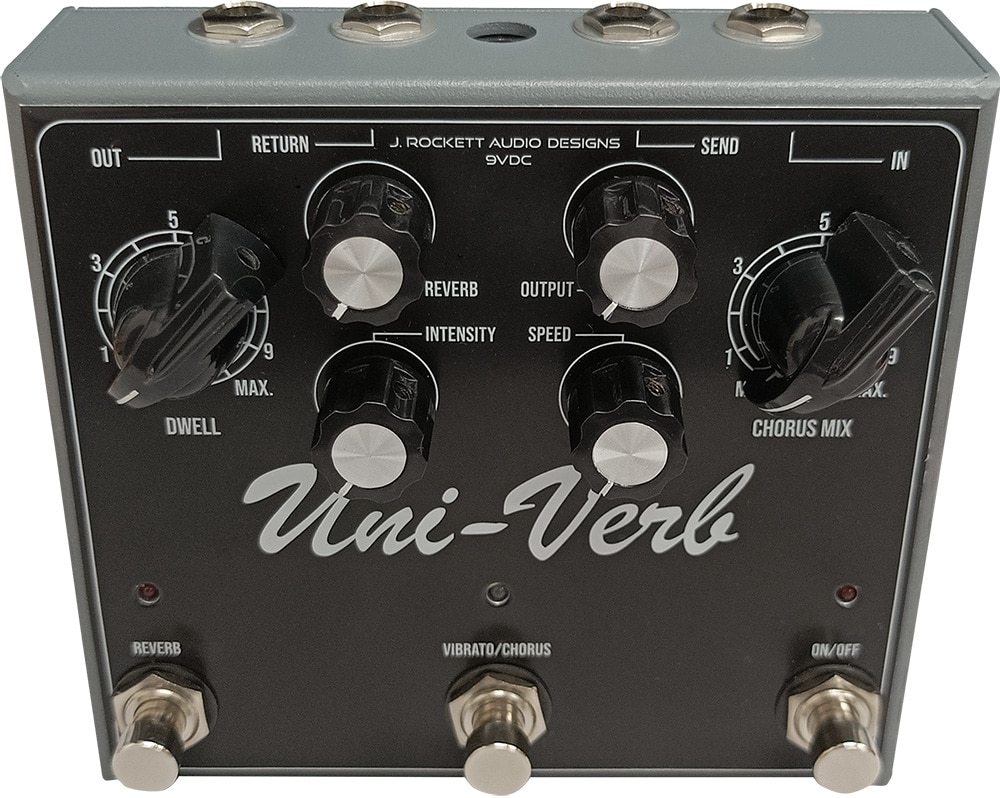

■Controls: Dwell, Reverb, Intensity, Output, Speed, Chorus Mix
■Switches: Reverb, Vibrato/Chorus, On/Off

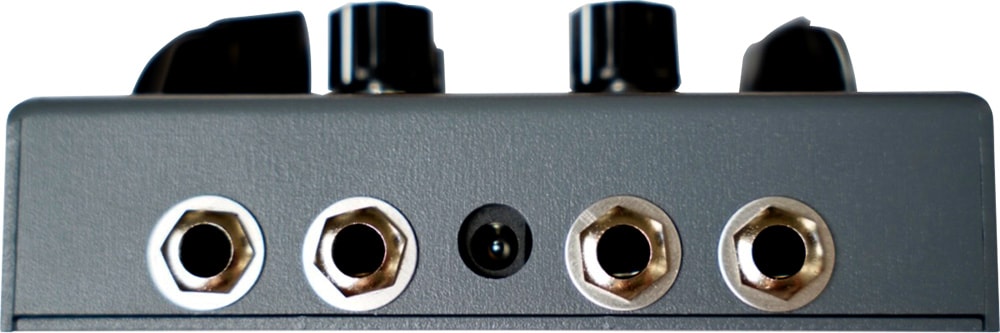

■Input/Output terminals: Ouput, Return, DC In, Send, Input
※DC In compatible plug size: Inner diameter 2.1mm / Outer diameter 5.5mm
■Power supply: 9VDC (sold separately)
■Current consumption: 180mA
■Size (maximum external dimensions): 124(L)×131.5
(W)×49.5(H)mm
■Weight: Approx. 604g
※Make sure to use center negative polarity for the sold separately power supply. The recommended power supply is Music Works DC0913B.
