Laney / LA-STUDIO

Designed with recording in mind, the LA-STUDIO takes its roots in the 1960s SUPERGROUP tube circuitry and rethinks it in a low-wattage package combined with a complete Two Notes Torpedo module. This allows direct connection to a virtual Rainey cabinet and virtual recording with Two Notes Torpedo software and the Two Notes DynIR library.

■Specifications
Main fuse: 100-120V~ = T500mA L 250V, 220-240V~=T250mA L 250V.
Power consumption (Max): 40W
Output: 3W /0.1W in Brake mode.
Input: CH1, Bass & Treble Input Sockets (Input Impedance
1Mohm, Sensitivity 15mV)
CH2, Bass & Treble Input Sockets (Input Impedance 140Kohm, Sensitivity 30mV).
MIDI in 5 Pin DIN.
USB Type A to control Two Notes

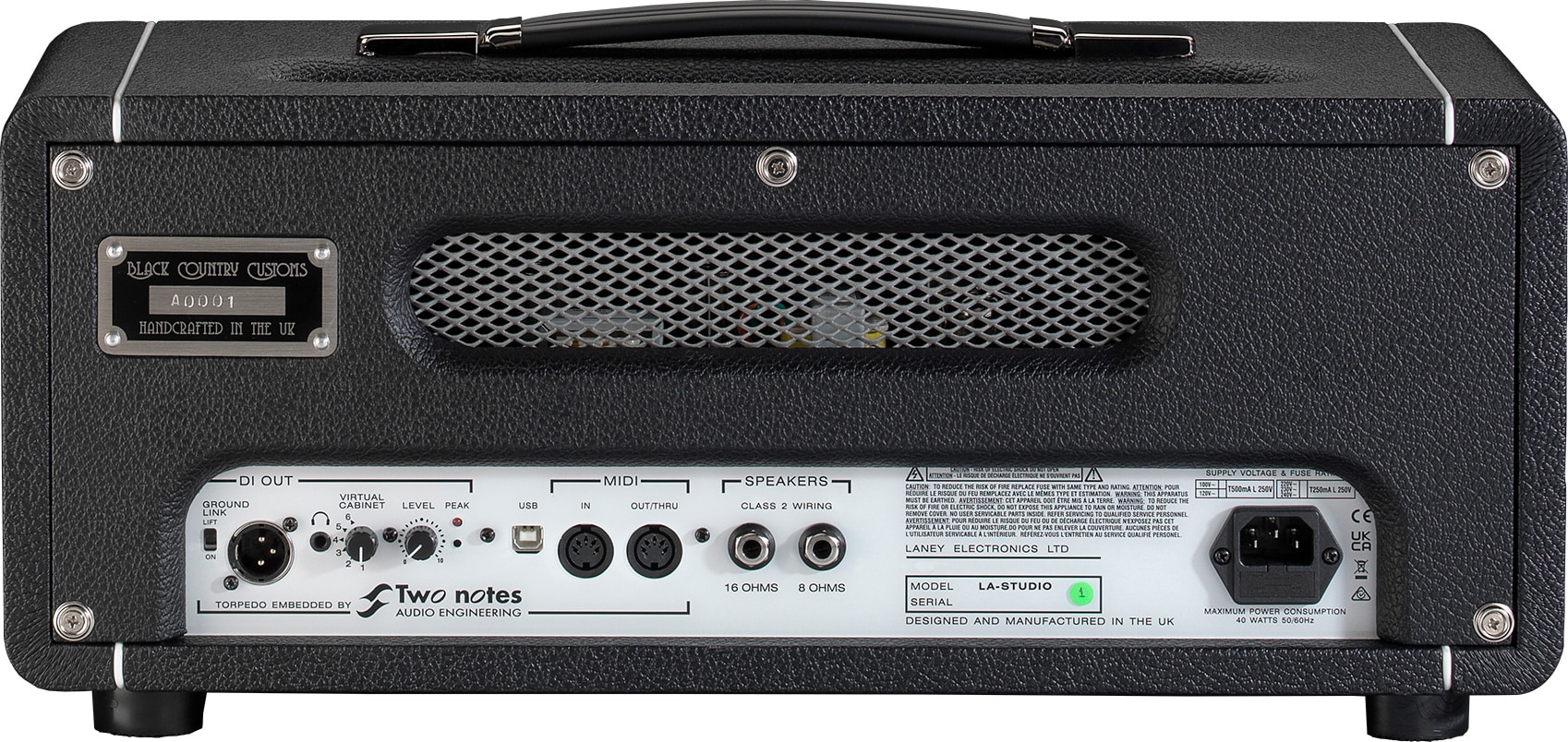

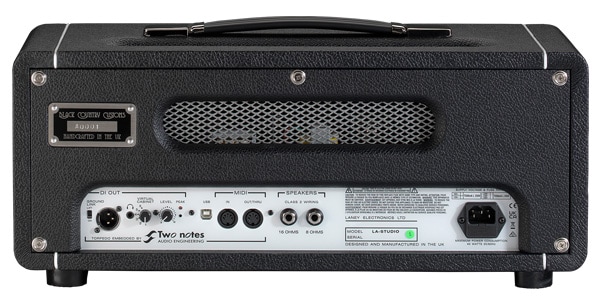

Outputs: 1x16 Ohm & 1 x8 Ohm speaker outputs
MIDI Out/Thru 5 pin DIN.
Phones Out Stereo 3.5mm
Balanced DI Out, Male XLR (With Two Notes emulation), and Ground Lift switch.

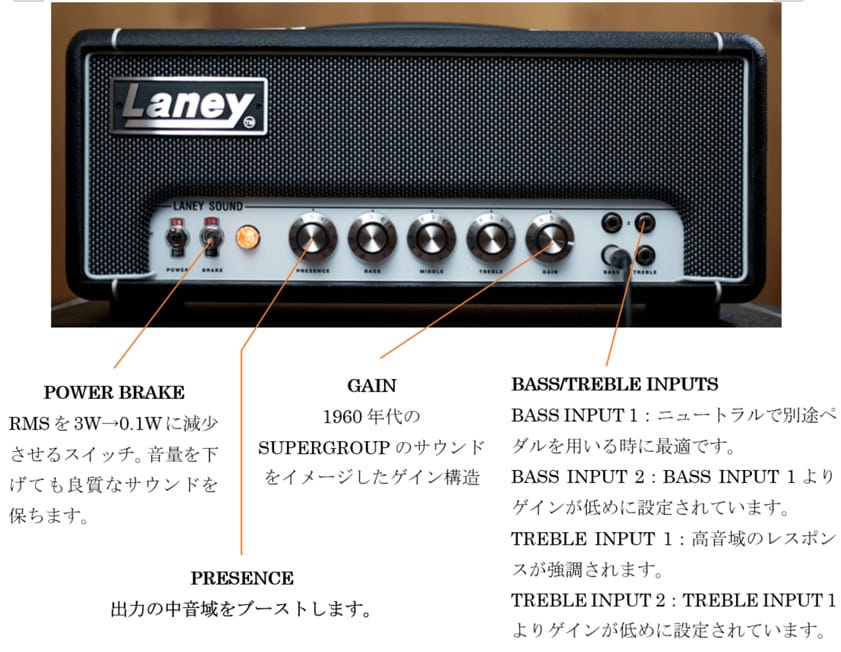

Controls: Bass, Middle, Treble, Presence, Gain, Power Switch, Brake Switch, Virtual cabinet 6W selector switch.
Indicator: Peak led for Two Notes.
Dimensions (HWD): 229x520x200mm, 9" x 20.5" x 7.9".
Weight: 7.8Kg, 17.2lbs
