CLASSIC PRO / CS203DCP30MINI

This is a high-quality listening set that includes the CLASSIC PRO CS203 high-quality speakers and the DCP30mini compact power amplifier.

■High-quality listening set
■Power amplifier: DCP30mini + Speaker: CS203

＜CS203＞

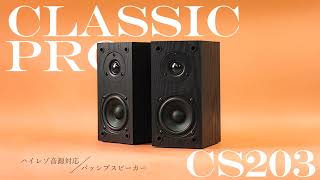

CLASSIC PRO CS203 is a small passive speaker that is ideal for playing music in small spaces such as offices, schools, cafes, and homes.

The stylish black wooden enclosure features a rear bass reflex port for rich bass reproduction. The 2-way system equipped with a high-quality unit provides clear and comfortable sound.

■Specifications
Type: 2-way rear bass reflex type
Driver unit
2cm tweeter
8.2cm woofer
Maximum input power (Mus/MAX): 10W / 30W
Impedance: 8Ω
Frequency response: 150Hz to 40kHz
Sensitivity: 80dB/W (1m)
Input terminal: Push terminal
Dimensions (WxHxD): 100x195x127mm
Weight: 0.98kg/1 piece
Accessories: Speaker cable 1.5mx2
■Pair

＜DCP30 mini＞
DCP30 mini is a compact stereo power amplifier equipped with a class D amplifier with a maximum output of 15W+15W. In addition to stereo mini and stereo RCA input terminals, it is equipped with a USB terminal that supports MP3 file music playback and audio-only Bluetooth receivers. It is ideal for playing sound sources such as computers, TVs, and portable music players. Various cables are included, so you can connect it to your device or passive speaker and enjoy it immediately.


■A compact stereo power amplifier equipped with a class D amplifier with a maximum output of 15W + 15W
■Ideal for playing audio sources such as computers, TVs, and music players
■Simple volume control only
■Input is equipped with stereo mini and stereo RCA terminals
■USB terminal compatible with MP3 music playback and audio-only Bluetooth receivers
■Stereo mini cable, dual RCA cable, speaker cable,
power adapter included


■Output: Rated 11.5W + 11.5W (8Ω), maximum 15W + 15W (8Ω)
■Compatible impedance: 4Ω to 8Ω
■Frequency range:
20 to 20kHz < ±1dB @ 10W output
20 to 20kHz. ±0.5dB @ 1W output
■S/N ratio: 85dB or more
■Input terminal: stereo mini, RCA (stereo mini takes priority in case of simultaneous input)
■Power supply: DC15V, center positive
■Power consumption: 31W (at 11.5W + 11.5W output)
■External dimensions: 135mm (W) x 30mm (H) x 78mm (D) *including protrusions
■Weight: 300g
■Accessories
Power adapter x 1 (power adapter cable: 1.5m, power cable: 1.2m)
Speaker cable (1.5m) x 2
Stereo mini cable (0.8m) x 1
Dual RCA cable (1.5m) x 1
