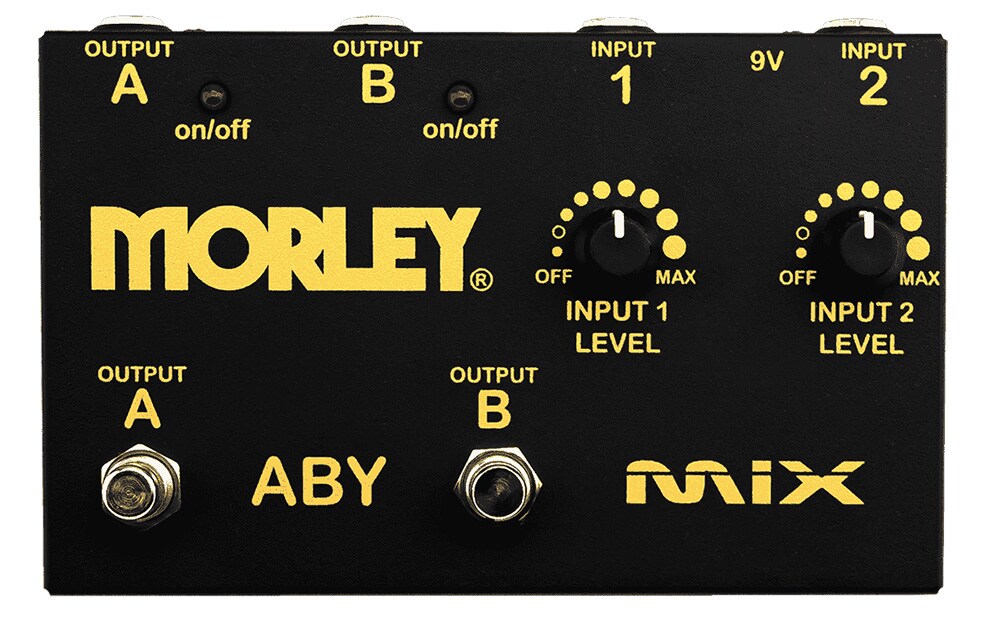

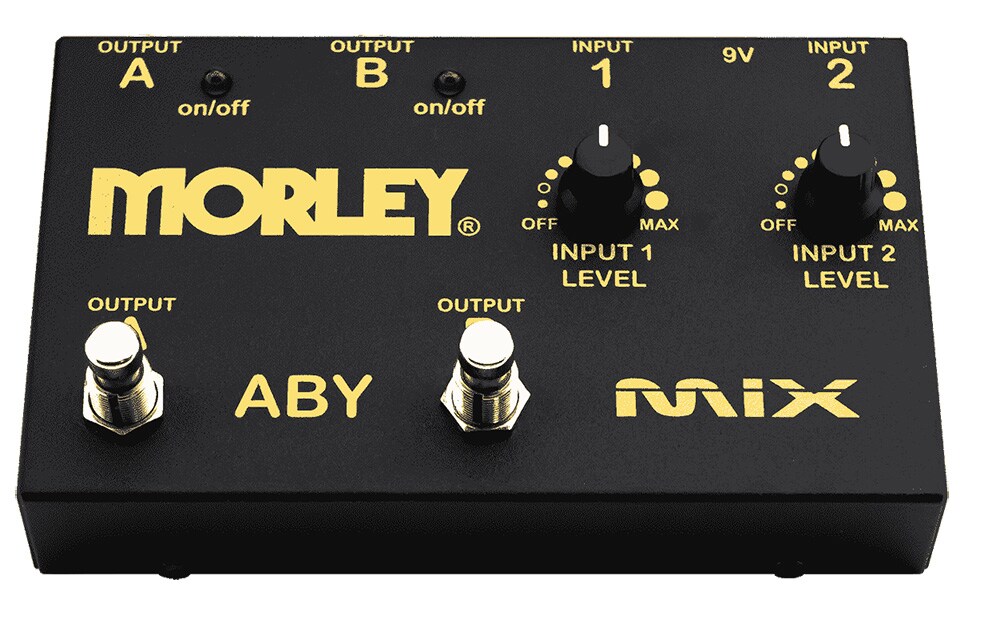

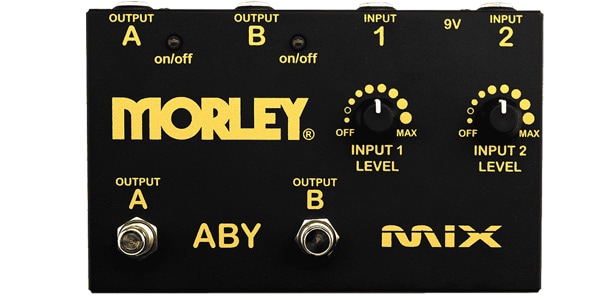

MORLEY / ABY MIX Gold (ABY MIX-G)

ABY MIX is a mixer function added to each input of ABY. Works as a 2-in/2-out line selector/mixer. Like ABY, you can use two guitars to play one amp, or you can mix two instruments and level two amps one by one or at the same time. The mix function allows you to use instruments with different output levels at the same time.

■ Specifications
・Two inputs are output to each of two outputs, each output is equipped with a bypass switch
・Each input has an independent level control (up to 15dB)
・Display of active output by LED
・Equipped with a buffer circuit to prevent signal deterioration
・Robust steel housing manufactured by cold roll (cold rolling) manufacturing method
・Power supply: 9V battery or 9V adapter (9V center minus)*
・Current consumption: 2 mA (when driving LED)
・External dimensions: 168.4 mm × 111.3 mm × 50.8 mm (L × W × H)
・Body weight (excluding batteries): 582 g
