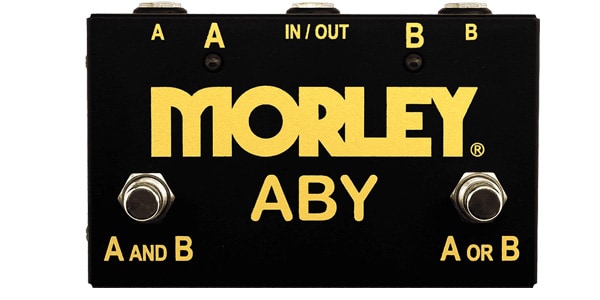

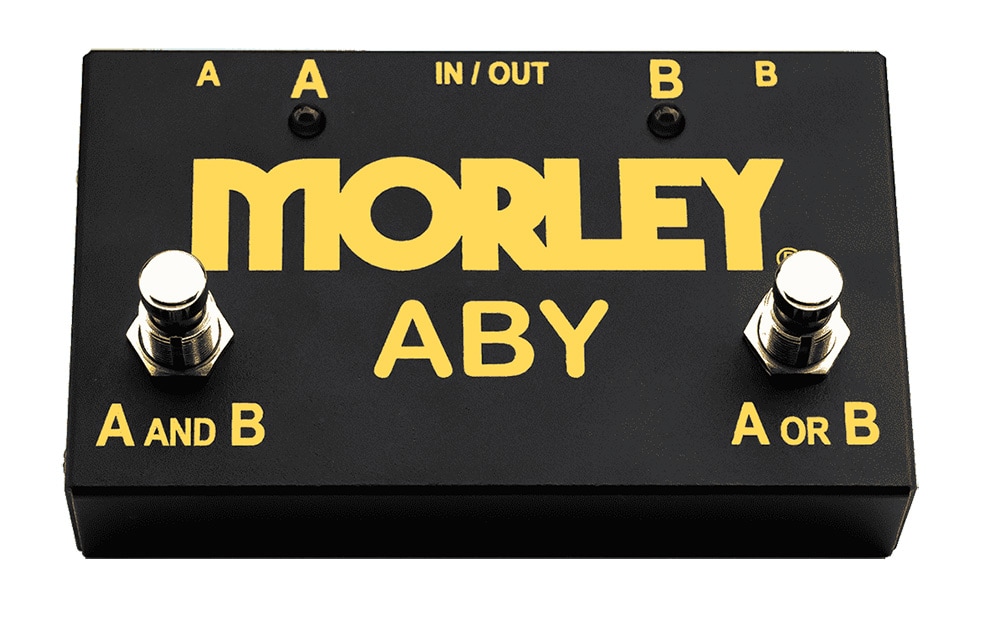

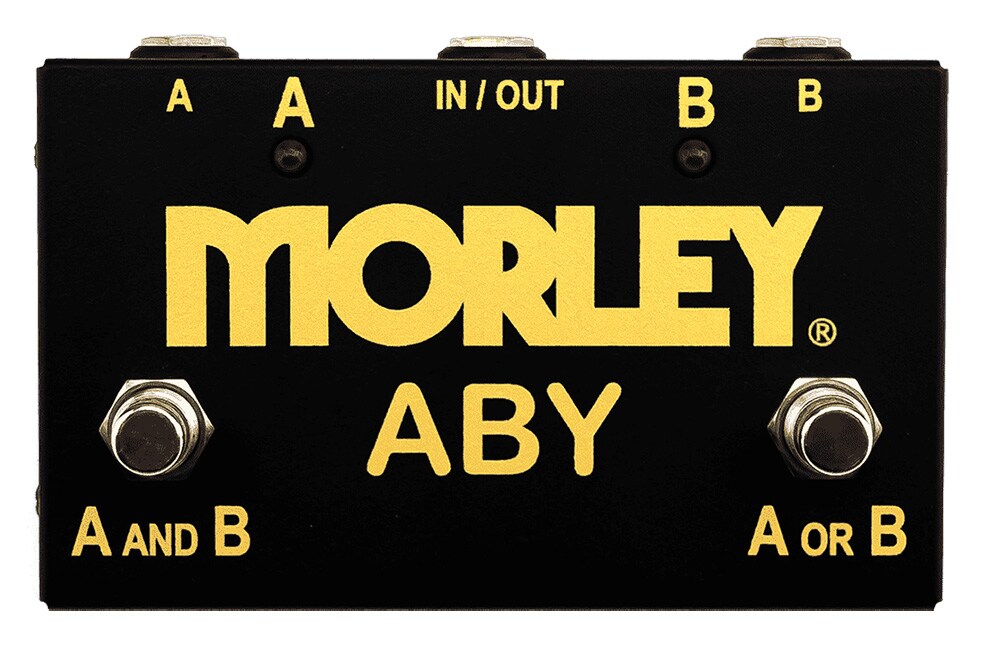

MORLEY / ABY Gold (ABY-G)

Despite its simple structure, ABY continues to be a super long-seller as a selector switch that can be used in a variety of situations. This time, it has been upgraded as a gold series. For example, you can share one amplifier with two guitars, or conversely, you can easily use one guitar with two amplifiers. In addition, it is a complete passive specification.

■ Specifications
- Works as a selector/combiner from one input to two outputs, or from two inputs to one output
・Display of active channel by LED
・True Bypass
・Passive design that does not require a power supply (power supply required if LED display is required)
・Robust steel housing manufactured by cold roll (cold rolling) manufacturing method
・Power supply: 9V battery or 9V adapter (9V center minus)*
・Current consumption: 2 mA (when driving LED)
・External dimensions: 133.4 mm × 82.6 mm × 50.8 mm (L × W × H)
・Body weight (excluding batteries): 346 g
