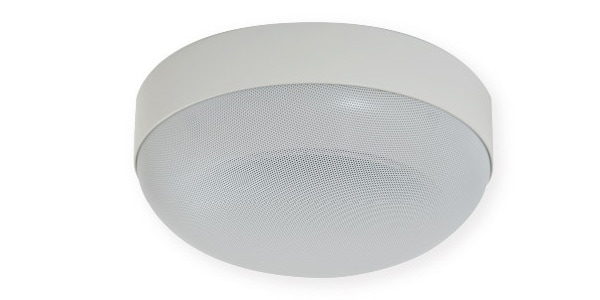

MASSIVE / OE-R160/HAT

MASSIVE 160mm full-range speaker (high impedance + attenuator). Compact and boasts excellent sound quality with reduced sound leakage. Ideal for convenience stores that are open late at night.

160mm full-range speaker (high impedance + attenuator)
Compact and boasts excellent sound quality while minimizing sound leakage.
Perfect for late-night convenience stores.
One-touch installation is extremely easy.

*Please contact an installation company for installation work.

[Main specifications]
Speaker: 160mm full-range speaker
Rated input: 1W
Nominal impedance: 10kΩ (1W)
Output sound pressure: 92dB (1W/1m)
Playback frequency band: 158Hz-14kHz
Operating temperature range: -10℃-+50℃

[Housing]
External dimensions (W×H×D): φ230×89(D)mm
Weight: 890g
Body material: ABS resin
Net: Round punching (plating + painting)
Finish color: Ivory (approximate Munsell 9.9Y8.7/0.75)
Accessories: bracket, mounting screws, instruction manual

[Notes]
Optimal installation position: Convenience stores, 24-hour supermarkets, rental video stores, and other stores and facilities with residential floors above.
