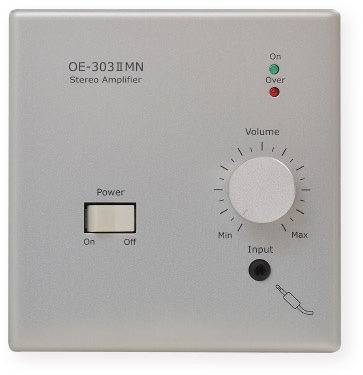

MASSIVE / OE-303IIMN

MASSIVE wall-mounted stereo power amplifier. It features a simple design.

Wall embedded stereo power amplifier (only for low impedance)
For creating interiors that aim to differentiate from others such as hotels, inns, and hot springs,
The volume knob uses solid wood for a luxurious feel.

* For installation work, please ask the installer by yourself.

[Main specifications]
Power supply voltage: AC100V 50/60Hz
Maximum output: 3W+3W (6Ω load)
Input sensitivity and input impedance: CD/MD 55mV 47Ω line 55mV 10kΩ (preset VR built-in)
Frequency response: 70Hz-24kHz
Output load impedance: 6Ω~8Ω
Power consumption: 5W
S/N ratio: 60dB or more

[Case]
External dimensions (W x H x D): 116 x 120 x 70mm
Mass: 300g
Box used: Switch box for 2 pieces (depth 45 mm or more) SBY-W equivalent product manufactured by Mirai Industry Co., Ltd.

【remarks】
Best position: hotel, inn living room dressing room, etc.
