MASSIVE / OE-303III

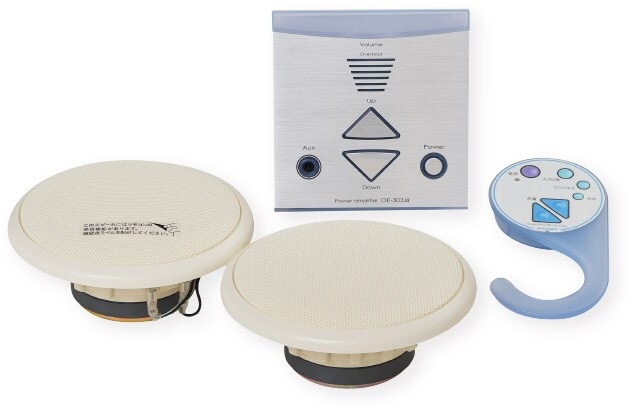

An audio system that includes two MASSIVE waterproof speakers, a wall-mounted amplifier, and a remote controller.

Audio system (for low impedance only)
Point the handheld remote control at the speaker and it will beep!
You can control the volume, mute, input switching, and more from inside the bathroom.

This product (speaker) has passed the following tests.
●Waterproof test: JIS C 0920 rainproof type applied
●Mold resistance test: JIS Z 2911 applied
●Mold remover and bathroom cleaner test
Speaker accessories: Tapping 4x20 bind SUS 4 pieces, template (for drilling 95mm holes)

*Please ask an installation company to carry out the installation work yourself.

[Main specifications (speaker)]

Speaker: 100mm full-range waterproof speaker

Rated input: 10W (maximum input 20W)

Nominal impedance: 6Ω (10W)

Output sound pressure (sensitivity): 84dB (1W/1m)

Playback frequency band: 90Hz-18kHz

[Housing]

External dimensions (W×H×D): Φ135×18(D)mm (grill)

Weight: 540g

Body material: Heat-resistant special ABS resin

Grill material: Anti-mold treated ABS resin

Finish color: Ivory

[Main specifications (amplifier)]

Power supply voltage: AC100V 50/60Hz

Maximum output: 0.84W+0.84W/6Ω

Input sensitivity and input impedance: Line: 300mV AUX:190mV Line: 20kΩ AUX:100Ω

Frequency response: 60Hz - 18kHz

Output load impedance: 6Ω - 16Ω

Power consumption: 3.17W (as stated in accordance with the Electrical Appliance and Material Safety Act)

[Housing]

External dimensions (W x H x D): 116 x 120 x 58mm

Weight: 320g

[Notes]

Best position: Install in a two-unit switch box in a private room, living room, washroom, store, etc.
