MASSIVE / OE-253AT

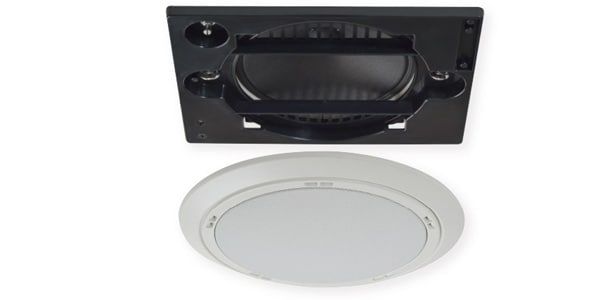

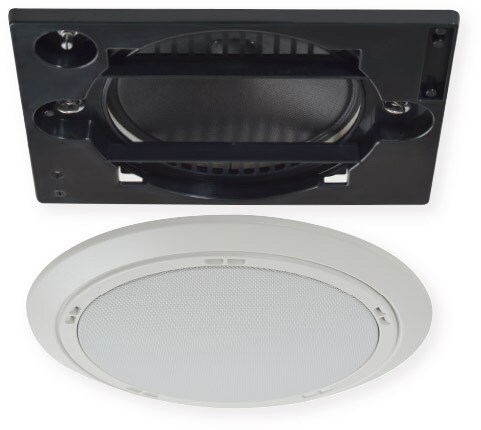

MASSIVE 160mm full-range speaker (low impedance + attenuator included). Full-range speaker. Smart grill design, made of expanded metal. The jersey net-like metal net has a three-layer finish of plating + primer + paint, making it rust-resistant and dirt-resistant.

160mm full-range speaker (low impedance + attenuator)
Full-range speaker.
Smart grill design, made of expanded metal.

The jersey net-like metal net has a three-layer finish of plating + primer + paint, making it rust-resistant and less noticeable when dirty.

Equipped with a feed terminal for one-touch wiring, making installation easy.

*Please ask an installation company to perform the installation work yourself.

[Main specifications]
Speaker: 160mm full-range speaker
Rated input: 5W (maximum 8W)
Nominal impedance: 8Ω+8Ω
Output sound pressure: 85dB (1W/1m)
Playback frequency band: 80Hz-18kHz
Operating temperature range: -10℃-+50℃

[Housing]
External dimensions (W×H×D): Main unit: 230×178×77mm Grill: φ230×14(D)mm
Weight: 550g (main unit) + 160g (grill)
Main unit material: ABS resin
Grill frame: ABS resin
Net: Lath metal punching (plating + primer + paint)
Finish color: Ivory (approximate Munsell 9.9Y8.7/0.75)

[Notes]
Optimal installation position: BGM and in-house broadcasting equipment for hotels, office buildings, and apartment buildings.
Broadcasting equipment for public facilities such as stations, airports, theme parks, schools, and cultural centers.
