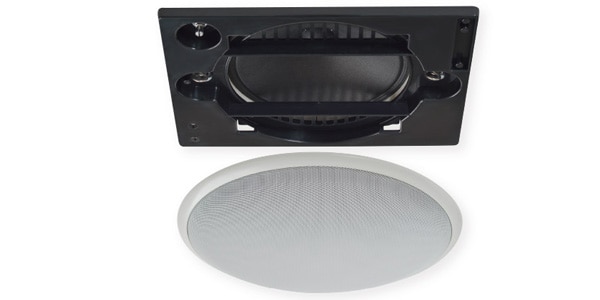

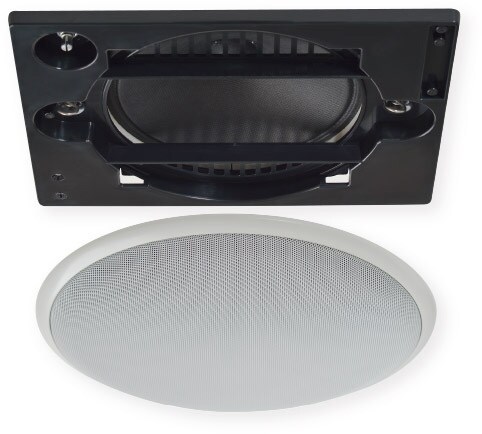

MASSIVE / OE-233MAT

MASSIVE 160mm full-range speaker (high impedance + attenuator included). The jersey net-like metal net has a three-layer finish of plating + primer + paint, making it rust-resistant and dirt-resistant.

160mm full-range speaker (high impedance + attenuator)
Standard ceiling-embedded type.
Full-range speaker at a low price.
The jersey-net-style metal net has a three-layer finish of plating + primer + paint, making it rust-resistant and less noticeable when dirty.
Equipped with a feed terminal for one-touch wiring, making installation easy.
*Please ask an installation company to carry out the installation work yourself.
[Main specifications]
Speaker: 160mm full-range speaker
Rated input: 1W
Nominal impedance: 10kΩ (1W)
Output sound pressure: 91dB (1W/1m)
Playback frequency band: 80Hz-18kHz
Operating temperature range: -10℃-+50℃

[Housing]
External dimensions (W×H×D): Main unit: 230×178×77mm Grill: φ230×13(D)mm
Weight: 700g (main unit) +150g (grill)
Main unit material: ABS resin
Grill frame: ABS resin
Net: Lath metal punching (plating + primer + paint)
Finish color: Ivory (approximate Munsell 9.9Y8.7/0.75)

[Notes]
Optimal installation position: BGM and in-house broadcasting equipment for hotels, office buildings, and apartment buildings.
Broadcasting equipment for public facilities such as stations, airports, theme parks, schools, and cultural centers.
