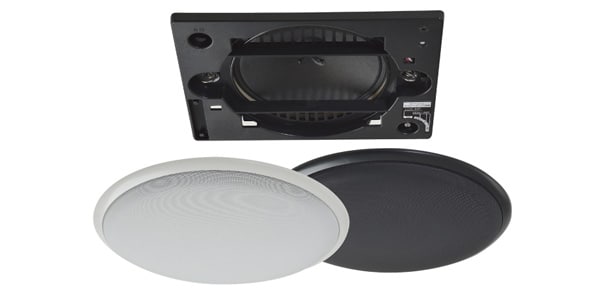

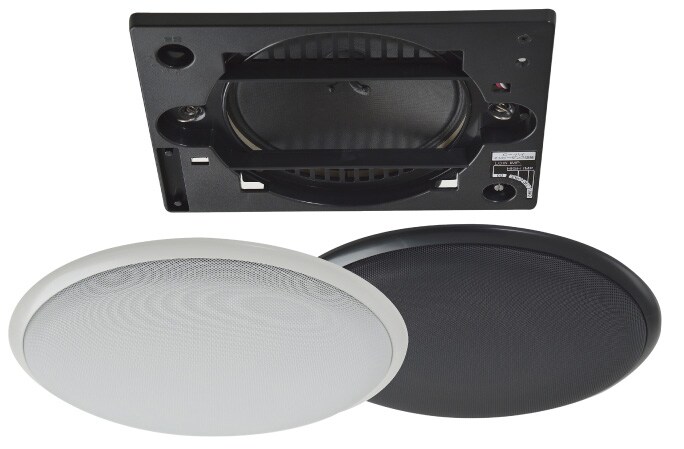

MASSIVE / OE-233II(B)

MASSIVE 160mm full-range speaker (low/high impedance switchable type). The jersey-like metal net has a three-layer finish of plating + primer + paint, making it rust-resistant and dirt-resistant.

160mm full-range speaker (low/high impedance switchable)
The standard full-range speaker
is now Lo/Hi switchable.

The jersey net-like metal net has a three-layer finish of plating + primer + paint, making it rust-resistant and less noticeable when dirty.

Equipped with a feed terminal for one-touch wiring, making installation easy.

*Please ask an installation company to carry out the installation work yourself.

[Main specifications]
Speaker: 160mm full-range speaker
Rated input: 5W (maximum 8W)
Nominal impedance: 8Ω (5W) / 3.3kΩ (3W), 5kΩ (2W), 10kΩ (1W)
Output sound pressure: 91dB (1W/1m)
Frequency range: 80Hz - 18kHz
Operating temperature range: -10℃ - +50℃

[Housing]
External dimensions (W x H x D): 232 x 178 x 77mm Grill: φ230 x 13 (D) mm
Weight: 650g (main body) + 150g (grill)
Main body material: ABS resin
Grill frame: ABS resin
Net: Lath metal punching (plating + primer + paint)
Finish color: Black (B)

[Notes]
Optimal installation position: BGM and in-house broadcasting equipment for hotels, office buildings, and apartment buildings. Broadcasting equipment for public facilities such as stations, airports, theme parks, schools, and cultural centers.
