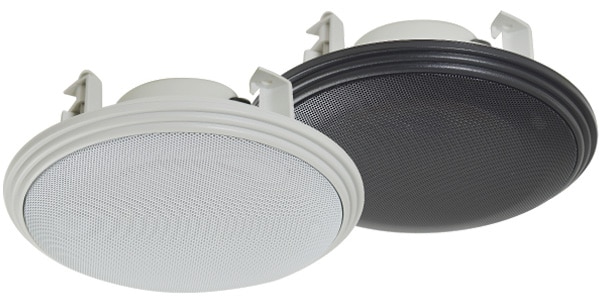

MASSIVE / OE-180TII(B)

MASSIVE 100mm full-range speaker. High impedance. Perfect for the music scene. Available in black.

100mm full-range speaker (high impedance)
Best-selling compact type. High-quality sound, perfect for music scenes.
Easy installation with ceiling-mounted adjuster.

*Please contact an installation company for installation work.

[Main specifications]
Speaker: 100mm full-range speaker
Rated input: 3W
Nominal impedance: 3.3kΩ (3W)/5kΩ (2W)/10kΩ (1W)
Output sound pressure: 88dB (1W/1m)
Playback frequency band: 80Hz-20kHz
Operating temperature range: -10℃-+50℃

[Housing]
External dimensions (W×H×D): φ180×(18+50)mm
Weight: 780g
Body material: ABS resin
Grill frame: Anti-mold treated ABS resin
Net: Round aluminum punching (etched + primer + paint)
Finish color: Black (B)

[Notes]
Optimal installation position: Restaurants, cafes, snack bars, and other eating and drinking establishments.
BGM and in-house broadcasting equipment for hotels, office buildings, and apartment complexes.
