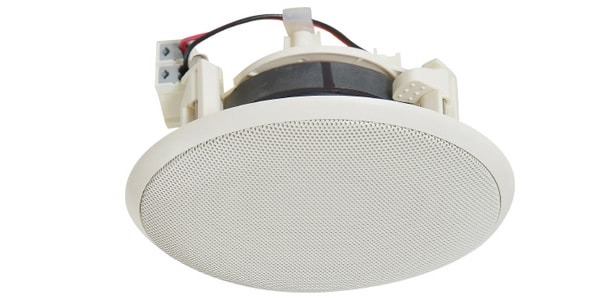

MASSIVE / CL-H133WR

MASSIVE 77mm full-range waterproof speaker. Suitable for use in washrooms and bathrooms. High impedance.

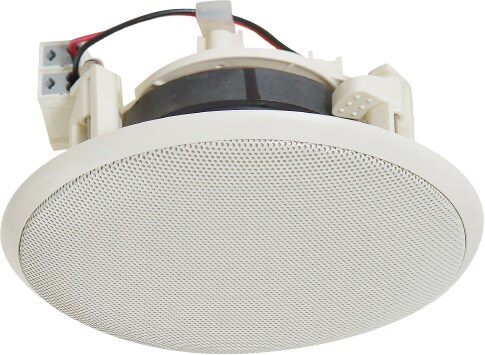

77mm full-range waterproof speaker (high impedance)

Improved airtightness.

Comfortable acoustics for spaces that require greater cleanliness.

This product complies with the following tests.

●Waterproof test: JIS C 0920 rainproof type applied

●Salt spray test: JIS K 5600?7?1 applied

●Mold resistance test: JIS Z 2911 applied

●Bathroom detergent and mold remover test

SUS304 2B is used for the frame of the speaker unit

The net is a three-layer finish of aluminum round punching, etching treatment + primer + mold-resistant paint. It will stay beautiful and clean forever.

*Please ask an installation company to perform the installation work yourself.

[Main specifications]
Speaker: 77mm full-range waterproof speaker
Rated input: 3W
Nominal impedance: 3.3kΩ (3W) / 5kΩ (2W) / 10kΩ (1W)
Output sound pressure: 85dB (1W/1m)
Playback frequency band: 150Hz - 20kHz
Operating temperature range: -10℃ - +50℃

[Housing]
Weight: 560g
Body material: ABS resin
Grill frame: Anti-mold treated ultra-heat resistant ABS resin
Net: Round aluminum punching (etching treatment + primer + anti-mold coating)
Finish color: Ivory (approximately Munsell 9.9Y8.7/0.75)

[Notes]
Optimal installation position: Home and hotel washrooms, bath/shower rooms. Home and store kitchens.
