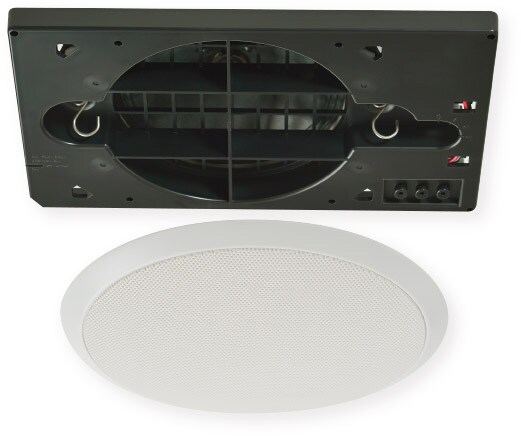

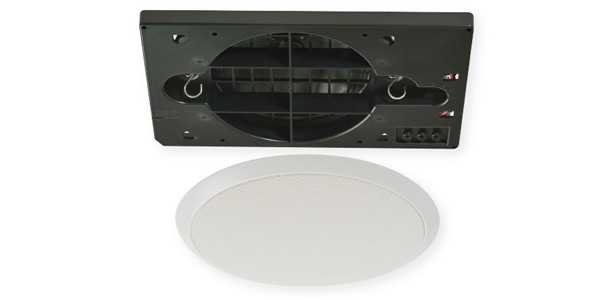

MASSIVE / CL-H120RNAT

MASSIVE 120mm full-range speaker. With attenuator. High impedance.

120mm full-range speaker (high impedance + attenuator)
Grill: Made of ABS resin, achieving low price and high quality.

Equipped with a feed terminal for one-touch wiring, making installation easy.

*Please ask an installation company to perform the installation work yourself.

[Main specifications]
Speaker: 120mm full-range speaker
Rated input: 1W
Nominal impedance: 10kΩ (1W)
Output sound pressure: 91dB (1W/1m)
Playback frequency band: 166Hz - 20kHz
Operating temperature range: -10℃ - +50℃

[Housing]
External dimensions (W x H x D): Main unit: 215 x 134 x 63.5mm, Grill: φ180 x 14 (D) mm
Weight: 550g (main unit) + 70g (grill)
Main unit material: ABS resin
Grill frame: ABS resin
Net: ABS resin
Finish color: Ivory (approximate Munsell 9.9Y8.7/0.75)

[Notes]
Optimal installation position: BGM and in-house broadcasting equipment for hotels, office buildings, and apartment buildings.
Broadcasting equipment for public facilities such as stations, airports, theme parks, schools, and cultural centers.
