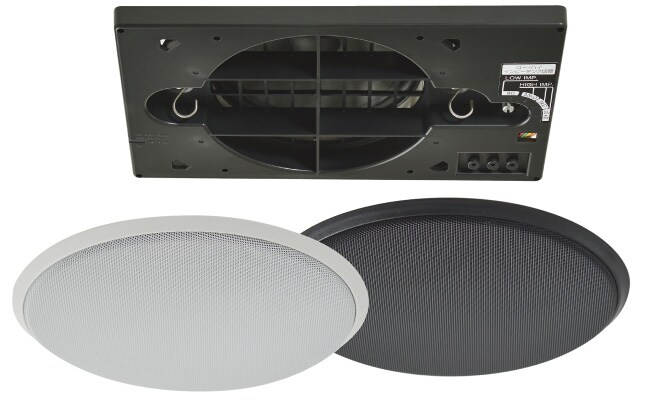

MASSIVE / CL-523II(B)

MASSIVE 120mm full-range speaker. Newly designed for music playback, it provides a sound field that is comfortable to listen to. Available in black.

120mm full-range speaker (low/high impedance switchable)

Newly designed for music playback,
it provides a high-quality sound field that won't tire your ears.

Lo/Hi switchable.

The jersey-net-like metal net has a three-layer finish of plating, primer, and paint, making it rust-resistant and less noticeable when dirty.

Equipped with a feed terminal for one-touch wiring, making installation easy.

*Please ask an installation company to carry out the installation work yourself.

[Main specifications]
Speaker: 120mm full-range speaker
Rated input: 10W (maximum 20W)
Nominal impedance: 8Ω (10W)/3.3kΩ (3W), 5KΩ (2W), 10kΩ (1W)
Output sound pressure: 85dB (1W/1m)
Frequency range: 90Hz-18kHz
Operating temperature range: -10℃-+50℃

[Housing]
External dimensions (W×H×D): Main unit: 215×134×71.5mm, Grill: φ180×8.8(D)mm
Weight: Weight 700g (main unit) + 110g (grill)
Main unit material: ABS resin
Grill frame: ABS resin
Net: Lath metal punching (plating + primer + paint)
Finish color: Black (B)

[Notes]
Optimal installation position: Stores, relaxation spaces, etc.
