audio technica / AT2020NOTEPAD5SET1

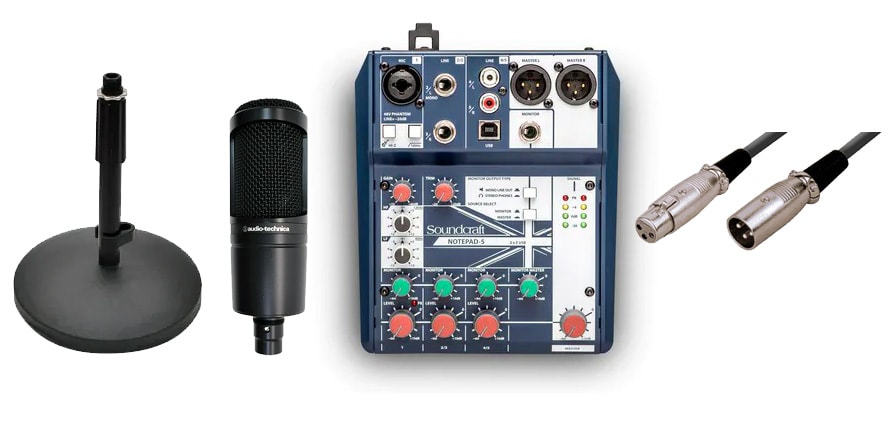

This is a set designed for streaming that includes the high-quality condenser microphone audio technica/AT2020 and the small mixer Soundcraft/Notepad-5.

■Streaming set

Condenser microphone: audio technica AT2020
Analog mixer: Soundcraft Notepad-5
Microphone cable, CLASSIC PRO MIX010
Tabletop microphone stand: CLASSIC PRO MSD3

The AT2020 is a hugely popular entry-level condenser microphone. With a wide range of frequency characteristics and a high input resistance design, it is suitable for a variety of scenes, including vocal recording, podcasts, and video distribution.

■Condenser microphone, side address
■Directivity: unidirectional
■Frequency response: 20Hz-20kHz
■Output impedance: 100Ω
■Sensitivity: -37 dB
■Maximum SPL: 144dB
■S/N ratio: 74dB
■Power supply: phantom power 48V
■Connector: XLR 3-pin (male)
■Size and weight: diameter 52mm, length 162mm, 345g
■Accessories: dedicated stand mount, microphone pouch, conversion screw (5/8 to 3/8)

＜Notepad-5＞

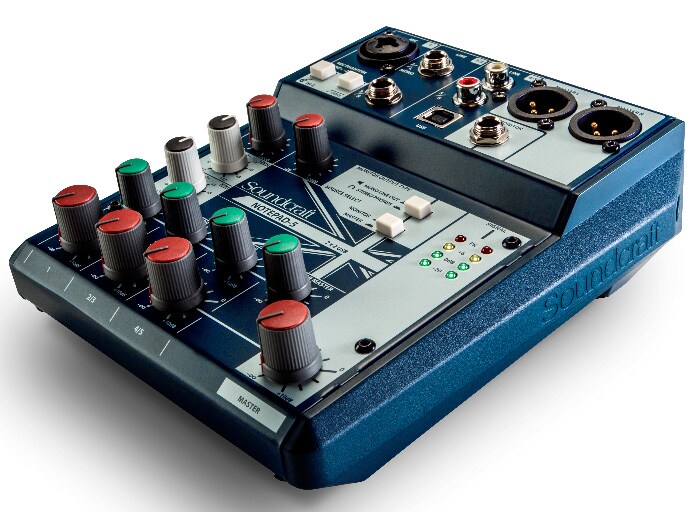

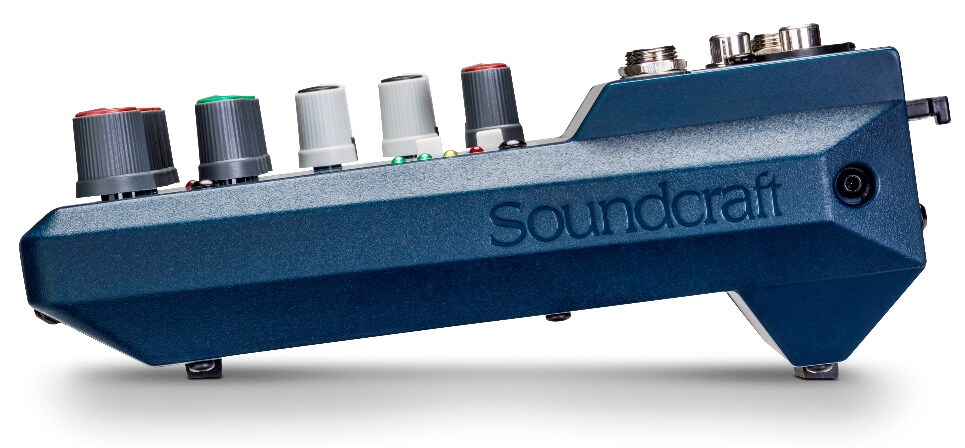

The Soundcraft Notepad-5 is equipped with professional-grade analog components and a USB audio interface. It is a desktop-sized analog mixer that is ideal for use in conjunction with Mac or PC editing software.

■Type: Analog Mixer
■Number of Mono Channels: 1
■Number of Stereo Channels: 2
■EQ: 2-band (mono ch only)
■AUX: -
■Group (Bus): -
■Digital Effects: -
■Dimensions (W x H x D): 203 x 82 x 230 mm
■Weight: 0.9 kg

■USB Audio Interface
・USB Audio Input/Output: 16-bit, 24-bit
・Sampling Frequency: 44.1/48 kHz
■Seamless Integration with Mac and PC
The built-in USB audio interface allows you to easily record, edit, and play projects using audio software.

■Comfortable Operation
Equipped with 2-band EQ on mono channels. Listening levels can be comfortably adjusted with the rotary type headphone control. Master level with LED meter provides precise control of the master output signal. Designed for home studios, rehearsals, live performances, and podcast production, the Notepad series is easy to use even for first-time mixers.

■Ideal for rehearsals and gigs
The compact Notepad-5 fits easily into a gig bag, making it perfect for taking to sessions and rehearsals. Designed to connect your favorite instruments and equipment, including microphones, guitars, and keyboards. Available in three models (Notepad-5, 8FX, and 12FX), it's perfect for anything from playing and singing to small rock ensembles.

■All-in-one podcasting
The combination of high-quality Soundcraft components and a built-in USB audio interface provides the ideal podcasting workflow. Of course, there's no compromise on sound quality.

■Works seamlessly with Mac and PC
The Notepad's built-in USB audio interface makes it easy to record, edit, and play back your projects using your favorite audio software. It fuses analog and digital at a high level.
*PC requires the installation of Soundcraft drivers.

■Features
-Equipped with one professional-level Soundcraft microphone preamp
-USB audio interface
-Metal enclosure
-XLR main out terminal
-4-segment LED meter
-2-band EQ (mono channel)
-Compact enough to fit in a gig bag

＜MIX010＞
CLASSIC PRO microphone cable produced by Sound House, designed to achieve the best cost performance. The 7mm diameter cable uses a metal connector to achieve both ease of use and durability.

■Type: Microphone cable

■Plug shape: XLR (male) - XLR (female)

■Length: 1m

■Color: Black

＜DTMS＞

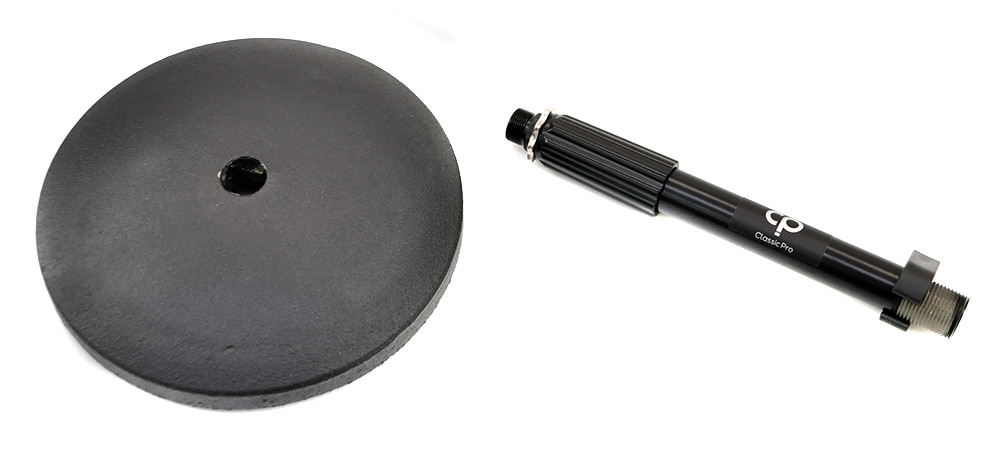

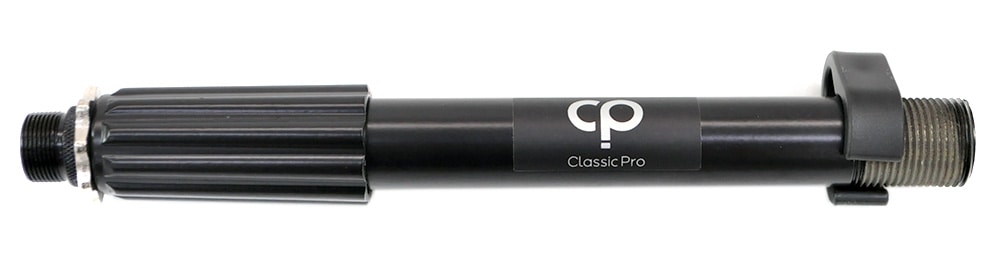

The ultimate tabletop microphone stand with a circular base! It has a solid weight and is stable.

■Tabletop microphone stand

■Height: 230-355mm

■Base diameter: 180mm

■Weight: 1.8kg

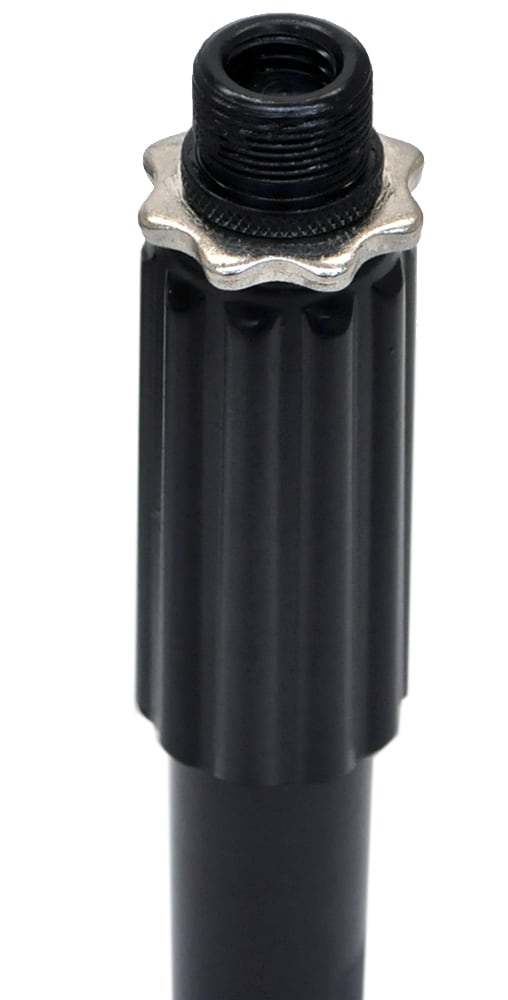

■Thread diameter: 3/8 inch with 5/8 inch conversion screw
