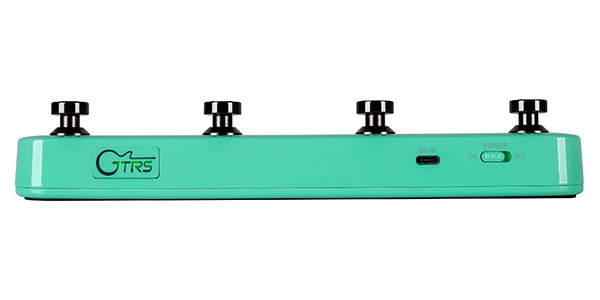

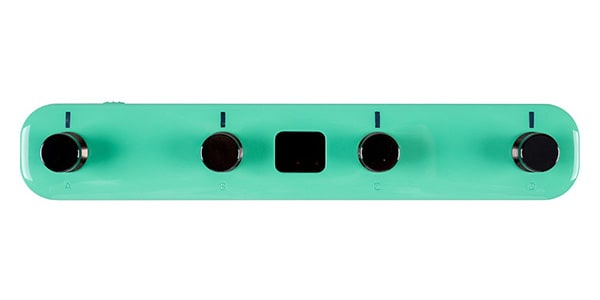

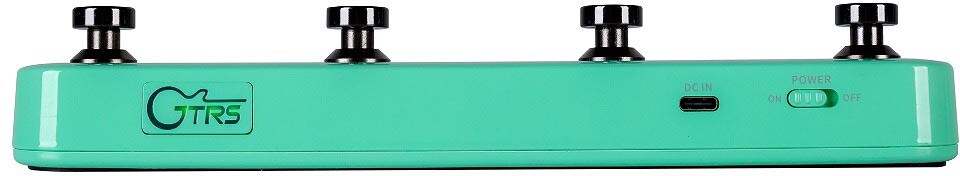

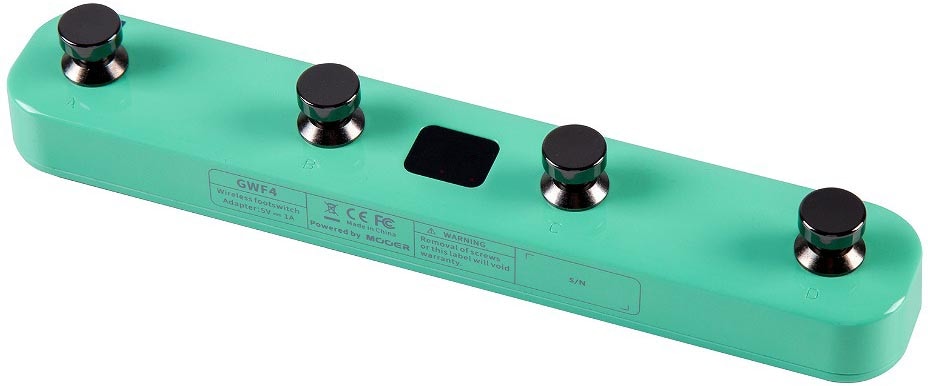

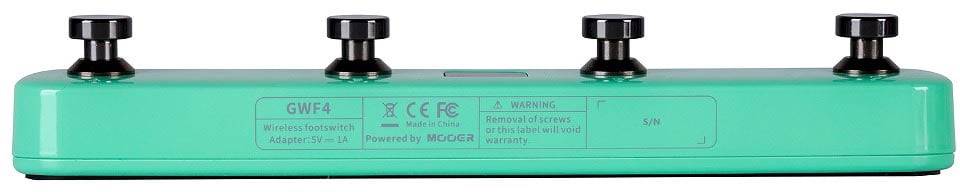

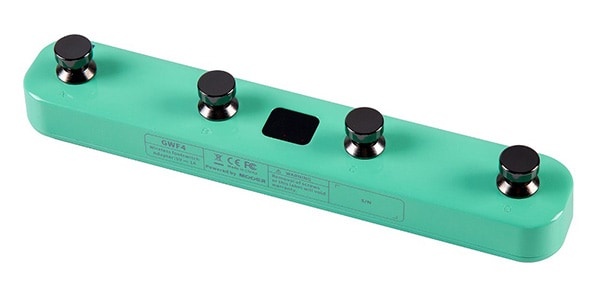

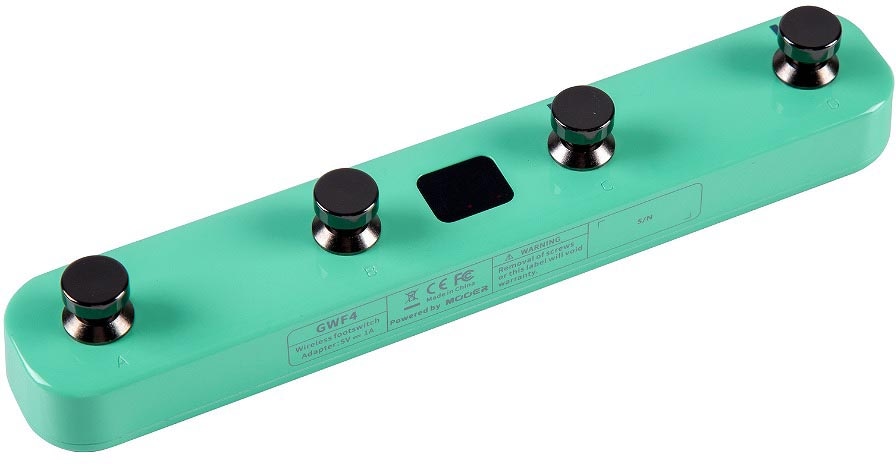

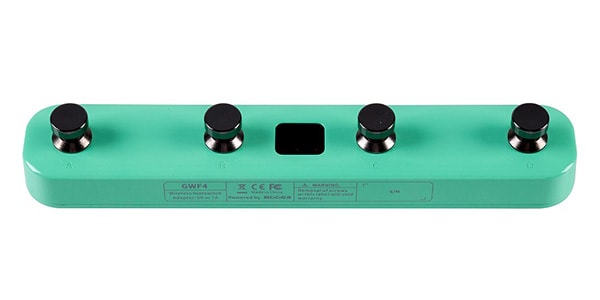

MOOER / GWF4 Green

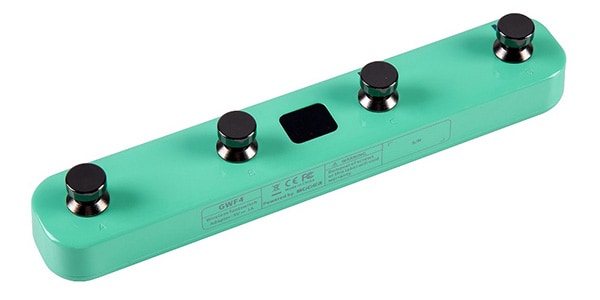

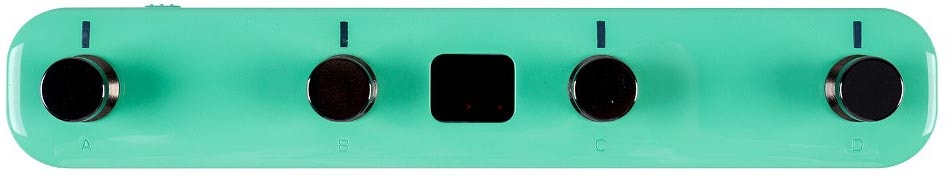

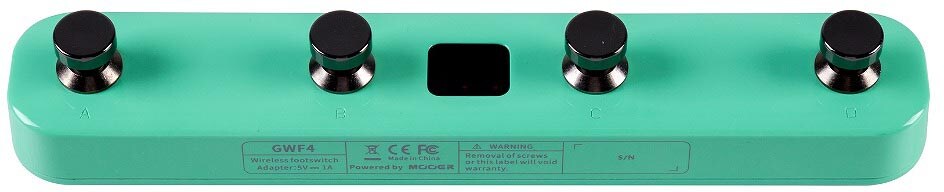

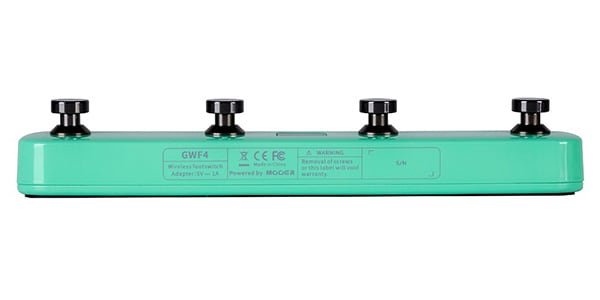

This wireless foot switch is designed for Mooer intelligent systems such as the GTRS guitar and Prime P1!

■ Wireless foot switch for GTRS guitar
■ Features
- 4ch foot switch for switching between GTRS guitar presets and effects
- Foot switch LED shows current status
- LED display shows selected preset name
■ Control mode 1
Preset bank change: Press foot switches A and B or C and D simultaneously to switch preset banks. When switching preset banks, the back number flashes, and you can select a preset in the bank by pressing the foot switch.
Pressing a preset: Pressing a foot switch changes the preset in the current bank. The LED for each foot switch shows the current preset, and the LED display shows the current preset name.
■ Control mode 2
Pressing foot switch A switches from preset 9D to 0A, and pressing foot switch B switches from preset 0A to 9D. The LED display shows the currently selected preset, and the foot switch LED turns OFF.
CTRL: Foot switches C and D function as CTRL. In this mode, the foot switch LED shows the effect status. If TAP control is assigned, the foot switch LED flashes when the foot switch is pressed once.
■Tuner
The tuner will start when you press and hold the control knob on the GTRS guitar or press the switch assigned to the tuner on the GWF4. In tuner mode, all footswitch LEDs are off and the LED display shows the current pitch. The pitch is displayed on the left side of the display. When the right display rotates clockwise, the current pitch is sharp, and when it rotates counterclockwise, it means the pitch is flat. When the right display stops rotating, the pitch is tuned to the correct pitch.
■Low battery alert: When the battery level is low, the footswitch LED will flash.
■The control mode of the GWF4 can be set from the GTRS App. Control mode 1 is the default.
iOS version app
Android version app

The GTRS App provides free tools to help you adjust the GTRS tone, live stream,
record, practice, and more.

Just connect your GTRS guitar via Bluetooth,
and you can set various presets and tone controls from the app,
and share presets from the cloud.

*Please check the manufacturer's website for the latest information.
