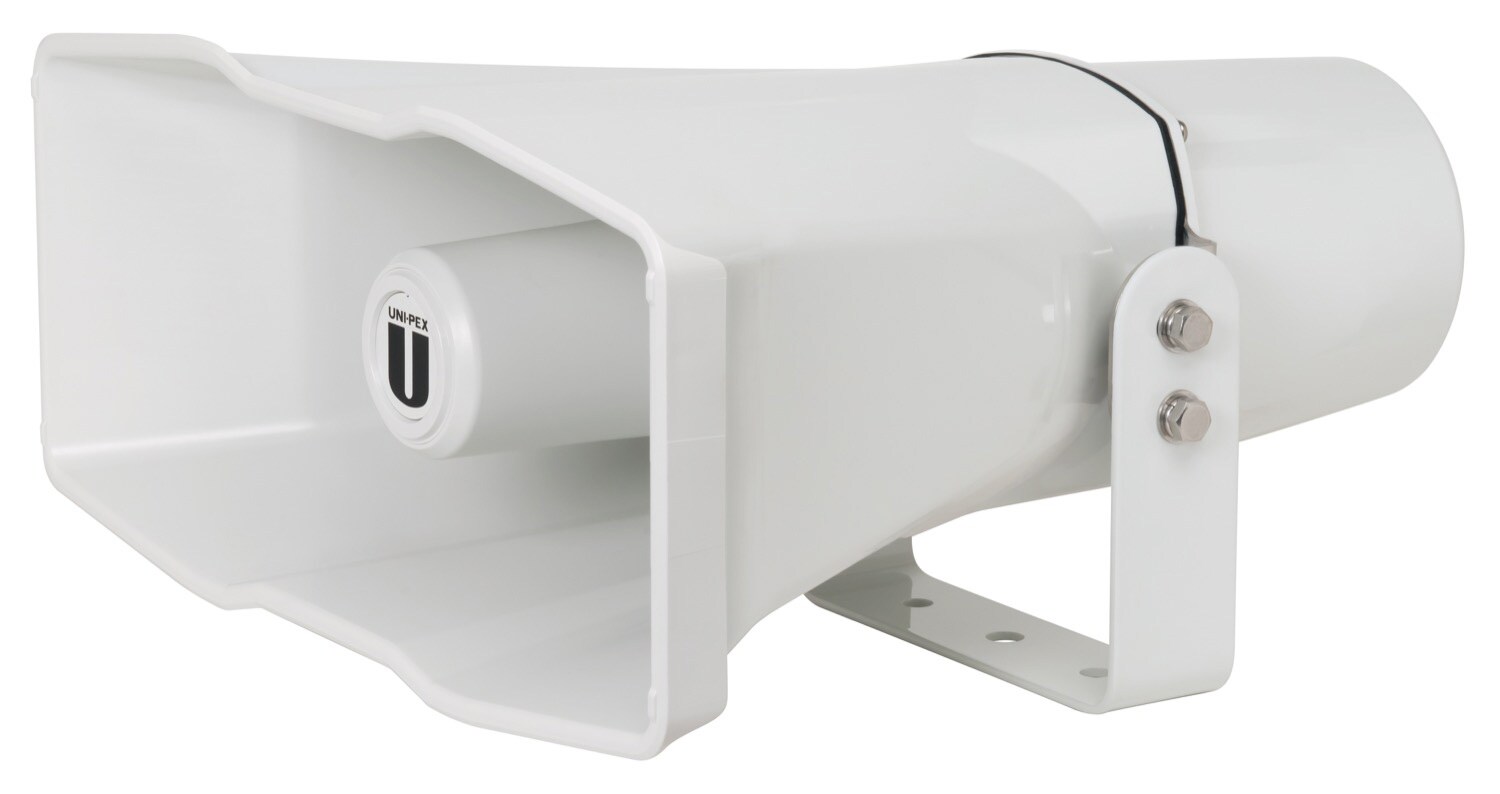

UNI-PEX / H-392 Separate car horn

The square horn is shorter than a circular horn of the same area, and reduces air resistance. The white color is ideal for election vehicles and public relations vehicles. The horn can be easily connected to an amplifier via a 2P metal outlet.

■Connection: JIS C 5504 Type 1 (φ34.925mm) x 1
■Exterior
Horn mouth (ASA resin): Munsell 5GY8.5/0.5 approximate color silver gray
Cover (ASA resin): Munsell 5GY8.5/0.5 approximate color silver gray
Bracket (SPHC): Munsell 5GY8.5/0.5 approximate color silver gray painted
Horn base (stainless steel)
■Mounting bracket: U-shaped bracket L-shaped
■Aperture dimensions: 390mm x 190mm
■Total length: 416mm (excluding protrusions)
■Low-frequency limit: 250Hz
■Compatible driver unit: Unipex driver unit with transformer and excluding P-15F
■Weight: Approximately 2.5kg (excluding accessories)
■Input mechanism: 2P metal outlet
■Operating temperature range: -10℃ to 55℃
■Applicable standards: Conforms to JIS C 5504 horn speakers
■Dust and water resistance: IPX5
■Accessories: Instruction manual (with warranty) x 1
