ICON DIGITAL / Qcon EX G2 dedicated expansion unit

iCON / Qcon EX G2 is a dedicated expansion unit for the main unit Qcon Pro G2 with controls for 8 channels. By adding this Qcon EX G2 to the Qcon Pro G2, you can build a large control surface with a total of 64 channels if you add 8 channels per unit and up to 7 units.

■ Expansion unit for exclusive use of Qcon Pro G2

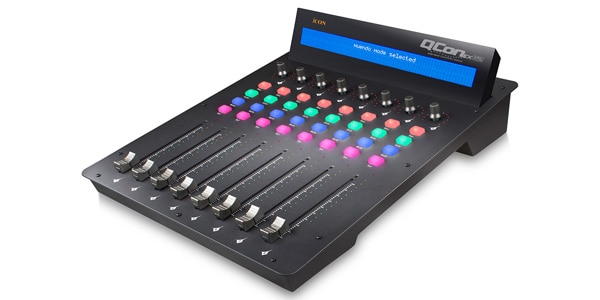

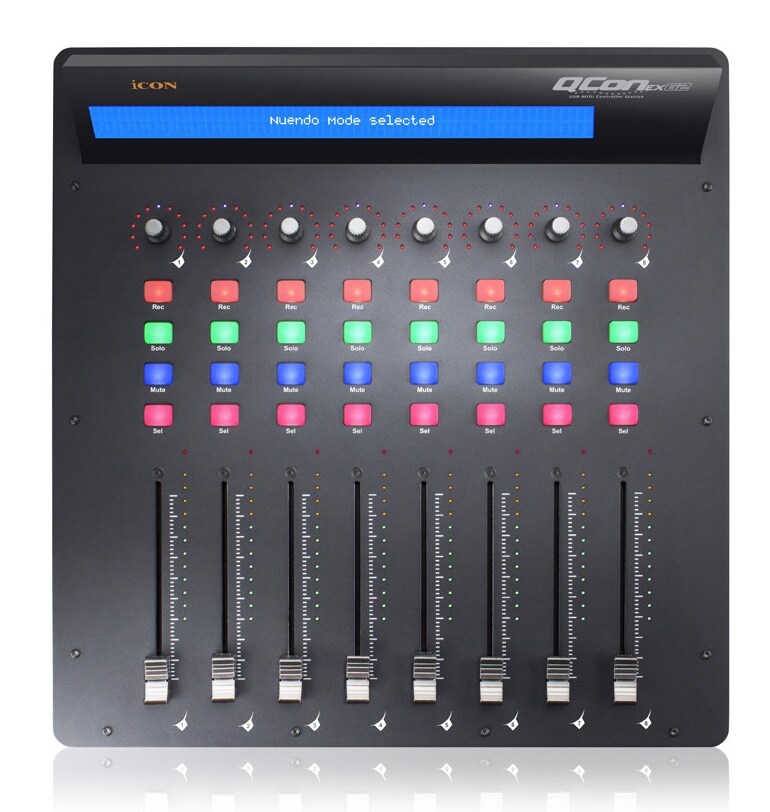

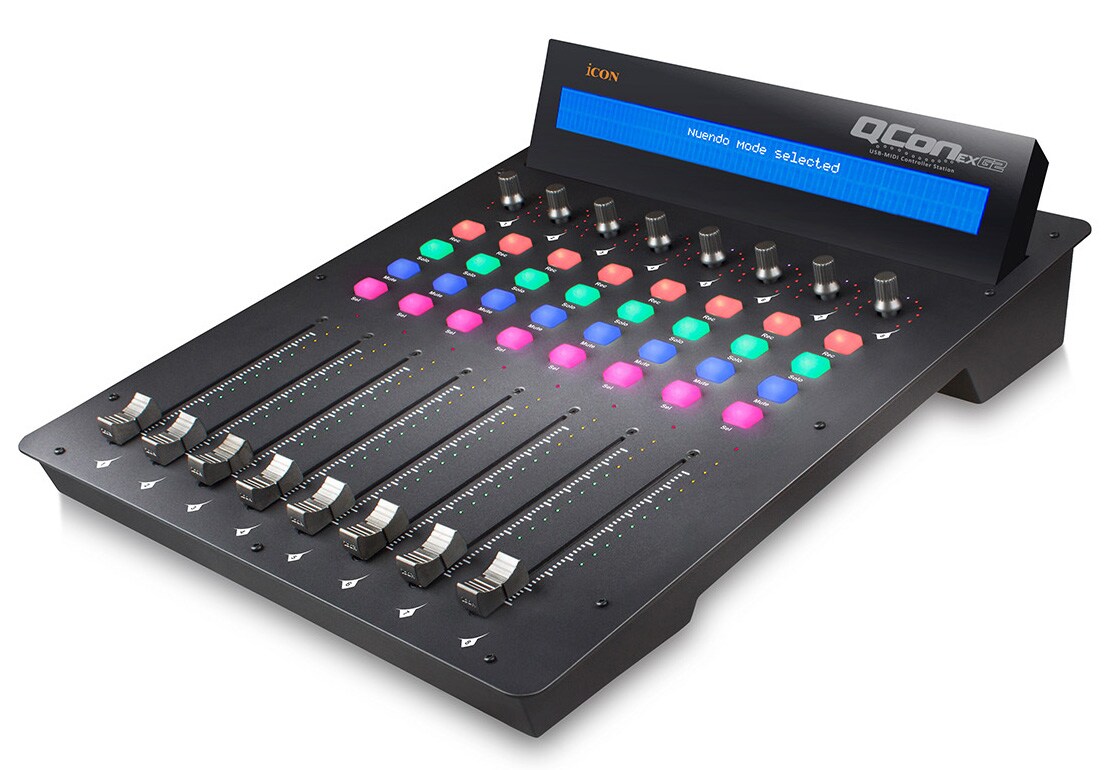

The Qcon EX G2 features eight touch-sensitive motor faders, eight dual-function encoders, mute, solo, select, and record arm buttons. A large, well-backed LCD display with excellent visibility shows the channel name and various control parameters for each channel.

Qcon EX G2 supports DAWs such as Cubase, Nuendo, Samplitude, Logic Pro, Studio One, Bitwig, Reason, and Ableton Live with the Mackie Control protocol, and Pro Tools with the Mackie HUI protocol.

■ Main specifications
・ Motor fader with touch sense
-Dual function (turn / push) rotary encoder mounted on each channel
・ Peripheral multi-color LED (Cubase) that indicates the rotation position of the knob mounted on each channel
・ Equipped with a backlit LCD LCD display
・ By using 7 Qcon EX G2 for Qcon Pro G2, it can be expanded up to 64 channels.
・ Cubase / Nuendo, Studio One, Digital Performer, Logic Pro X, Bitwig: Expandable to a total of 64 channels using up to 7 units
・ Ableton Live: Can be expanded to a total of 48 channels by using up to 5 units
-Pro Tools, Reaper, FL Studio: Expandable to a total of 32 channels using up to 3 units
・ Reason, Samplitude: Can be expanded to a total of 16 channels by using up to 1 unit

Built-in Mackie control protocol for Cubase, Nuendo, Samplitude, Logic Pro, Ableton Live, Reaper, Reason, Studio One, Bitwig
· Built-in Mackie HUI protocol for Pro Tools
-Comes with iMap software that allows you to easily map MIDI functions
· Robust housing with Kensington lockport
・ 12V / 2.5A power adapter included
・ USB 2.0 cable included
・ Includes Bitwig 8-Track
-Includes Dotec Audio plug-ins (Dee Gate, Dee Max, Dee PanPot, Dee Pop Max, Dee Trim, Dee Trim Cast, Dee Wider)
・ Tracktion DAW Essentials Collection plug-in included
・ Kilohearts Toolbox FREE plugin included
・ Harrison 32c Vocal Intensity Processor plug-in included
・ External dimensions: 457 x 203 x 456.6 mm
・ Weight: 5.015 kg
-Supported OS: Windows 10, 11 / macOS 10.14 Mojave, 10.15 Catalina, 11 Big Sur, 12 Monterey (compatible with Apple Silicon M1)
-The attached software except iMap is not supported.

-Not all parameters can be handled depending on the DAW version.
