TASCAM / Sonicview 16

Next-generation digital mixer that operates at 96kHz and features a multi-color touchscreen.

■Digital mixer

[Main features]
- VIEW interface supports intuitive operation

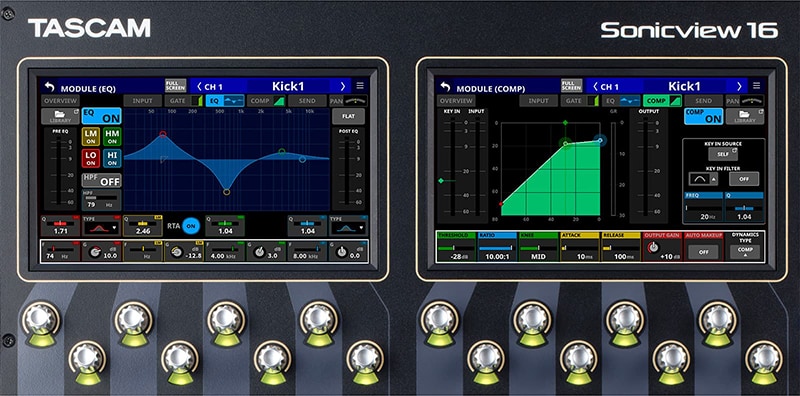

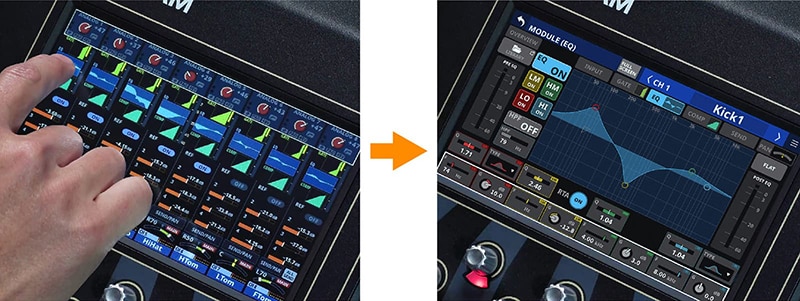

- Multi-display with 2x7-inch touch panel
- 44 input channels (40 mono inputs, 2 stereo inputs)

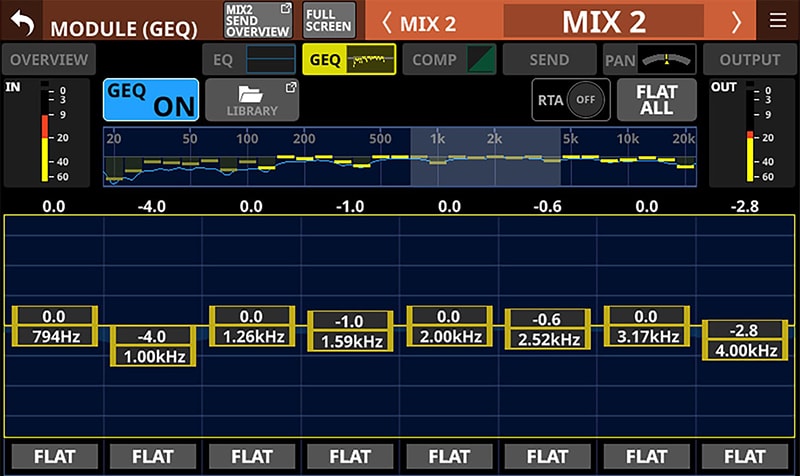

- 22 MIX buses with 31-band graphic EQ + MAIN L/R bus

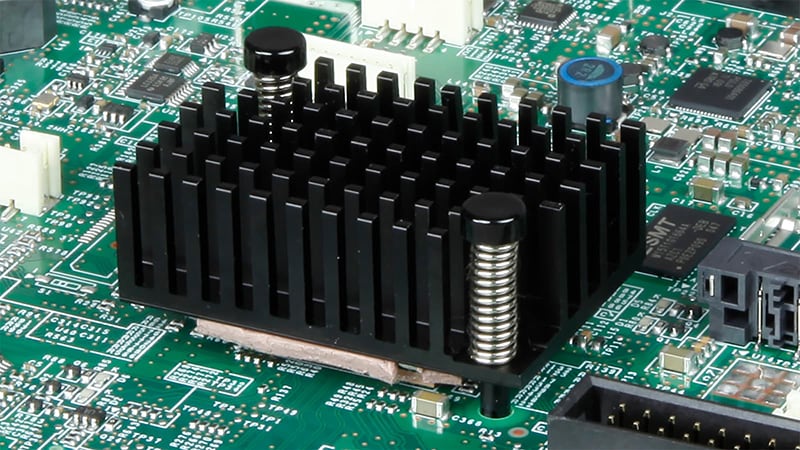

- 96kHz, 54bit float FPGA mixing engine
- Delay in the mixing engine is 2x samples (20.8μS). Ultra-low latency of 0.51ms even for analog to analog
- Equipped with 32bit/96kHz AD converter
- Class 1 HDIA microphone preamplifier

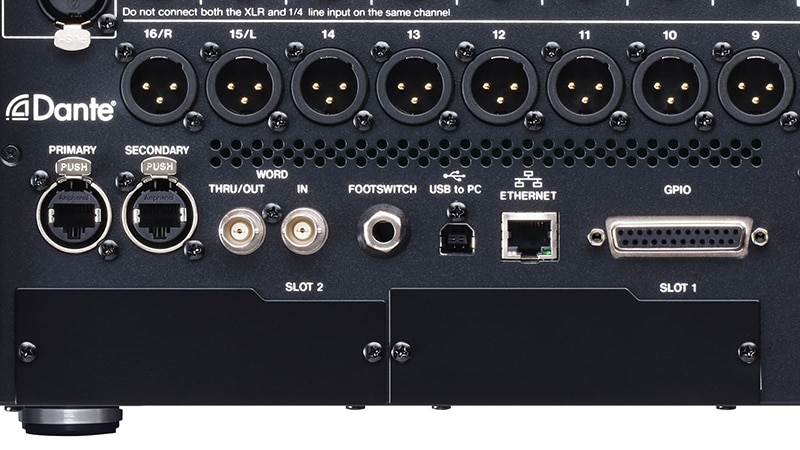

- 64in/64out Dante interface with redundant support. Also supports AES67 mode, DDM, SMPTE2110 mode

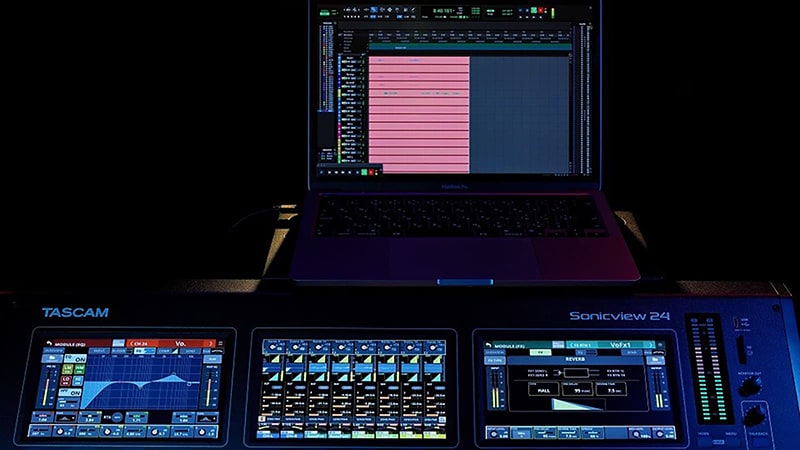

・32in/32out, 32bit/96kHz audio interface function
・16 mic/line inputs (max. +32dBu), 16XLR line outputs (flexible routing)

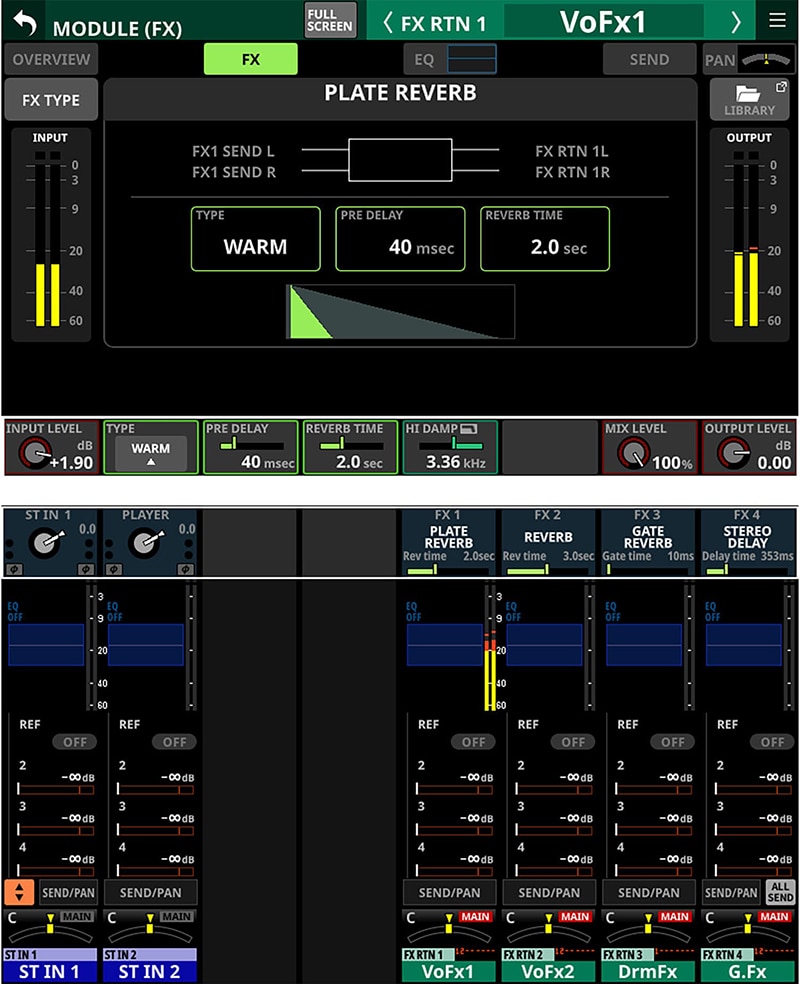

・4 multi-effect processors

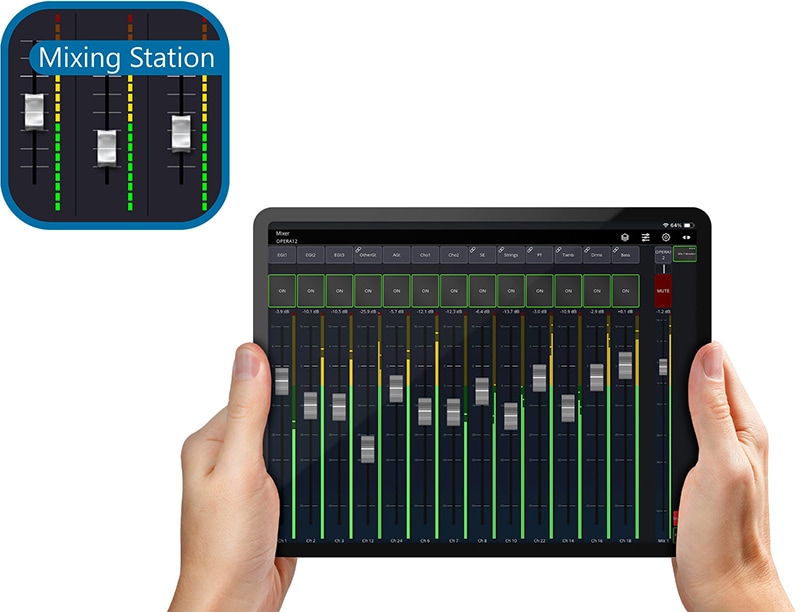

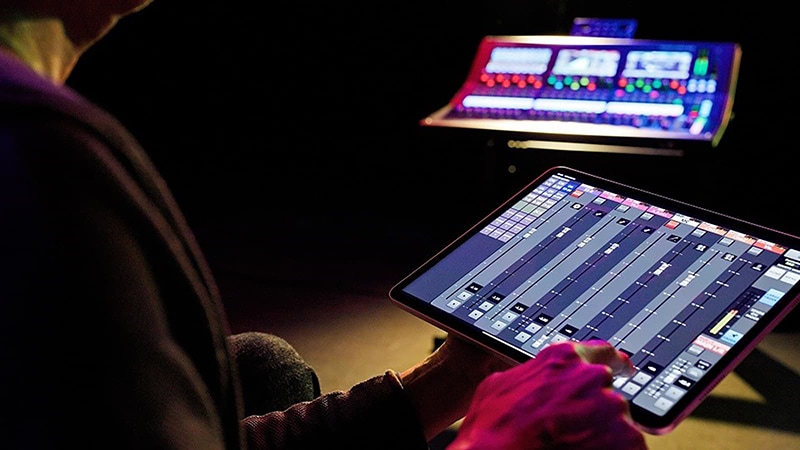

・TASCAM Sonicview Control supports Windows/MacOS/iPadOS for remote control and offline editing
・2 TASCAM expansion slots

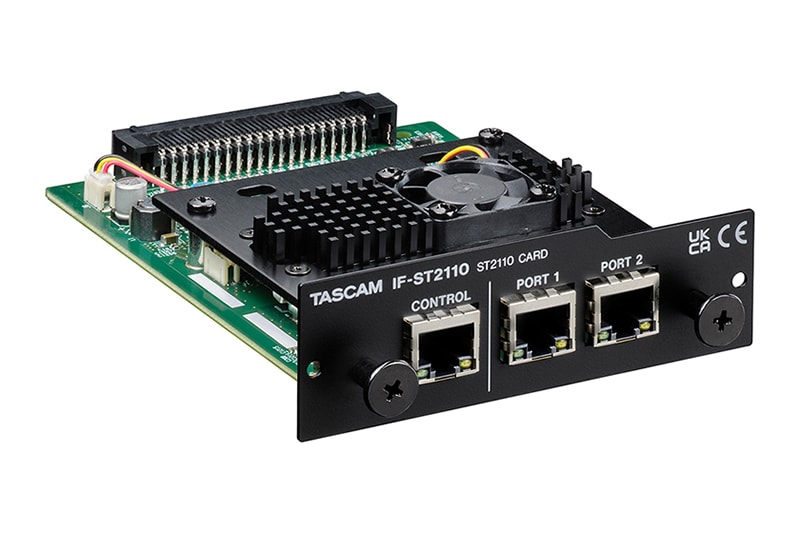

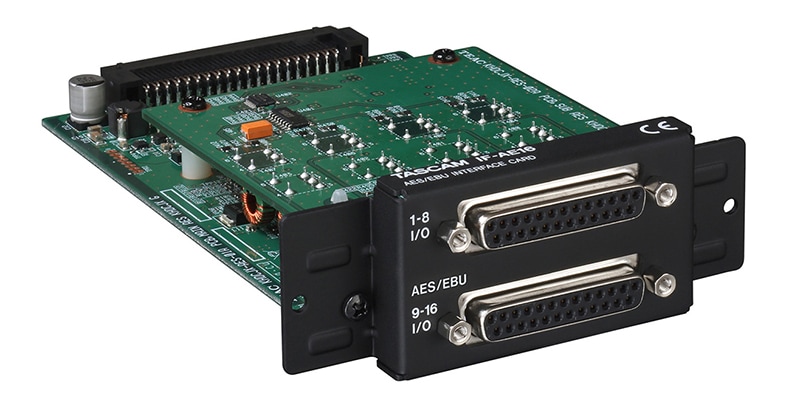

・2 slots can be used with optional MADI, Dante, AES/EBU, and analog I/O cards

【Specifications】
■Simultaneous processing capacity

Inputs: 52 [Mono: 40, Stereo: 2 (Stereo), Fx Return: 4 (Stereo)]
　Bus: 32 [AUX/GROUP switchable MIX bus: 22, MAIN L/R bus: 1 (Stereo), Fx Send bus: 4 (Stereo)]
Built-in Fx: 4
■Input ports
96kHz: Maximum 152 ports[CR][LF] 48kHz: Maximum 248 ports[CR][LF] MIC/LINE: 16[CR][LF] Stereo (RCA): 4 (2 stereo)[CR][LF] Dante: 32 (96kHz), 64 (48kHz)[CR][LF] SLOT: 32x2 (96kHz), 64x2 (48kHz)[CR][LF] USB Audio: 32[CR][LF] MONITOR OUT (analog): 2 (1 stereo)[CR][LF] Built-in recorder: 1[CR][LF] TALKBACK: 2 (1 stereo)[CR][LF]■Output ports
