TASCAM / SB-16D

Stage box with the latest equipment such as 32bit ADC, Class 1 HDIA mic preamp, 16 in / 16 out, analog / Dante converter.

■ Stage box

【Major features】

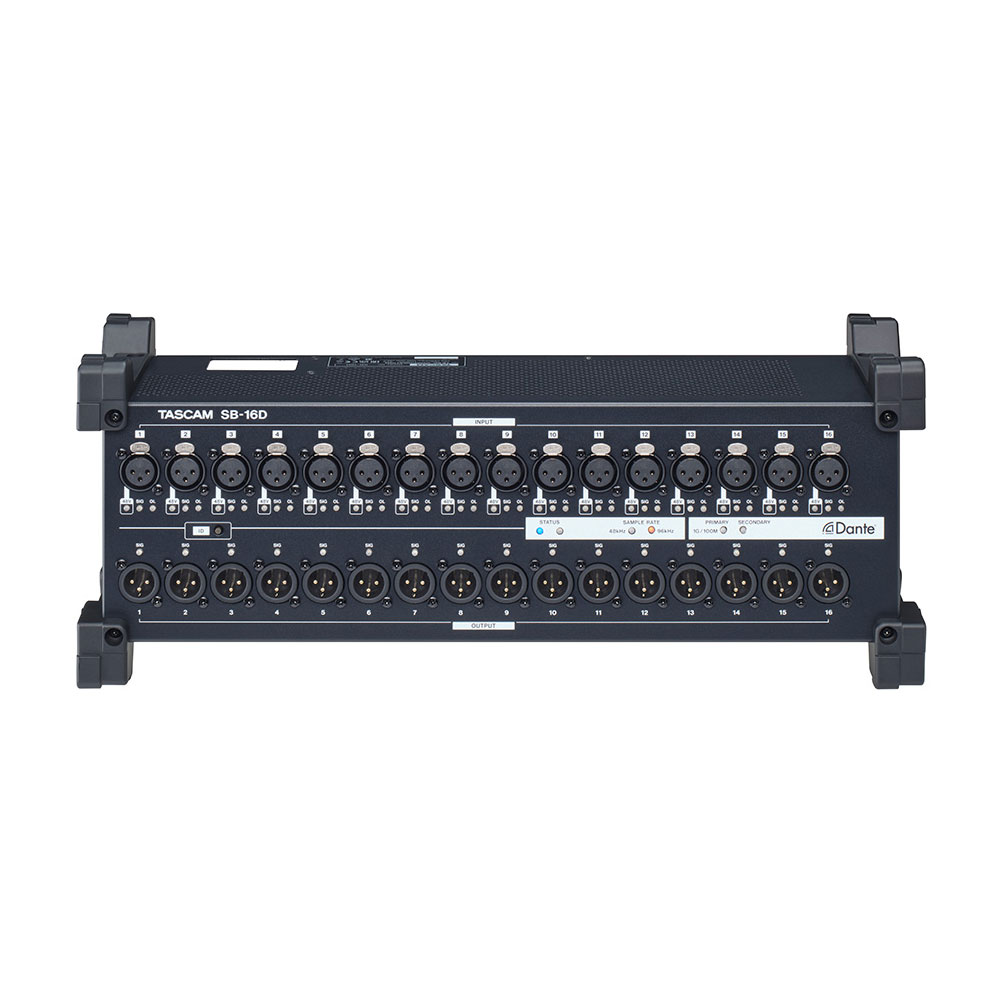

・ 16ch XLR microphone / line input (with phantom power + 48V LED), 16ch XLR line output
・ Equipped with Class 1 HDIA mic preamplifier
16-in / 16-out Dante interface for redundant
・ Supports up to 96kHz
・ Full control is possible by connecting to TASCAM Sonicview

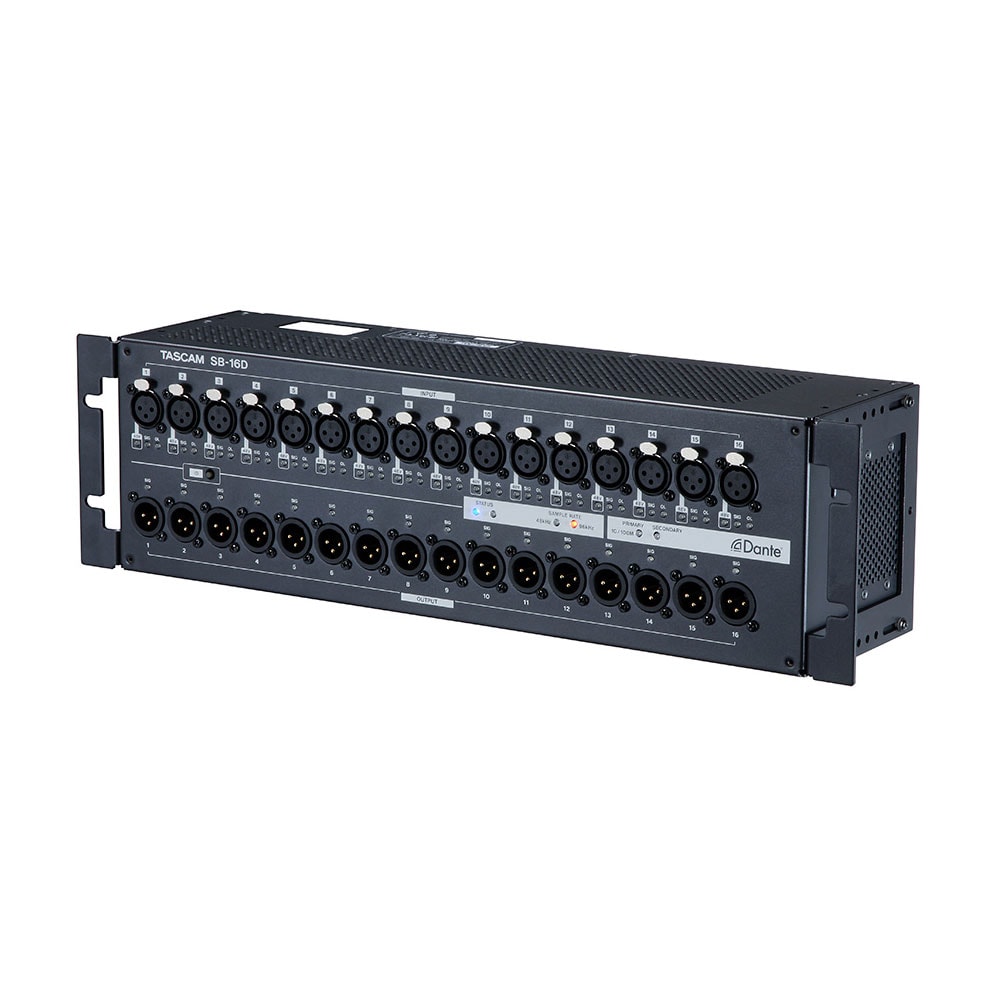

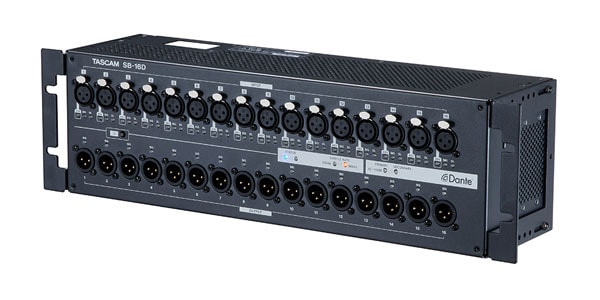

・ Floor-standing installation (upward / horizontal) / 3U rack mount compatible
-Control and offline editing is possible using the remote control app "TASCAM IO CONTROL" compatible with macOS / iPadOS / Windows.

【specification】
Analog audio input / output
■ MIC / LINE input: 1-16 channels
Equivalent to connector XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Input impedance 5.0 kΩ or more
Maximum input level + 32dBu (TRIM minimum, PAD: on), + 12dBu (TRIM minimum, PAD: off)
Minimum input level -42dBu (TRIM maximum, PAD: on), -62dBu (TRIM maximum, PAD: off)
Phantom power + 48V can be supplied
■ LINE output: 1-16 channels
Equivalent to connector XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Digital audio input / output

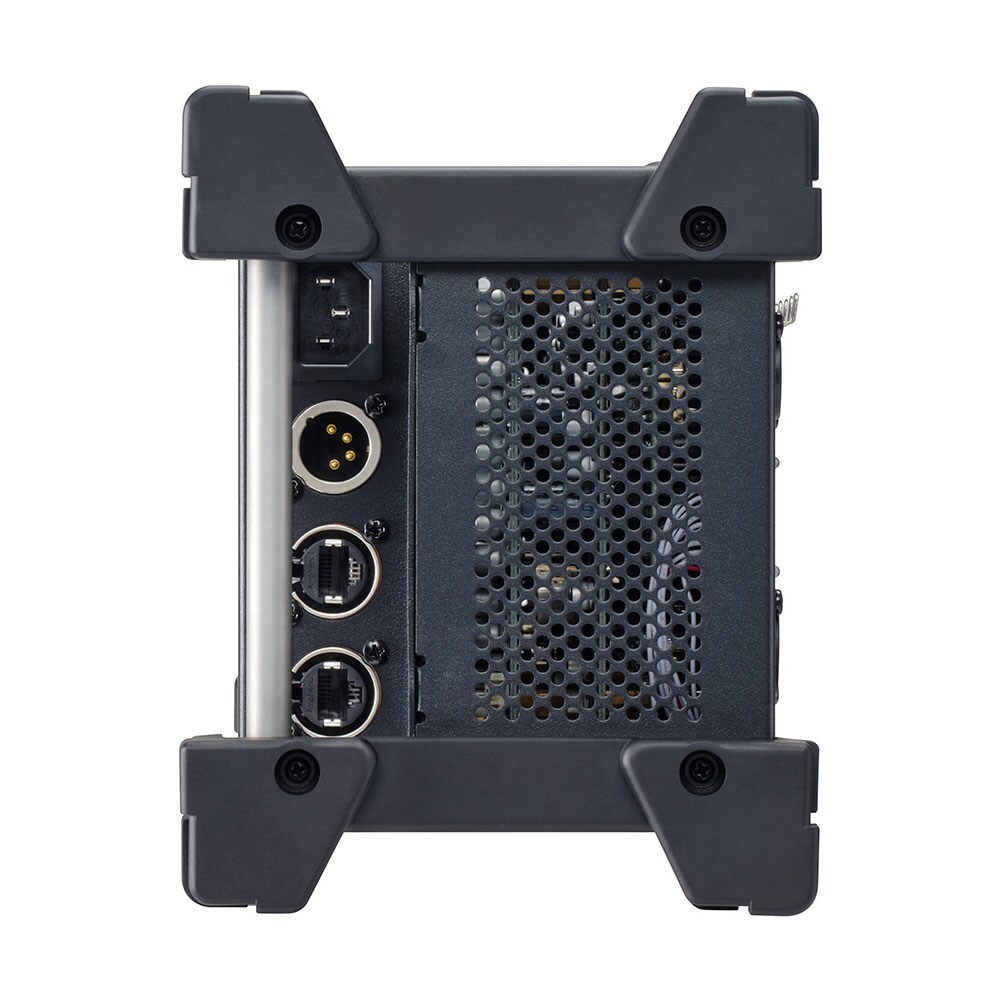

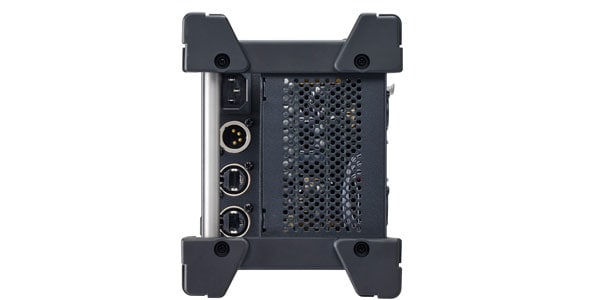

■ Dante (PRIMARY / SECONDARY): Redundant / Switched compatible
Connector etherCON Cate5e compatible connector
Transmission protocol Dante
Number of channels 16 channels IN / OUT
Sampling rate 48kHz, 96kHz
Ethernet standard 1000BASE-T (IEEE802.3ab)
Cable CAT5e STP
Other inputs and outputs

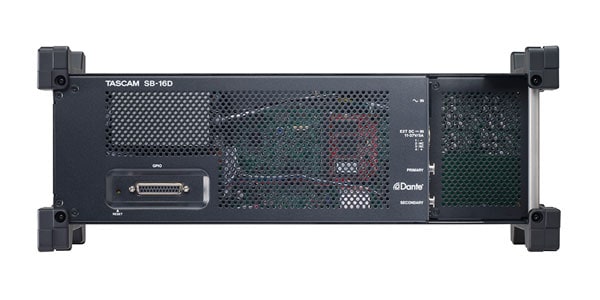

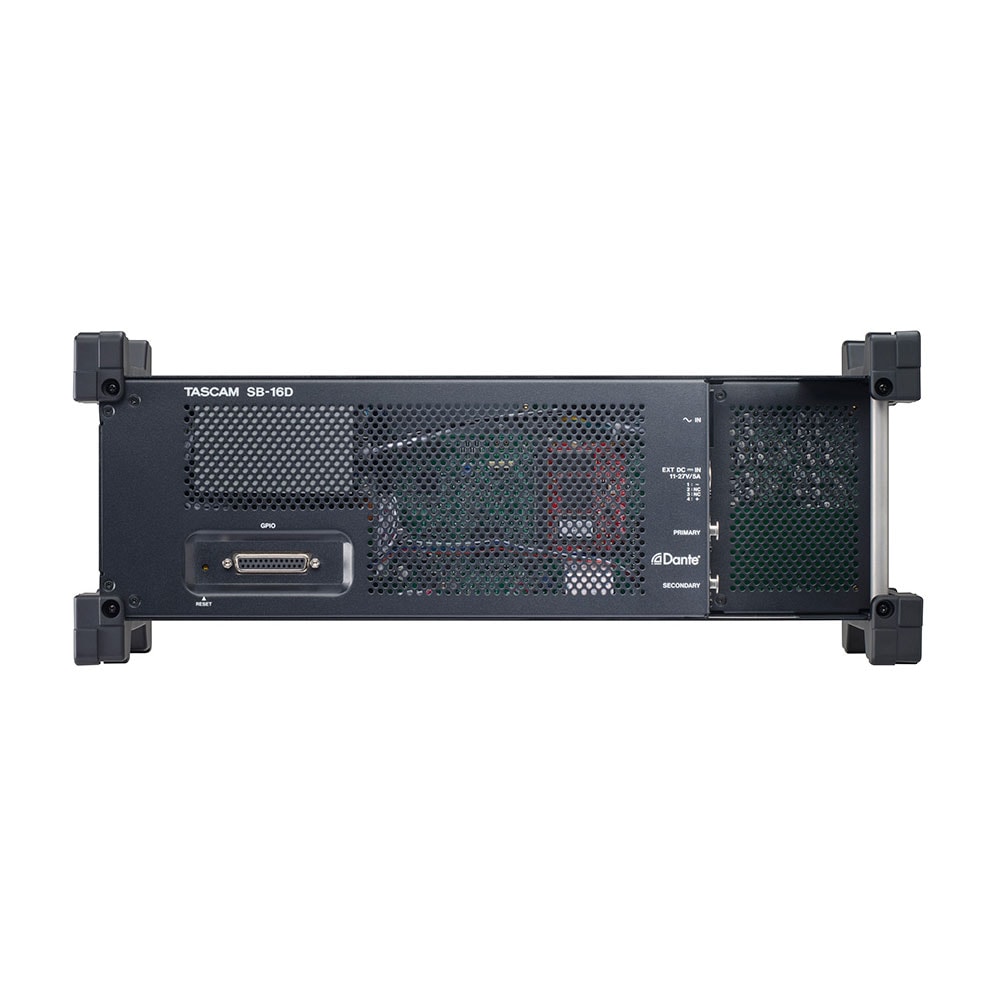

■ GPIO
Connector D-sub 25pin female inch screw
Input circuit pull-up (5V)
Output circuit open collector
Output impedance 10Ω
Withstand voltage 20V
Maximum current 35mA
+ 5V maximum supply current 50mA
General specifications
■ External dimensions
With standard foot attached: 454 (W) x 140 (H) x 179.6 (D) mm
When rack mount angle is installed: 482.8 (W) x 132 (H) x 120 (D) mm
■ Mass: 4.5kg
■ AC power supply: AC100V-240V 50 / 60Hz
■ Operating temperature: 0 ~ 40 ℃

【Bundled items】
・ Power cord (JAPAN USA / EUROPE / OCEANIA) x3
・ Rack mount angle x2
・ Rack mount angle mounting screws x4
・ TASCAM ID Registration Guide x1
・ Instruction manual (with warranty)
