Beyond / Beyond Acoustic Wired 2S

Preamplifier for acoustic guitar equipped with a vacuum tube. A wide range of sounds can be created with three types of tone units, treble, middle and bass. It also supports balanced output as D.I, and is equipped with a ground lift switch and a phase inversion shift switch, making it suitable for all sites.

■ Effector for acoustic guitar

■ Vacuum tube preamplifier

■ Features

* Equipped with Electro-Harmonix vacuum tube (12AU7 EH).

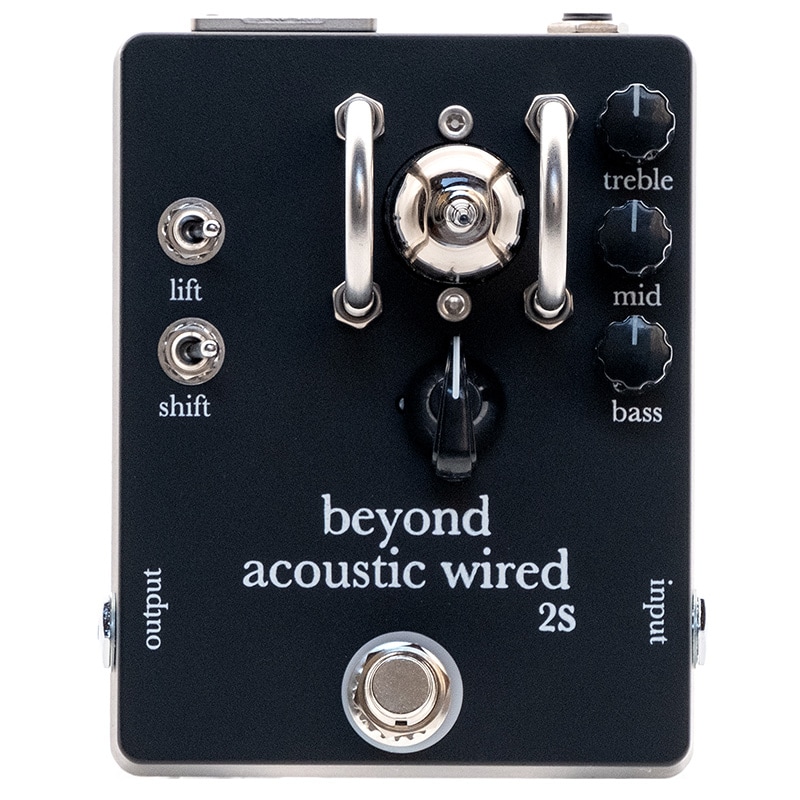

* Equipped with treble, middle bass, and 3 types of tone units.

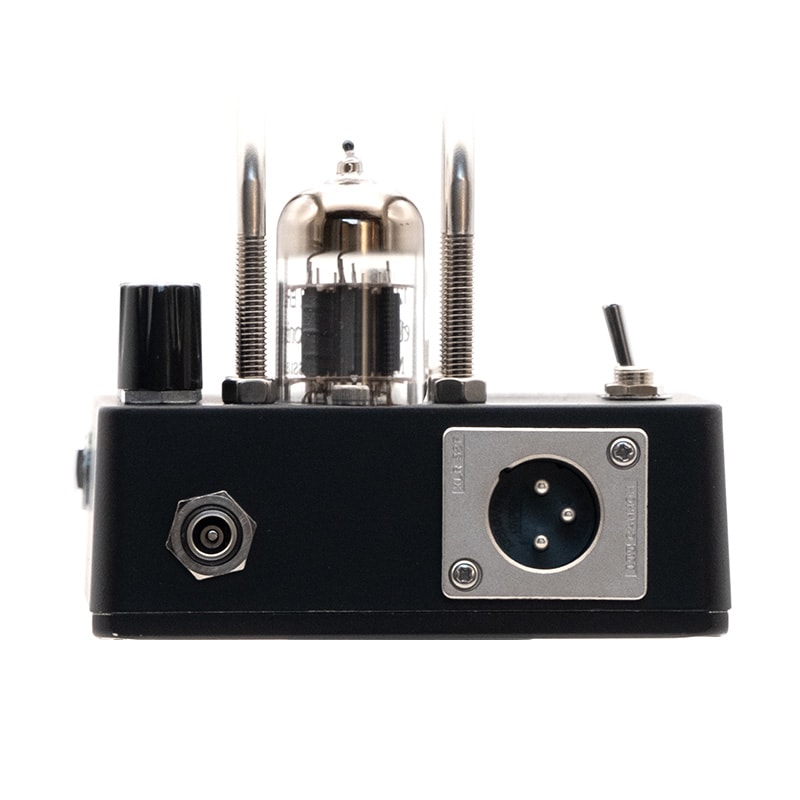

* Equipped with a cannon out. Also supports balanced output as D.I.

* Equipped with a ground lift switch and a phase inversion shift switch, it can be used at any site.
* True bypass switching method.

* On / off display by LED lamp directly under the vacuum tube.

■ Size W94.0mm x D119.5mm x H80.0mm

■ Weight about 420g

■ Power input voltage DC9 (2.1mm DC jack center minus)

■ Current consumption approx. 190mA

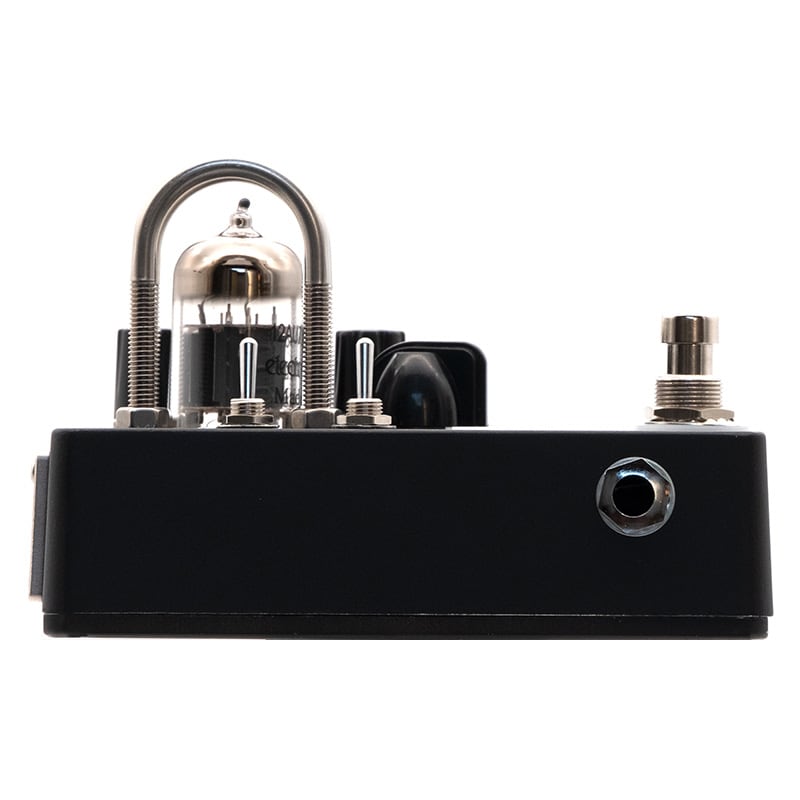

■ Input / output terminal 6.3mm monaural jack

■ Input impedance Approximately 1MΩ

■ Output impedance

■ Unbalanced output (monaural jack) Approximately 1KΩ

■ Balanced output (between XLR connector Hot / Cold GND) Approx. 250Ω

* Specifications are subject to change without notice.
