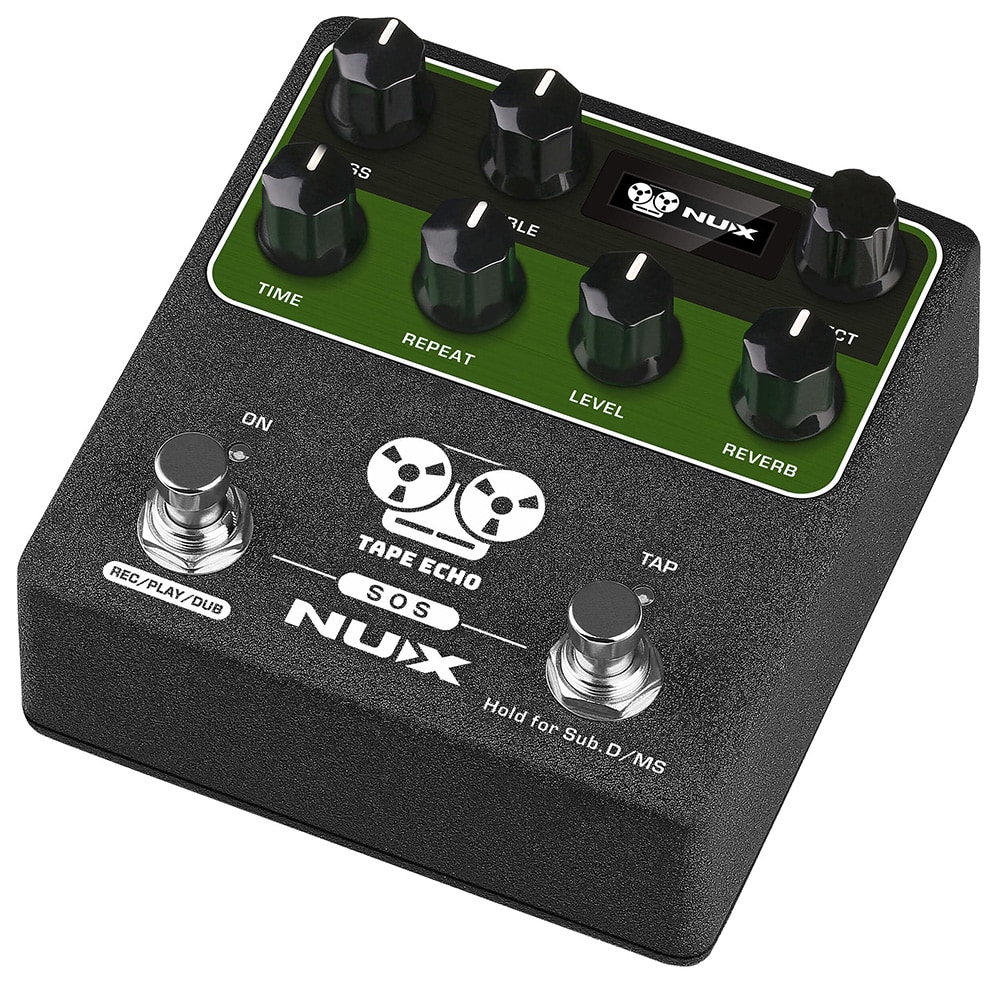

NUX / TAPE ECHO
A pedal made with the motif of Space Echo made in Japan released in 1974. The realistic sound of NUX's original "Core Image Technology" is attractive.
Tribute to Space Echo
-Realistically reproduce echo sound with UX's original Core Image Technology. It also has a spring reverb.

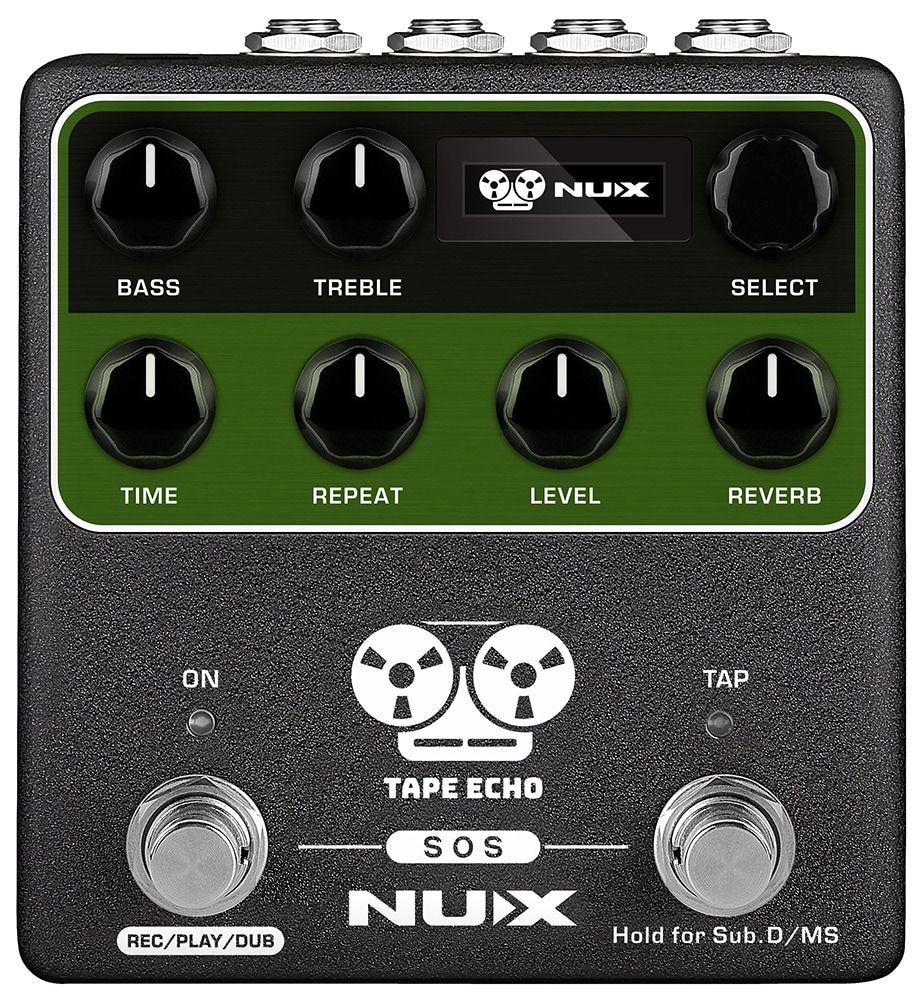

-7 types of sound variations using 3 playback heads. It is also possible to switch between MS / BPM (Sub-division). The selected tape head is shown on the display so you can see at a glance what is selected.
-The SATURATION that reproduces the distortion and compression of the preamp, and the WOW and FLUTTER that reproduce the fluctuation of the echo sound can be set individually. It also has a KILL DRY function that turns off the dry signal (original sound) and outputs only the echo sound.
・ You can set the TIME at your feet by tapping the tempo.
-Equipped with a self-feedback function that oscillates by pressing and holding the ON switch even if there is no input signal, and an SOS (Sound on Sound) mode (40-second phrase loop).

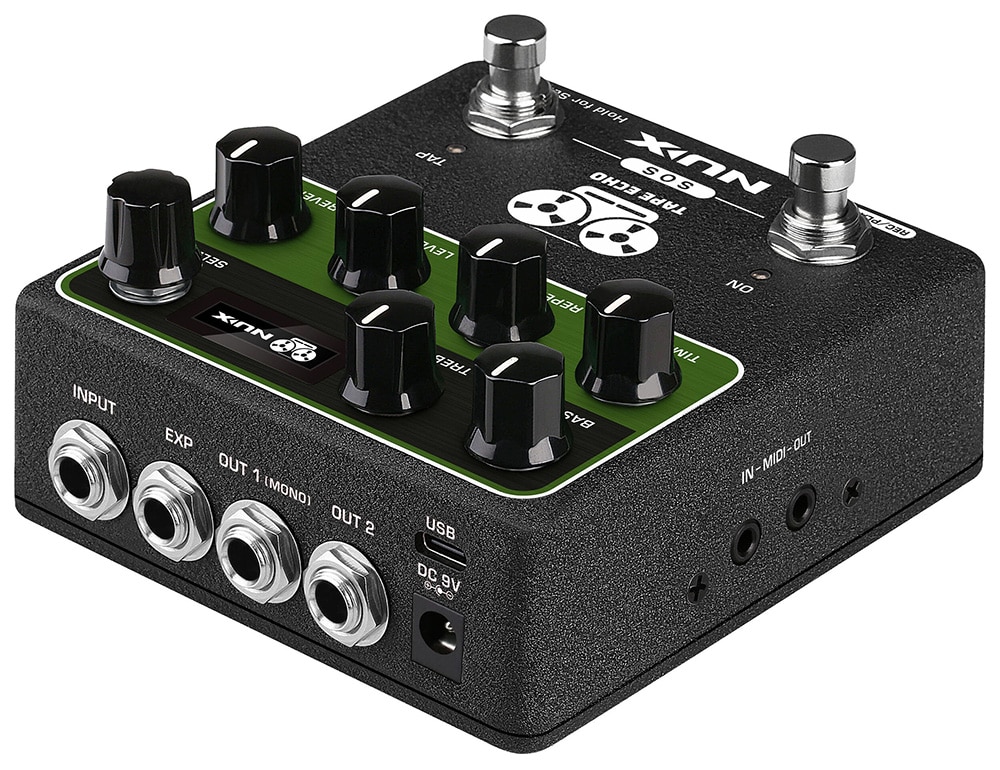

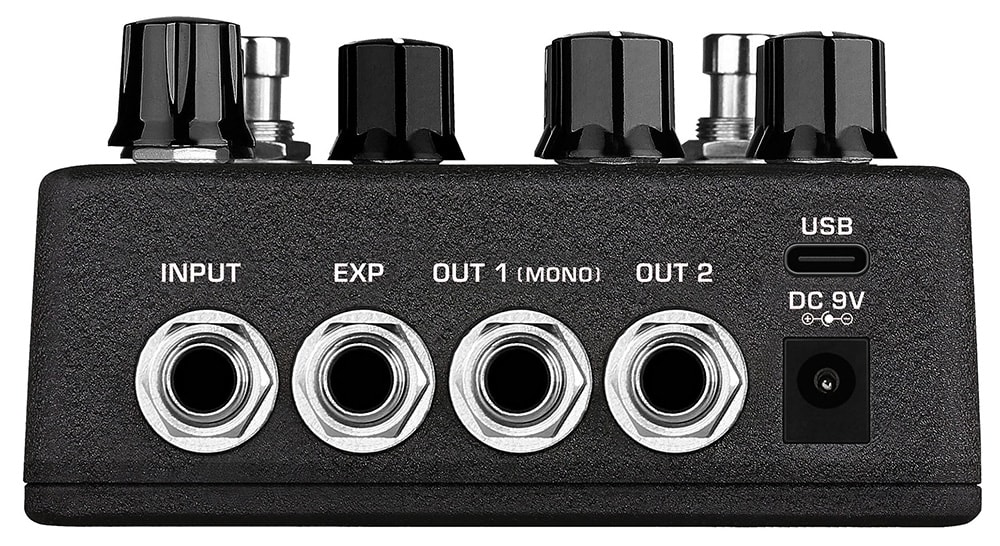

-Supports stereo output that reproduces a wider echo sound. It also has an external expression pedal, a MIDI device connection terminal, and a 3.5mm TRS-5pin MIDI cable.
■ Specifications
・ Sampling Rate: 48kHz
・ A / D Converter: 32Bit
-Signal Processing: 32Bit
・ Frequency Response: 20Hz ~ 20kHz ± 1dB
・ Input Impedance: 5MΩ
・ Maximum Input Level: 1.5Vrms
・ Output Impedance: 100Ω
・ Maximum Output Level: 1.5Vrms
・ System Latency: 1ms
・ Dynamic Range: 103dBu / 105dBu (A-Weighting)
・ THD + N Ratio: 0.0038% @ Input 1Vrms_1kHz, 0.01% @ Input 1.5Vrms_1kHz
・ Power: 9V DC (Center minus, NUX ACD-006A is recommended)
・ Current Draw: Approximately 100mA, <150mA
・ Dimensions: 105 (L) x 115 (W) x 58 (H) mm
・ Weight: 440 g
Accessories: 3.5mm TRS-5pin MIDI cable x 2
* USB Type-C cable for connecting to a PC is sold separately. Please prepare a cable capable of data communication.
* For editor software, download "Tape Echo Edit Software (Mac or Windows)" from the bottom (Support) of NUX Tape Echo. If you want to connect to a Windows PC, download and install the NUX ASIO Driver from the same site.
-Realistically reproduce echo sound with UX's original Core Image Technology. It also has a spring reverb.
-7 types of sound variations using 3 playback heads. It is also possible to switch between MS / BPM (Sub-division). The selected tape head is shown on the display so you can see at a glance what is selected.
-The SATURATION that reproduces the distortion and compression of the preamp, and the WOW and FLUTTER that reproduce the fluctuation of the echo sound can be set individually. It also has a KILL DRY function that turns off the dry signal (original sound) and outputs only the echo sound.
・ You can set the TIME at your feet by tapping the tempo.
-Equipped with a self-feedback function that oscillates by pressing and holding the ON switch even if there is no input signal, and an SOS (Sound on Sound) mode (40-second phrase loop).
-Supports stereo output that reproduces a wider echo sound. It also has an external expression pedal, a MIDI device connection terminal, and a 3.5mm TRS-5pin MIDI cable.
■ Specifications
・ Sampling Rate: 48kHz
・ A / D Converter: 32Bit
-Signal Processing: 32Bit
・ Frequency Response: 20Hz ~ 20kHz ± 1dB
・ Input Impedance: 5MΩ
・ Maximum Input Level: 1.5Vrms
・ Output Impedance: 100Ω
・ Maximum Output Level: 1.5Vrms
・ System Latency: 1ms
・ Dynamic Range: 103dBu / 105dBu (A-Weighting)
・ THD + N Ratio: 0.0038% @ Input 1Vrms_1kHz, 0.01% @ Input 1.5Vrms_1kHz
・ Power: 9V DC (Center minus, NUX ACD-006A is recommended)
・ Current Draw: Approximately 100mA, <150mA
・ Dimensions: 105 (L) x 115 (W) x 58 (H) mm
・ Weight: 440 g
Accessories: 3.5mm TRS-5pin MIDI cable x 2
* USB Type-C cable for connecting to a PC is sold separately. Please prepare a cable capable of data communication.
* For editor software, download "Tape Echo Edit Software (Mac or Windows)" from the bottom (Support) of NUX Tape Echo. If you want to connect to a Windows PC, download and install the NUX ASIO Driver from the same site.
