YAMAHA / CXS18XLFW

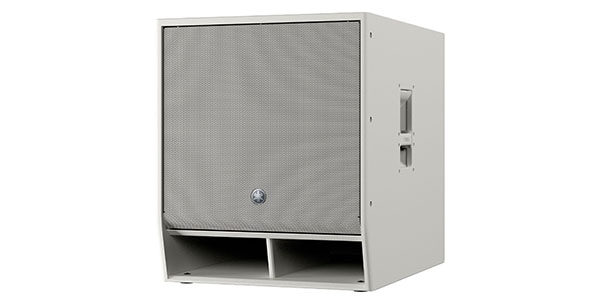

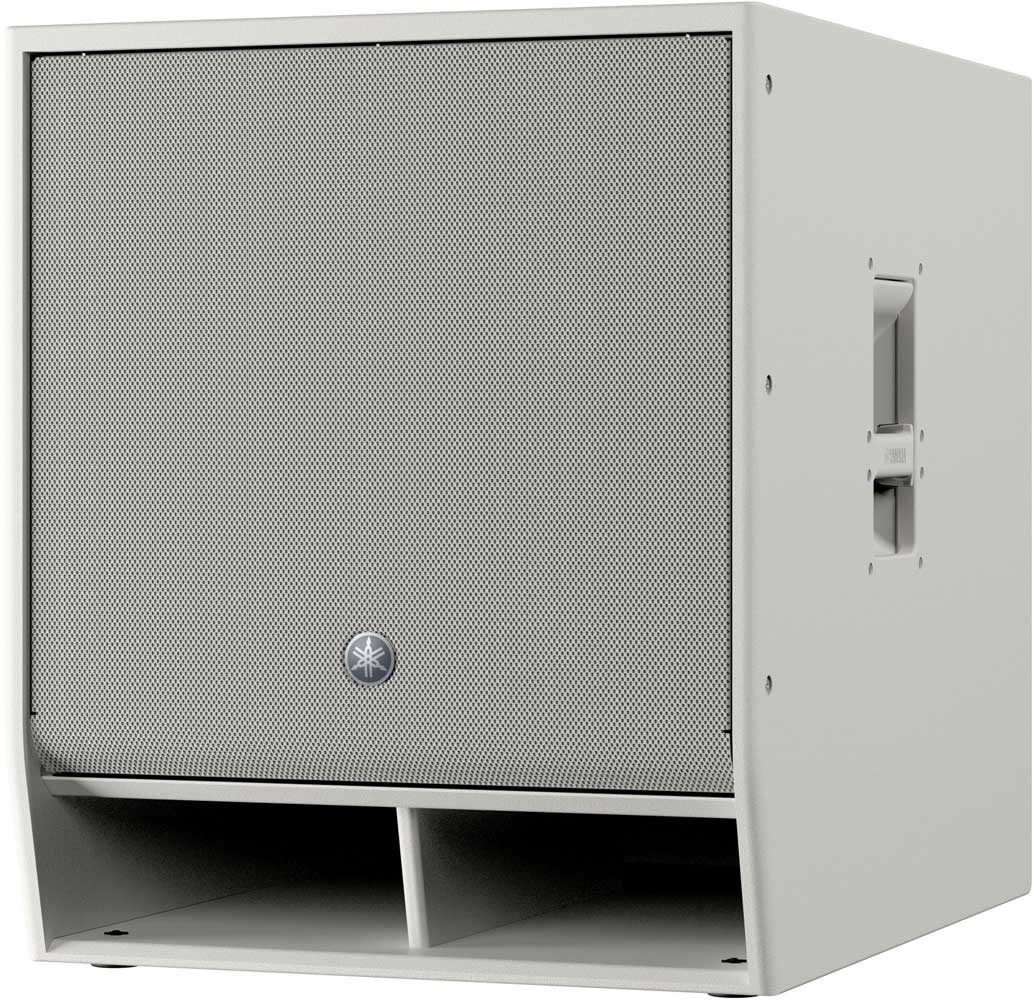

The CXS18XLF is an 18-inch bass-reflex subwoofer. It reproduces powerful and rich low frequencies from 29Hz with a sound pressure level of 133dBSPL, the highest level in its class. It has a high input resistance of 1000W (PGM). The lightweight and sturdy plywood cabinet is coated with a highly scratch-resistant polyurea coating.

■Type: Bass-reflex subwoofer
■Frequency range (-10dB): Passive: 32 Hz - 3kHz, Normal (*1): 32 Hz - 150 Hz, Extend (*1): 29 Hz - 150 Hz
■Nominal directivity angle (horizontal x vertical): 90° x 60° (90° rotatable)
■Floor monitor angle: 50°
■Components: 18-inch cone, 4-inch voice coil
■Crossover frequency: 2.5kHz
■Maximum input power
・NOISE: Passive 500W
・PGM: Passive 1000W
・PEAK: Passive 2000W
■Rated impedance
・Lo-Z: Passive: 8Ω
■Output sound pressure level
・1W, 1m: Passive 100dB SPL *2
・Maximum (calculated value, 1m): Passive 133dB SPL *2

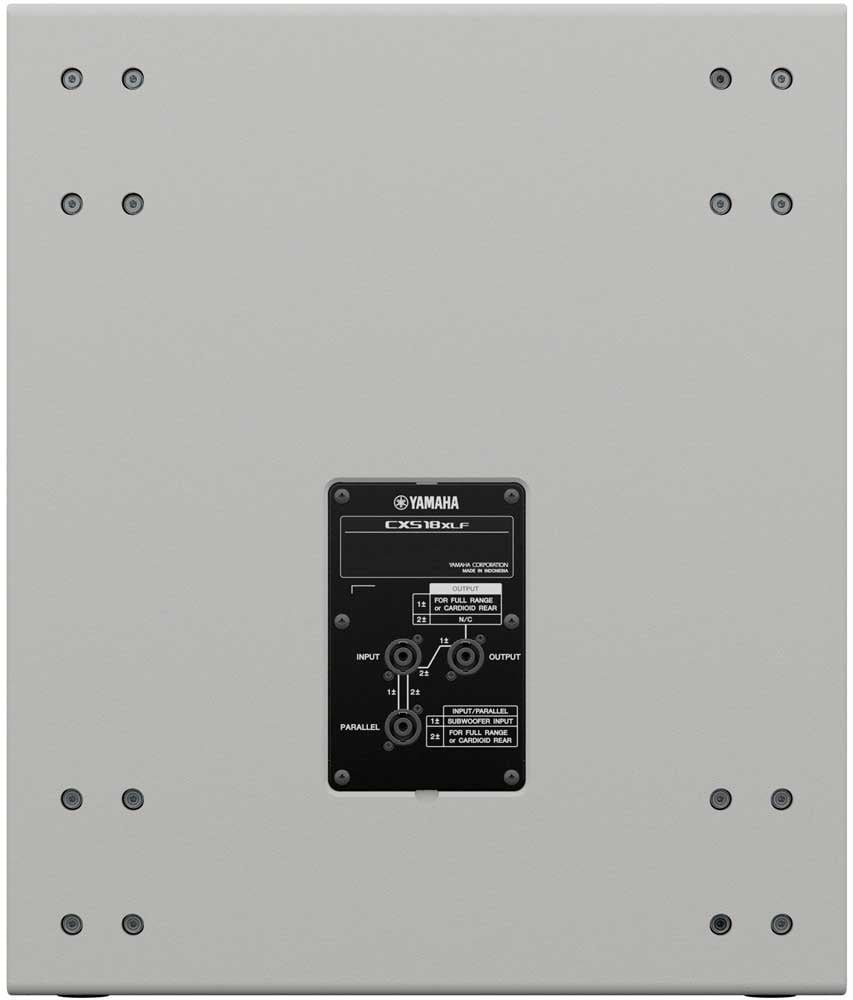

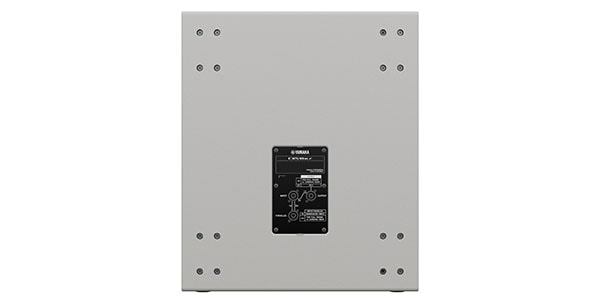

■Input/Output connectors: speakON NL4MP x3 (Parallel x2, Output x1)
■Handle: Side x2
■Pole mount socket: Φ35mm x2 (0°/-7°)
■Hanging bracket attachment point: Φ35mm (depth 80mm), M20 (depth 25mm)
■Dimensions
・Width: 550mm
・Height: 657mm
・Depth: 720mm
■Weight: 43.6kg
*1: When using recommended DSP preset
*2: Half space (2π)
