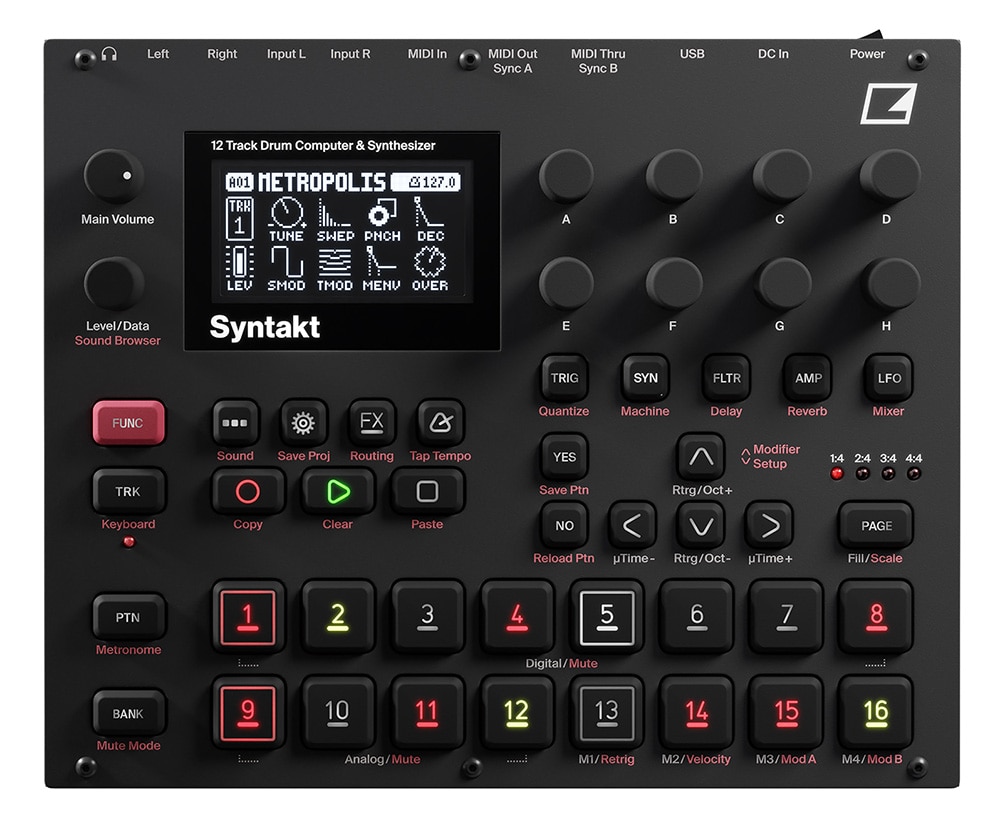

ELEKTRON / Syntakt STK-1

The Syntakt STK-1 is a 12-track drum machine and synthesizer. It melts analog and digital synthesis to produce a variety of percussion sounds.

Elektron's Syntakt is a 12-track drum computer and synthesizer. This is a sonic metropolis that melts analog and digital synthesis and combines immeasurable opportunities into a single instrument.
All your sound generation, sequencing and performance needs are met in an all-round music megabox that fits on your lap.

Syntakt is a drum specialist with a lot of percussive potential, but the 12 tracks can also be used as melody, harmony and bass sounds.
Experience spectacular sounds from the past and sounds from the future with over 35 analog / digital machines.
In the Elektron Universe, the application-specific sound generator inside a synthesizer is called a "machine."
Edit these machines with intuitive and playful graphics.
You can route built-in tracks and external audio inputs to FX tracks.
Delays, reverbs, analog distortions and filters, and some LFOs are available.
With four express modifiers, you have the freedom to manipulate the sound while varying velocity, retrigger, and other parameters.
Keyboard mode offers a variety of scales, well-known scales as well as some rare scales that will help you discover new musicals and take you to the next level.
And finally, with the world's best 64-step Elektron sequencer, you can achieve a dynamic sound scale.

The cityscape of Syntakt continues endlessly, the neon signs keep blinking, and there is something bottomless in the basement. Discover the world in the world. With love for this moment, the journey will continue forever.

Features of Digital Track (8 Tracks)

10 x selectable machines
1 x bass drum
2 x snare drum
1 x cymbal / hi-hat
1 x percussion
1 x clap
4 x synthesizer
1 x Digital Overdrive (per track)
1 x multimode filter (per track)
1 x Digital base-width filter (per track)
2 x Allocatable LFO (per track)
Can be used as a MIDI machine by switching
Features of analog drum tracks (3 tracks)

15 x selectable machines
6 x bass drum
4 x snare drum
2 x rim shot
1 x dual VCO synth
1 x impulse
1 x noise generator
1 x analog overdrive (per track)
1 x analog multimode filter (per track)
2 x Allocatable LFO (per track)
Can be used as a MIDI machine by switching
Features of analog cymbal track (1 track)

12 x selectable machines
5 x hi-hat
3 x cymbals
2 x cowbell
1 x impulse
1 x noise generator
1 x analog overdrive (per track)
1 x analog multimode filter (per track)
2 x Allocatable LFO (per track)
Can be used as a MIDI machine by switching
Performance features

1 x Retrigger Modifier
1 x Velocity Modifier
2 x assignable trigger modifier
Keyboard mode for 36 different scales
MIDI machine features

4 note polyphony per step
8 x assignable CC control
1 x Assignable LFO (per track)
Features of sequencer

Up to 64 steps per pattern / track
Individual pattern length can be set for each track
Individual time scales can be set for each track
Parameter lock
Trigger condition & trigger probability
Retrigger
Micro timing
Send effect

delay
Reverb
Hardware specifications

128 x 64 pixel OLED screen
2 x 6.3mm Impedance Balanced Audio Out Jack
2 x 6.3mm audio in jack
1 x 6.3mm stereo headphone jack
48kHz, 24-bit D / A A / D converter
High speed USB 2.0 port
MIDI In / Out / Thru (also available as DIN Sync Out)
Physical specifications

Sturdy steel housing
External dimensions: W 215 x D 176 x H 63 mm
Weight: Approximately 1.53 kg
100 x 100 mm VESA mount hole M4 screw hole
others

Overbridge compatible
Class compliant USB audio support
External input mixer
