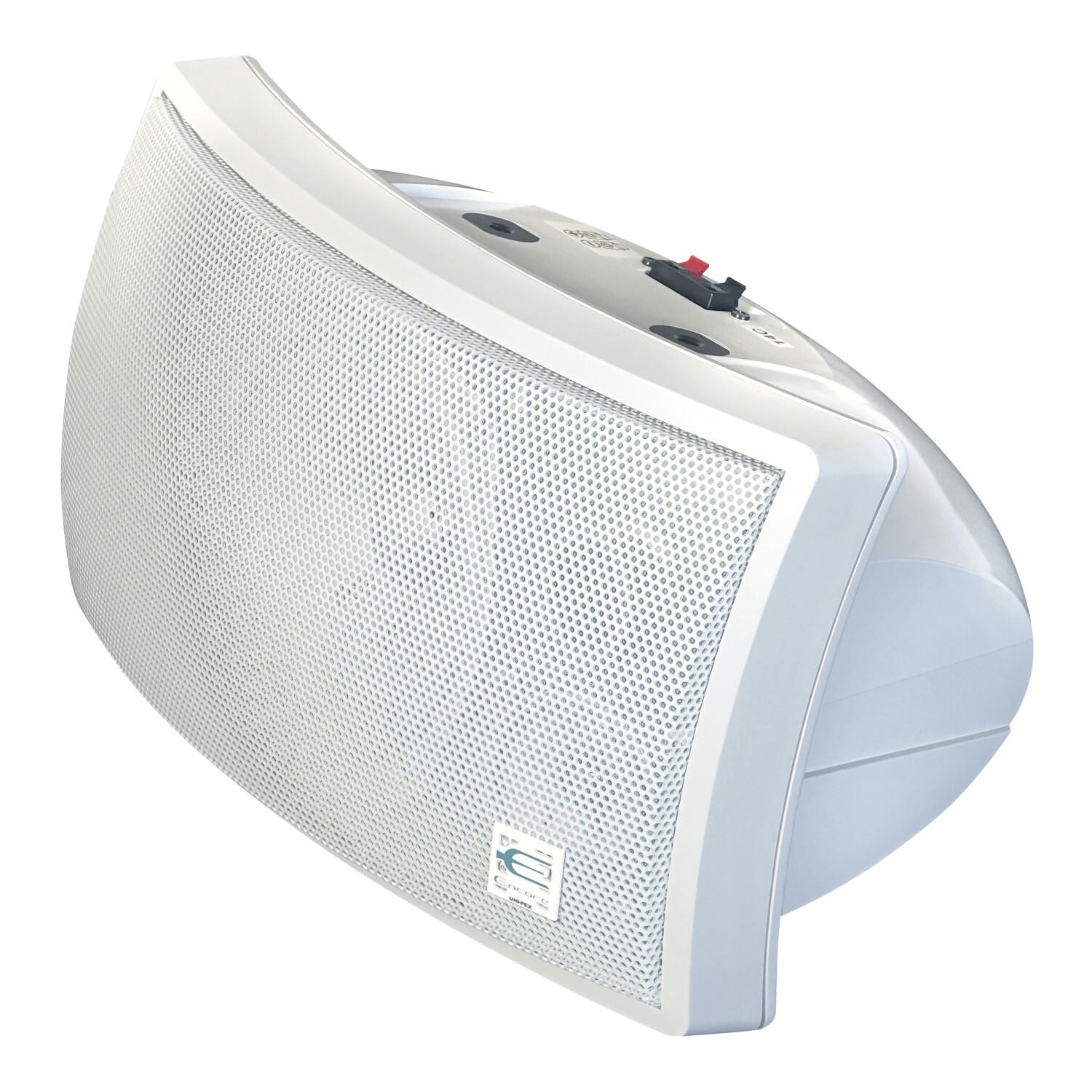

UNI-PEX / FMS-60P Passive Speaker

A two-way bass-reflex speaker system that emphasizes high efficiency and durability. It can also be hung from the ceiling when combined with an optional mounting bracket.

■Maximum input power
Rated: 60W (RMS/EIA) Maximum: 120W (continuous program)
■Rated impedance: 8Ω
■Output sound pressure level: 93dB (at 1m, 1W)
■Playback frequency band: 60Hz to 20kHz (deviation within 20dB)
■Crossover frequency: 3kHz
■Directivity: 40° x 70° (horizontal x vertical, -6dB)
■Input mechanism: 2P push terminal
■Speakers used
Woofer: φ16cm cone type woofer x 1
Treble: φ7cm cone type tweeter x 2
■Exterior
Enclosure (PP resin): Munsell N7.5 approximate color, light gray
Baffle (PP resin): Munsell 10GY7.5/0.5 approximate color, silky snow pearl
Grill screen (punched metal): Munsell 10GY7.5/0.5 approximate color Silky Snow Pearl
■Dimensions: Width 335mm, Height 190mm, Depth 240mm
■Weight: Approx. 4.1kg
■Accessories: Instruction manual (with warranty) x 1
■Special item: Ceiling mounting bracket (SA-901BA)
