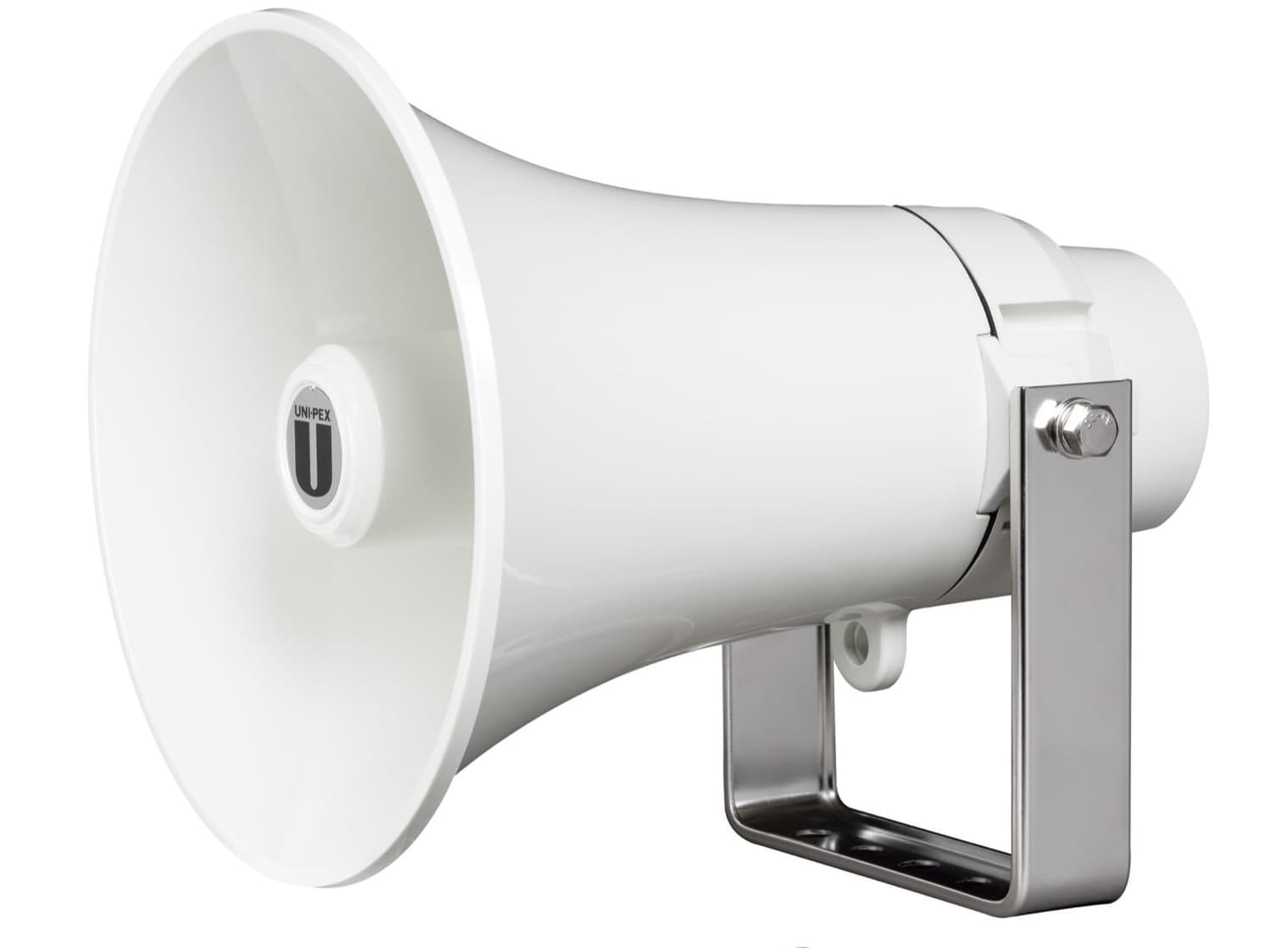

UNI-PEX / CT-211 horn speaker

Round small-diameter, all-weather horn speaker for general public address systems. Phenolic resin with good sound quality is used for the diaphragm to achieve clear sound quality. With a built-in matching transformer, it is suitable for multiple simultaneous use and extension wiring. Excellent corrosion resistance by using stainless steel bolts and screws on the outside.

■ Rated input: 10W
■ Rated impedance and emergency type
1kΩ (10W) 2kΩ (5W) 4kΩ (2.5W) High impedance 100 series / L class / outlet switching type
■ Sound power level: p = 109dB (1W)
■ Directivity classification: N
■ Output sound pressure level: 106dB (1W / 1m)
■ Playback frequency band: 315Hz to 7kHz (deviation within 20dB)
■ Directivity angle: Horizontal / vertical 75 ° (2kHz -6dB)
■ Mounting bracket: U-shaped bracket L-shaped
■ Exterior
Horn mouse (ASA resin): Munsell 5GY8.5 / 0.5 approximate color silver gray
Cover (ASA resin): Munsell 5GY8.5 / 0.5 approximate color Silver gray
Bracket (SUS304)
■ Dimensions: Caliber φ212mm Total length 259mm
■ Input polarity: 2-core cap tire code VCTF 0.5 x 2C (+: black, COM: white)
■ Mass: Approximately 1.6 kg
■ Applicable standard: Compliant with JIS C 5504 horn speaker
Japan Fire Fighting Certification Association certified product Model number: Approved No. 27-11
■ Dustproof / waterproof performance: IP65
■ Operating temperature range: -20 ° C to + 55 ° C
■ Accessories: Instruction manual (with warranty) x 1, cord with dedicated plug (about 50 cm) x 1
