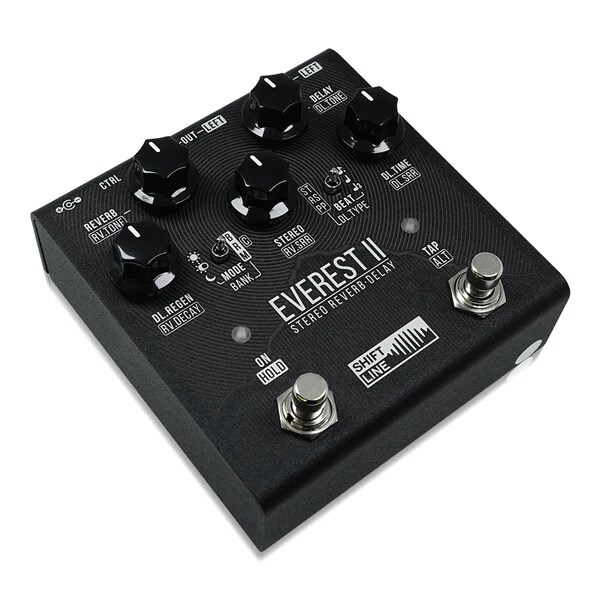

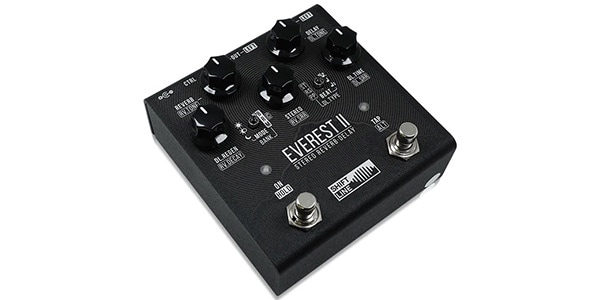

Shift Line / EVEREST II

Shift Line's guitar delay and reverb effector. Suitable for a variety of settings.

■Guitar effector
■Delay and reverb for guitar
■Features
-Controllable spread, dual mode, supports full-fledged stereo signal chain
-Subdivision tap tempo setting possible
-Stereo, ping-pong delay
-Maximum delay time: 1 second (mono ping-pong delay is 2 seconds)
-6 reverb and delay modes that can run two effects in parallel
-Independent volume control for reverb and delay
-Low pass filter
-Delay filter
-From infinite sustain to self-oscillation
-Favorite presets can be saved
-All analog signal chain
-Switchable bypass mode
-Kill dry setting possible
-Lightweight and compact

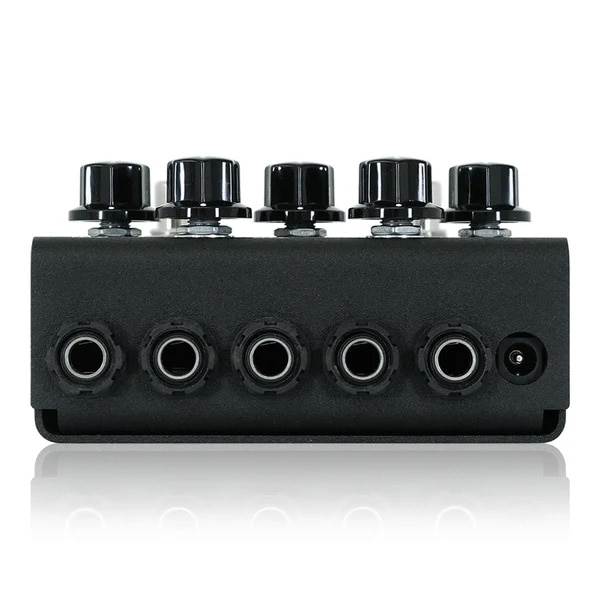

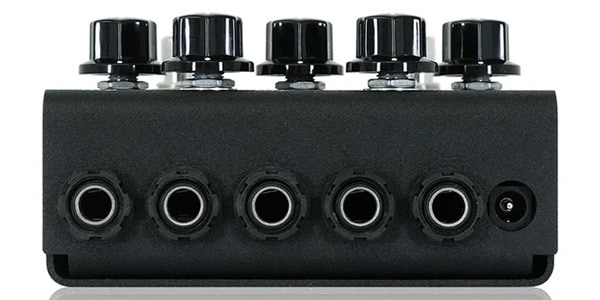

-Top mounted jack
-External tap tempo input possible

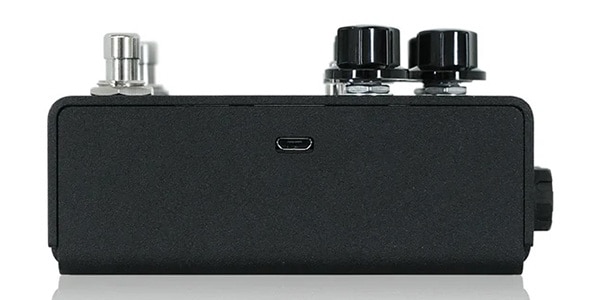

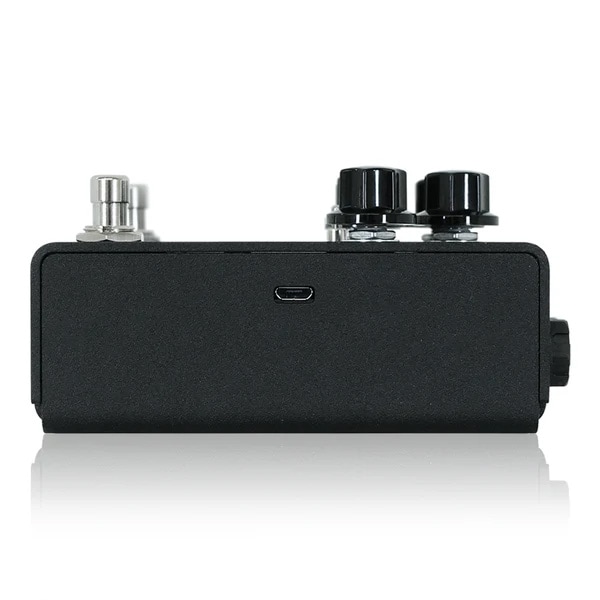

-Firmware update possible via micro USB terminal

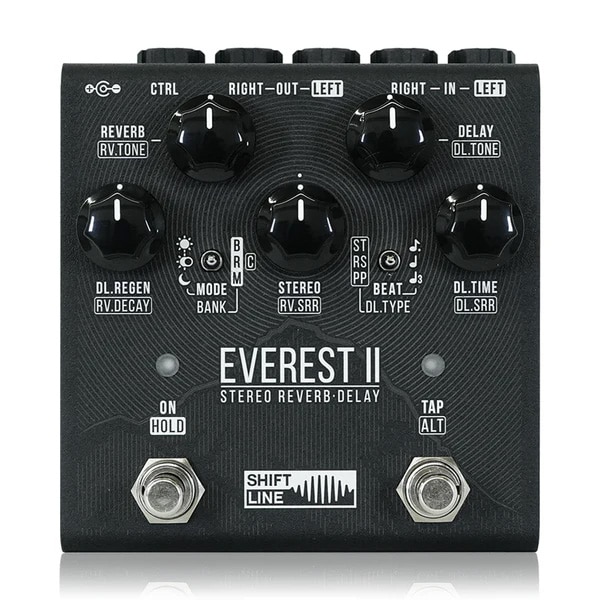

■Controls
-REVERB LEVEL: Adjusts the wet signal level of the reverb. Turn counterclockwise to the minimum to turn off the reverb.
-DELAY LEVEL: Adjusts the wet signal level of the delay. Turn counterclockwise to the minimum to turn off the delay.
・REGEN: Simultaneously controls the feedback of the delay and the decay of the reverb.

・STEREO WIDTH: Adjusts the width of the stereo image. Turn this knob while pressing the TAP footswitch to adjust the brightness of the wet signal.

・TIME: Adjusts the delay time. Turn it to minimum to disable the delay.

・MODE: Selects between six reverb and delay algorithms.

・BEAT: Selects the subdivision of the time set by the Time knob or TAP footswitch. Up is a dotted eighth note, in the middle is a quarter note, and down is a quarter note triplet.

・BYPASS/HOLD: Press once to turn the effect on/off, and hold to enter hold mode. Press twice more quickly to load a favorite preset.

Press and toggle the MODE switch to select additional algorithms.

Press and toggle the BEAT switch to select bypass mode and set kill dry.

・TAP: Press twice to set the delay time at tap tempo. Press and hold the TAP and BYPASS/HOLD foot switches simultaneously for more than 3 seconds to save the current settings to the Favorite Preset.

■Power supply: DC9V-12V, center negative *Batteries cannot be used.
■Current consumption: 100mA@9V, 75mA@12V
■Dimensions: 110 x 104 x 56 mm
■Weight: 350g
