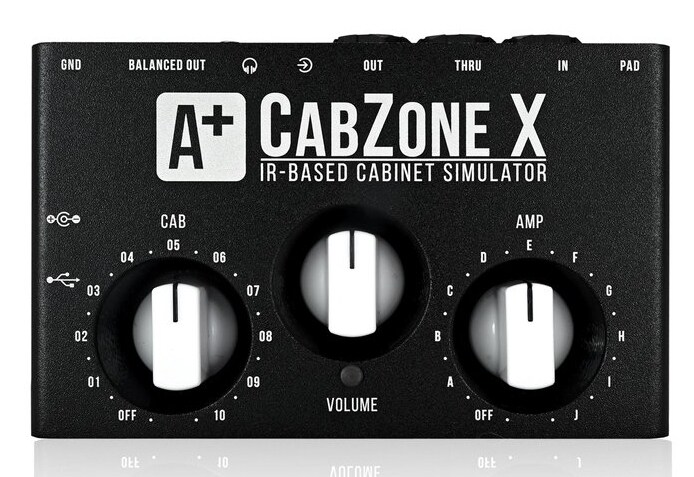

Shift Line / CabZone X

A digital cabinet simulator that uses impulse response to reproduce realistic sound.

■Cabinet Simulator
■Features
-Simple and intuitive UI and standalone operation
-10 types of IR can be selected
-IR can be loaded from Micro-USB
-Built-in 10 types of power amps for guitar and bass
-Thru out
-XLR output with ground lift
-AUX input
-Headphone amp with independent output
-Input overload indicator
-Compact and easy-to-use input/output layout
-Recessed knob for easy installation on pedal board

■Controls
-VOLUME: Adjusts the overall volume (affects all outputs including headphones).
-CAB: Loads 10 types of IR.
-AMP: Selects power amp emulation.
-PAD: Input level selection switch for attenuation. INST: 0dB/500kΩ, LINE: -6dB/20kΩ.
-GND: Ground lift switch for XLR out.
-LED: Displays the current mode. Green in standard mode, blue when USB is connected. Yellow indicates input overload.

■Power supply: DC9V-12V center negative
■Current consumption: 200mA

~From the manufacturer's website~
CabZone X controls the overall tone of the sound. It does not simply simulate a speaker, but simulates the system from the power amplifier, speaker, and microphone. Connect it directly to a mixer or audio interface, and deliver a loud sound to the venue without worrying about microphone feedback, or record a beautiful sound directly from the audio interface to your PC without thinking about unnecessary room resonance. Although it is a functional cabinet simulator, the operation is very simple. It also has an XLR balanced output with ground lift. It has 10 types of power amplifier emulation built in, allowing you to finely adjust the tone. It can reproduce not only clean power amplifiers but also distortion produced by power amplifiers. The power amplifier gain can also be adjusted from the input volume. It also has a built-in headphone amplifier, achieving a high dynamic range. The noise level is also kept low. IR can be loaded via USB.
