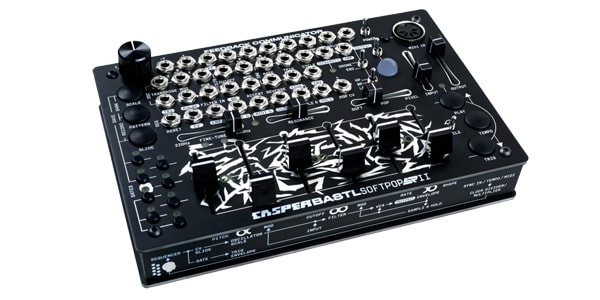

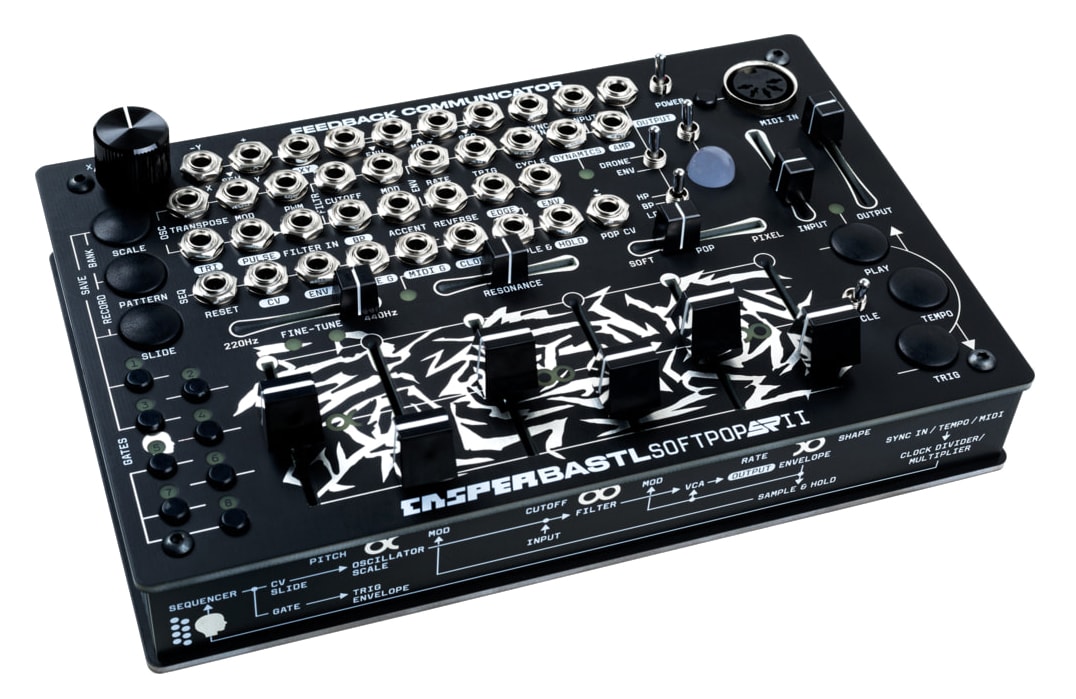

BASTL INSTRUMENTS / SOFTPOP SP2

SOFTPOP SP2 is a semi-modular synthesizer that offers flexible expression and expandability, from melody to noise.

SOFTPOP SP2 is a semi-modular synthesizer that uses subtractive synthesis. By digitally controlling analog circuits, it condenses the basics of modular synths such as oscillators, filters, envelopes, and sequencer functions into a compact size. In addition, powerful functions such as quantizer, sample & hold, MIDI, XY mix, and auto-tuning of analog oscillators have been added. The 37 patch points are fully compatible with other Eurorack modular systems, and it is easy to expand into a large-scale system, so it is recommended as an introductory machine to Eurorack modular.

It also has an INPUT that allows you to apply the beautiful saturation of the filter and VCA to an external sound source.

From melody and rhythm to noise, you can freely control the unique sound unique to BASTL with just this unit.

It is a rare existence that is equally good at both melody and noise, from acid bass lines, angelic chord progressions, distorted beats, and ambient sounds like dripping water. You can enjoy all that artistic subtractive synthesizer has to offer.

■Features
・Innovative design with digital control of a fully analog signal circuit
・37 Eurorack compatible patch points for high flexibility
・Light Orb for psychedelic inspiration
・Triangle core oscillator with PWM input, pulse and triangle output
・Oscillator auto-tuning function and octave width fine-tuning control
・Quantized V/OCT chromatic transpose
・State variable resonant filter with low pass, band pass and high pass modes
・POP control for delicate, distorted, one-of-a-kind sounds
・Flexible attack, decay and cycling envelopes with plenty of control inputs
・Drone/envelope mode switch for VCA
・Music sequencer with many creative tricks
・8 step sequencer, pattern chain for extended length
・Scale quantizer with 8 user-editable scales (sequenceable)
・1 bank of 8 patterns, 8 Banks (save on demand)

Envelope gate per step

Slide option (per step) for acidic sounds

Playback modes to subvert simple patterns

Temporary FX section (ratchet, arpeggio, noise, etc.)

CV, gate and clock outputs from the sequencer

External input for processing audio with dynamics analyzer

Analog sync input

Tempo section with divider/multiplier

MIDI input for synchronization and control

Utility section with XY crossfader and 4-way multi for advanced patching

In the box:

SOFTPOP SP2 SOFTPOP SP2 main unit

Quick start guide

5 patch cables (15cm: Green, Dark Green, Brown, Black, and White)

Micro USB cable (excl. power supply)

Rubber feet

Stickers

Technical specs:

USB power (micro): <250mA

Dimensions: 173 x 112 x 41 mm
- Inputs can receive Eurorack signals
- 16-pin protected Eurorack power connector (requires 5V from bus board <250m
- Eurorack size rail adapters available as open source files (DIY possible)
- All outputs are 5Vpp except PULSE, EDGE, ENV, BP, DYNAMICS, which are 4Vpp.
