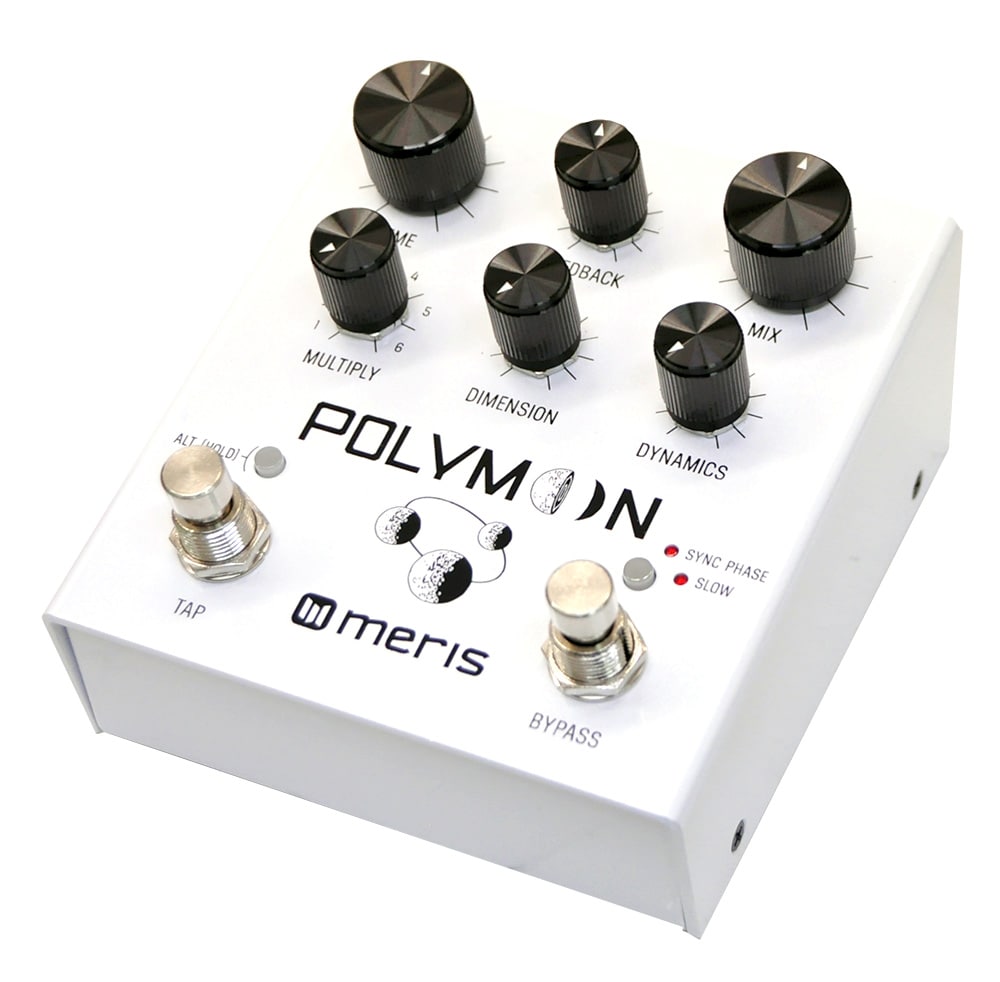

Meris / POLYMOON

This delay pedal is easy to use as a pedal, but produces a complex, dense sound like multiple rack units connected together. It's easy to create sounds ranging from simple delay sounds to modulation delays that make you feel like you're sinking into the ocean.

■Guitar effects
■Delay

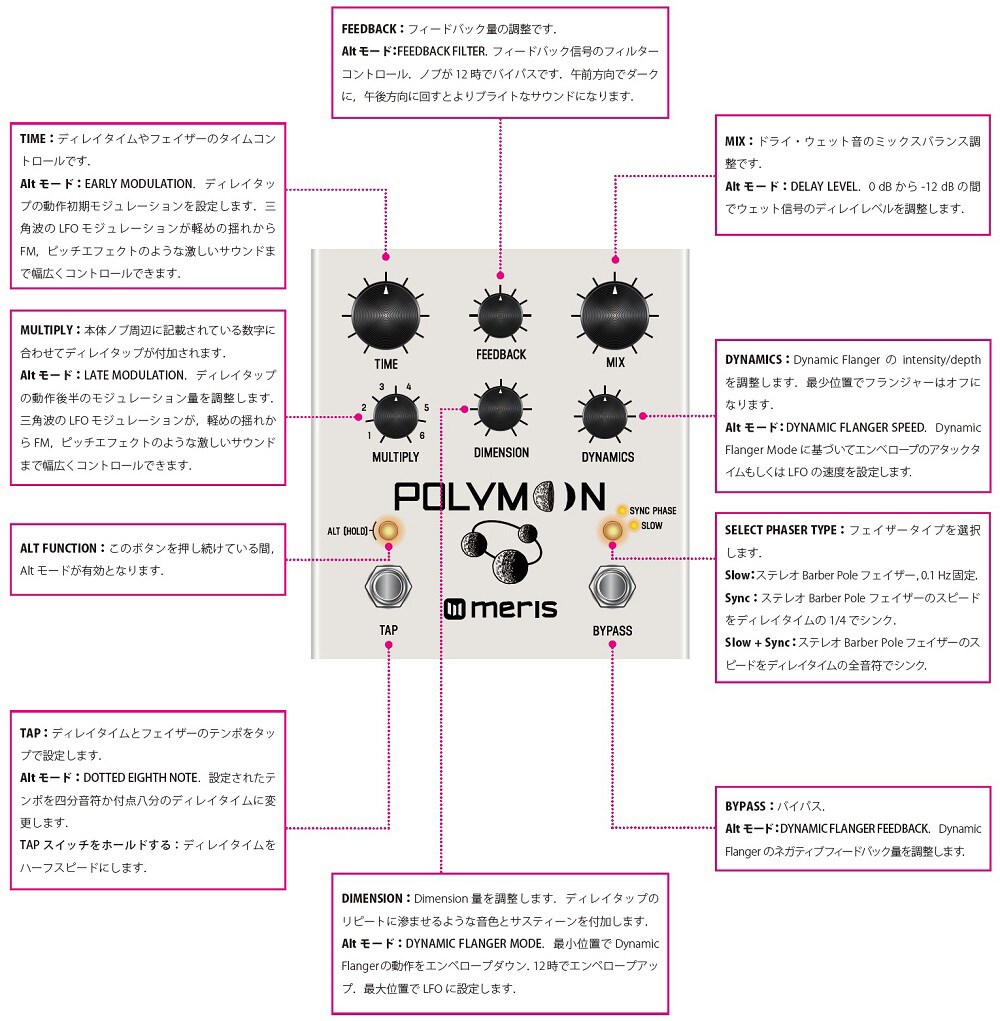

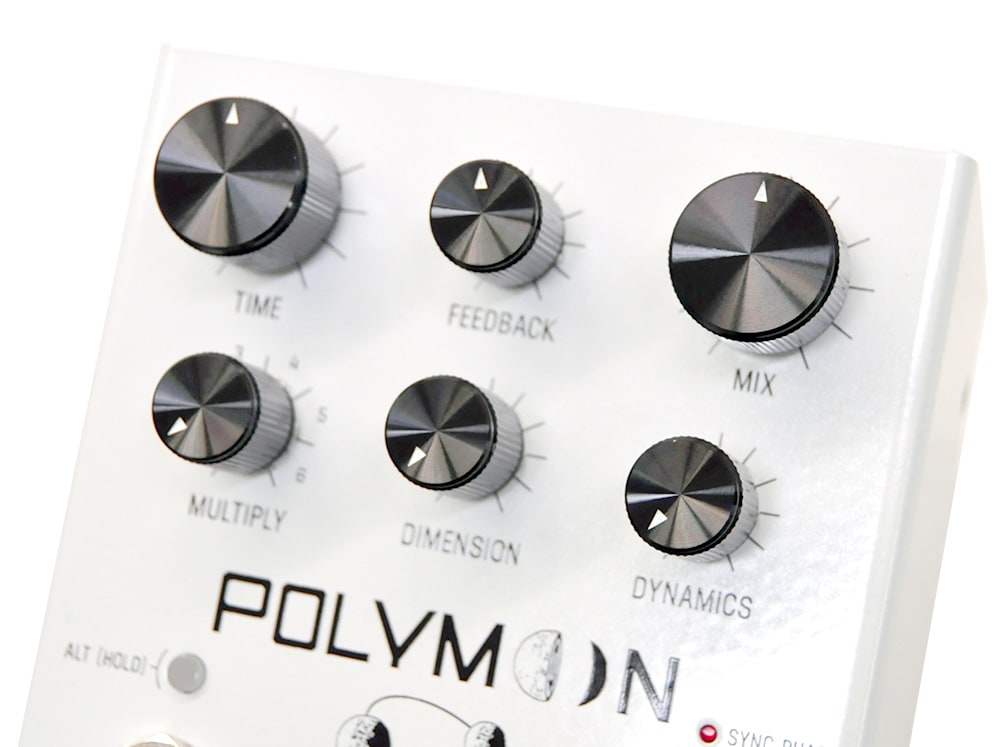

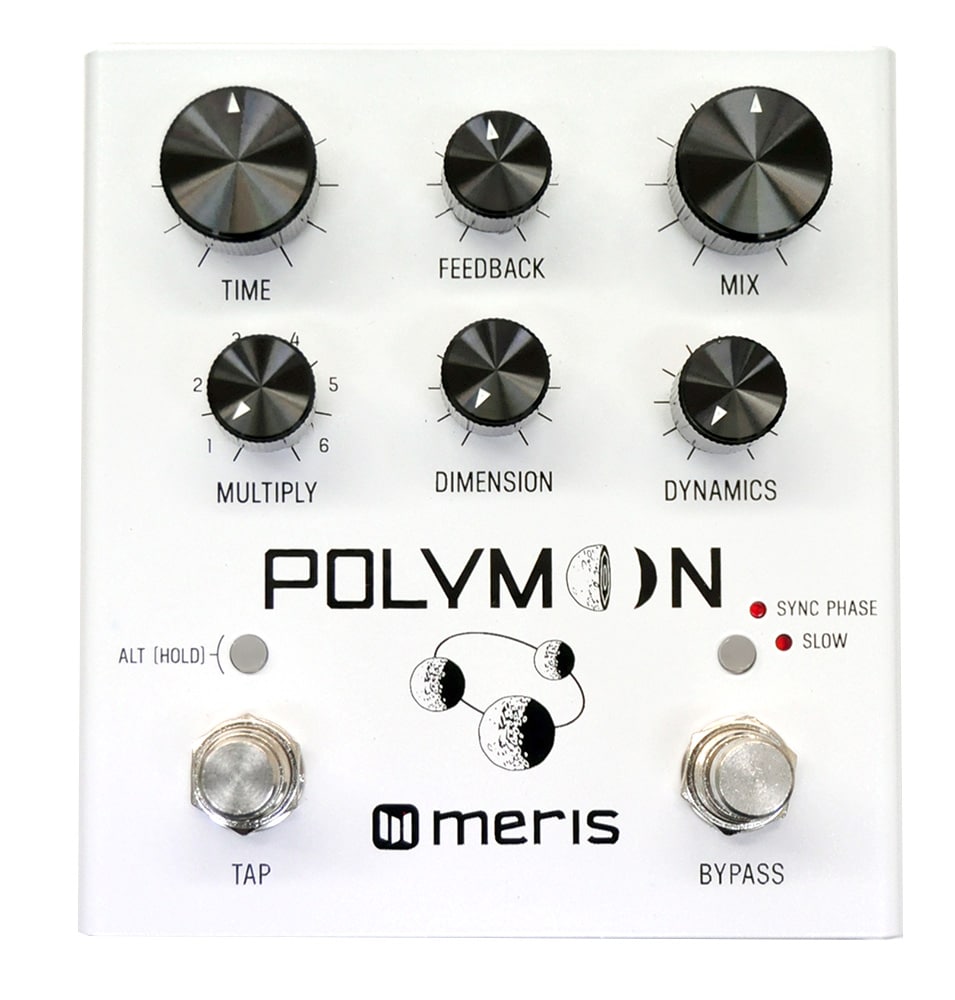

■Controls
-TIME: Controls delay time and phaser time
Alt mode: EARLY MODULATION. Sets the initial modulation of the delay tap

-FEEDBACK: Adjusts the amount of feedback
Alt mode: FEEDBACK FILTER. Filter control of the feedback signal

-MIX: Adjusts the balance of dry/wet sound
Alt mode: DLEAY LEVEL. Adjusts the delay level between 0dB and -12dB

-MULTIPLY: Adds a delay tap according to the numbers written around the knob
Alt mode: LATE MODULATION. Sets the late modulation of the delay tap

-DIMENSION: Adjusts the amount of Dimension. Adds a tinge and sustain that blends into the repeats
Alt mode: DYNAMIC FLANGER MODE. Sets the envelope down at the minimum position, the envelope up at 12 o'clock, and the LFO at the maximum

-DYNAMICS: Adjusts the intensity/depth of the Dynamic Flanger. Flanger is off at minimum position

Alt mode: DYNAMIC FLANGER SPEED. Sets envelope attack time or LFO speed

-ALT FUNCTION switch

-SELECT PHASE TYPE switch

-TAP switch: Hold to half speed delay time

Alt mode: DOTTED EIGHT NOTE. Changes the set tempo from quarter note to dotted eighth delay time

-BYPASS switch:

Alt mode: DYNAMIC FLANGER FEEDBACK. Adjusts the amount of negative feedback for the Dynamic Flanger.
■A/D D/A conversion: 48kHz 24bit
■DSP: 32bit float

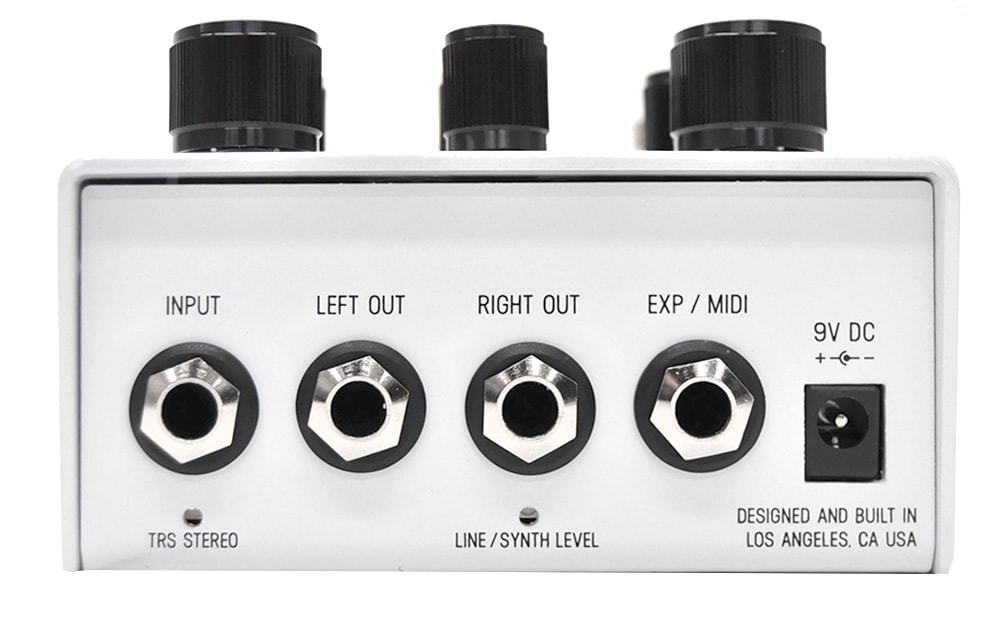

■Maximum input level: +9dBu (instrument input mode), +12.5dBu (synth line input mode)
■Power supply: 9V DC center negative, 2.1mm (sold separately)
■Current consumption: 150mA
■Dimensions: Approx. W108 x D114 x H50mm
■Weight: Approx. 414g

*Specifications and appearance are subject to change without notice.
