CLASSIC PRO / CWE802L

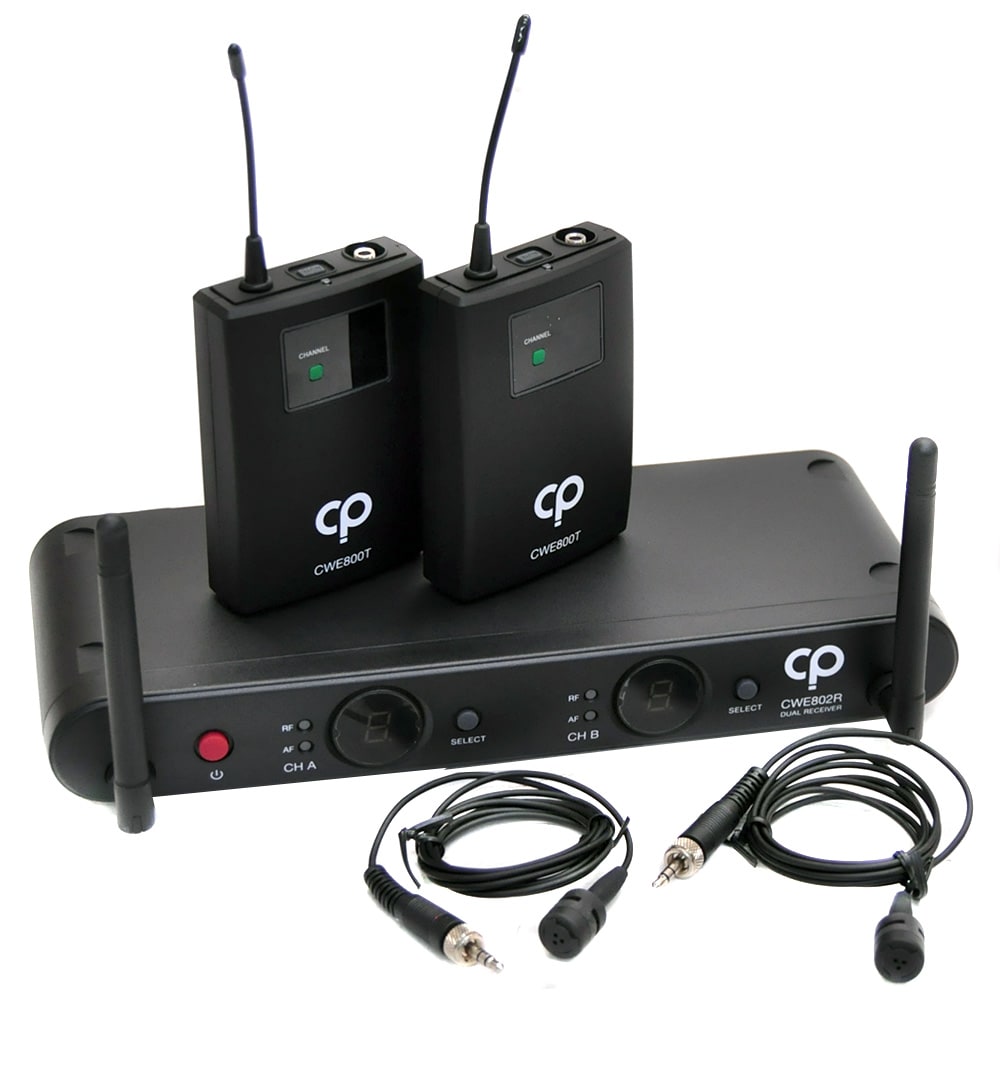

CWE800 series, dual channel receiver and belt pack + 2 lavalier microphones. Ideal for speeches, seminars and presentations. Easy setup by simply matching the receiver and transmitter channels. Up to two sets can be used in the same area.

Specifications
Bandwidth: 800MHz
Number of receiving channels: 2ch
Number of channels: 2ch ・Number of simultaneous use: 4
Antenna type: Diversity
Antenna: Fixed
Audio output connectors: Phone, XLR
Receiving distance: Approx. 90 m (Note: Receiving distance varies depending on radio wave conditions, reflections and interference, and transmitting power)
Power source: Receiver: DC12V (supplied by supplied adapter), Hand mic: DC3V (1.5V AA batteries x 2)
Dimensions (WHD): Receiver: 262 x 42 x 102 mm, beltpack transmitter: 65 x 97 x 25 mm
Weight: Receiver: 410g, Belt Pack Transmitter: 77g, Lavalier Microphone: 24g (including tie pin clip and windscreen), Cable length: 157cm
Accessories: power adapter, cable included (phone-to-phone) x2

■Features
Two channels to be used are selected from among 8 B-band channels. Up to 2 sets (4 waves) can be used within the same area.
Maximum range: approx. 90 m (Note: Radio wave range varies depending on radio wave conditions, reflections and interference, and transmitter output power.)
Easy setup by simply setting the receiver and transmitter channels together with the touch of a button.
Lavalier microphones come with a tie clip and windscreen.
Transmitter is equipped with a MUTE switch GAIN switch.

◆Receiver CWE802R
Receiving frequency : Any 8 channels from UHF 806.125 to 809.750MHz
Transmitting method : PLL frequency synthesizer method
S/N ratio : >100dB
Spurious Response : 70dB (minimum value)
Receiving sensitivity: 52dB
AF response: 50Hz-18kHz
T.H.D: <1% (at1kHz)
Dynamic Range: >100dB
Tone signal: 32.768kHz
Audio Output: Balanced XLR, unbalanced phone
Power supply: 12VDC, current consumption: 520±10mA

◆Belt Pack Transmitter (CWE800T x 2 units)
Transmitting frequency : B-band
Oscillation method : PLL synthesizer method
RF output : 10mW (max.)
Frequency stability : ±0.005
Gain switching : 0dB, -10dB, -20dB (3 steps)
Tone frequency : 32.768kHz
Spurious Radiation : >60dB
Battery: 3V DC (1.5V AA battery x2), current consumption: 120±10mA

CWE4L
Lavalier Microphone for CWE800 series
Type: Uni-directional condenser microphone
Sensitivity: -47 ± 3dB
Frequency Response: 100 - 20,000Hz
SN Ratio: 60dB
Connector: 3.5mm screw plug
Dimensions: 12φx37mm, cable length 1,570mm
Accessories: Windscreen, tie pin clip
