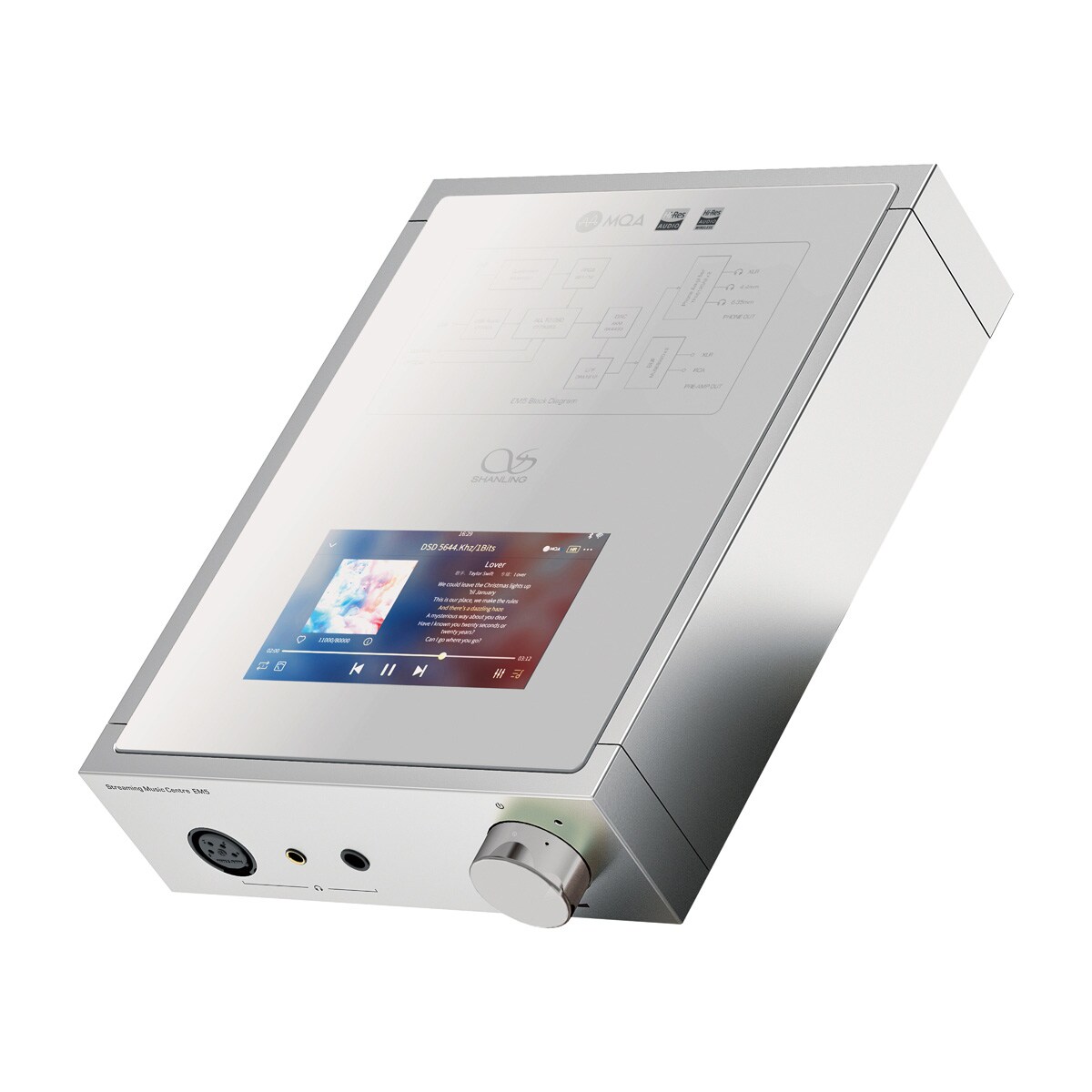

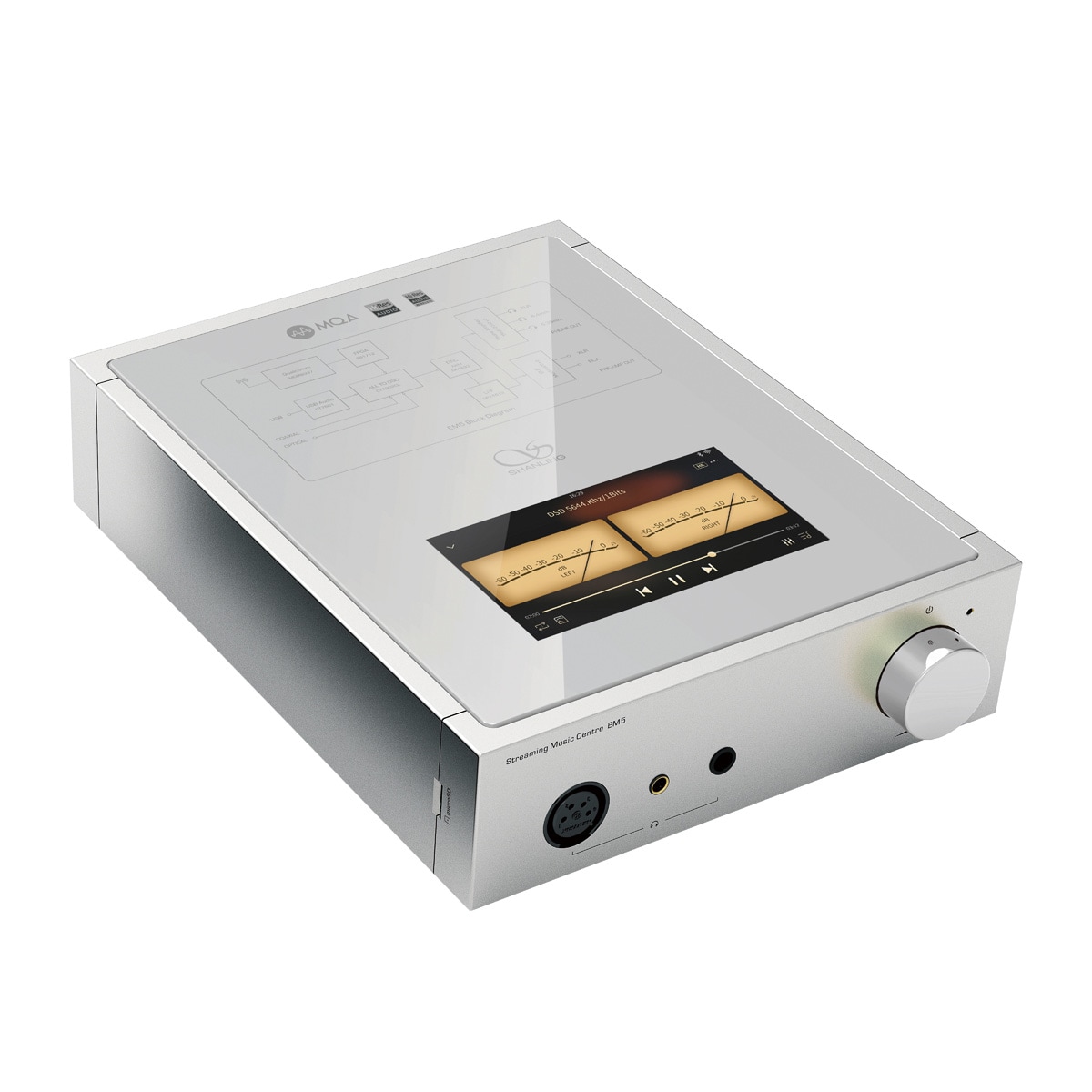

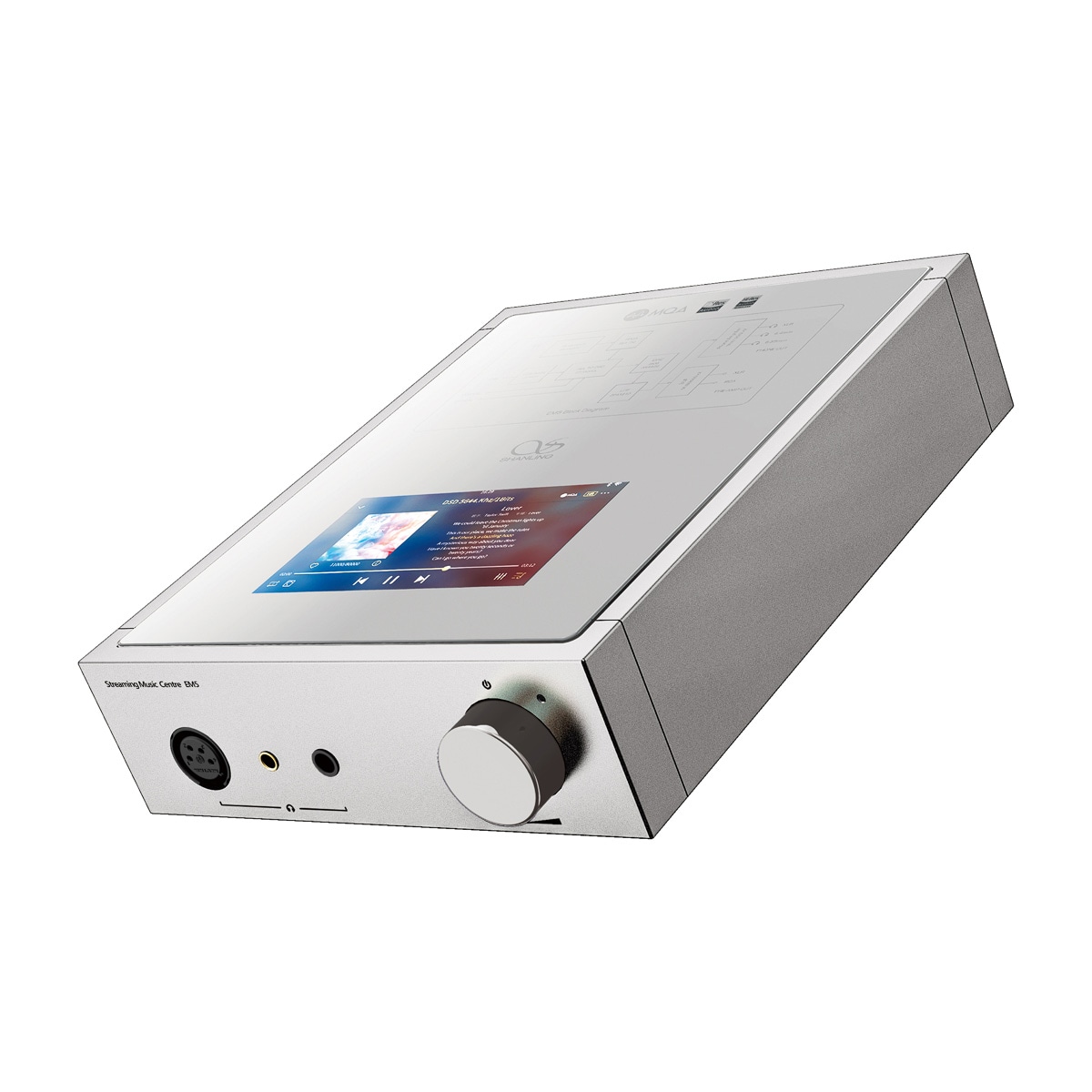

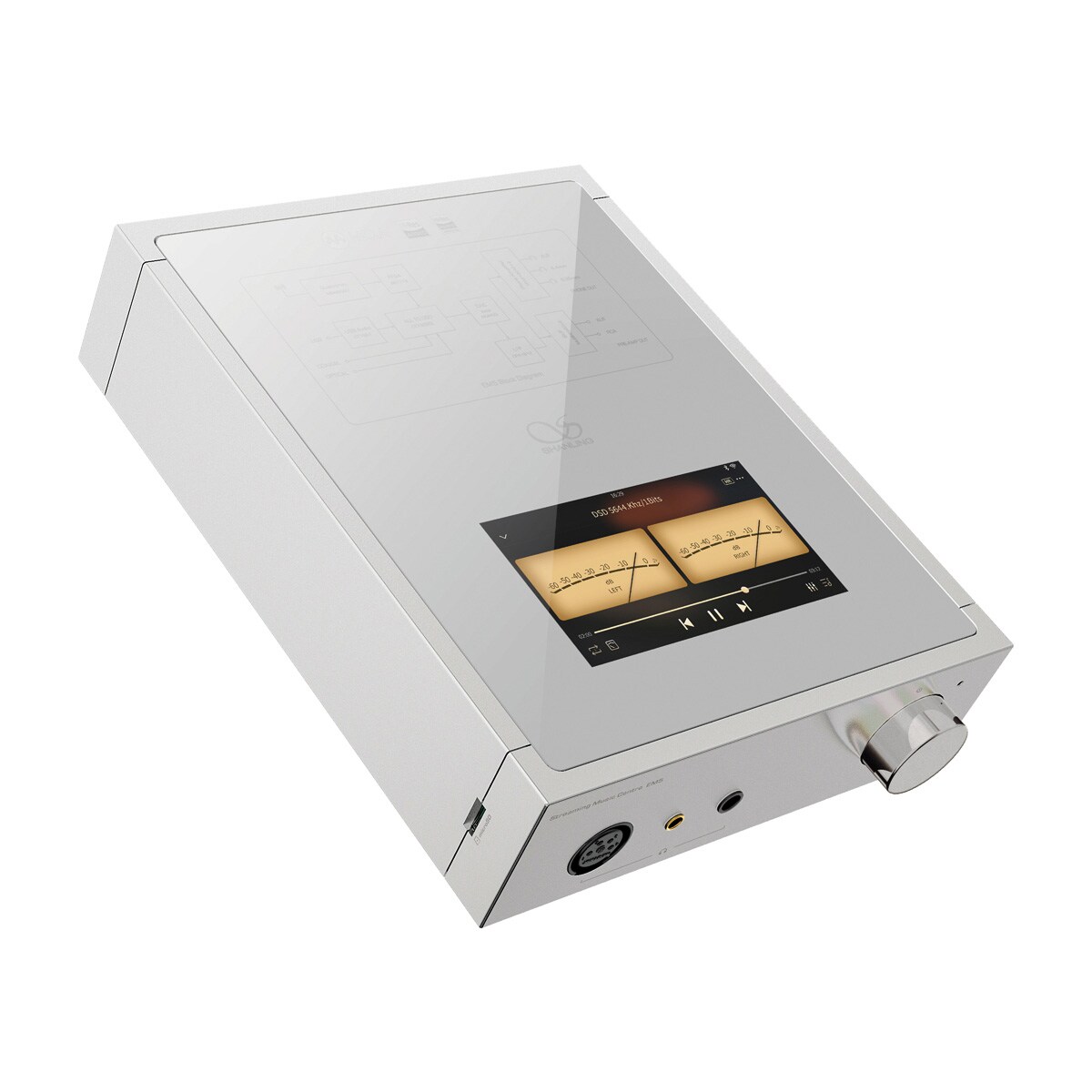

Shanling/EM5 シルバーデスクトップ・ミュージックセンター

Shanling / EM5 シルバーデスクトップ・ミュージックセンター

Shanling / EM5は、ストリーミング再生もカバーする多機能デスクトップオーディオシステムです。

■ Body size: 188*55*238 mm
■ LCD: 4.7 inch 1280 x 720 HD screen
■ OS: Android-based custom OS
■ Supported formats: DSF / DFF / DXD / APE / FLAC / WAV / AIFF / AIF / DTS / MP3 / WMA / AAC / OGG / ALAC / MP2 / M4A / AC3 / M3U / M3U8 / MQA / ISO (* DST format not available) Correspondence)
■ High resolution support: Maximum PCM 768 kHz/32bit, 22.4MHz DSD (native playback)
■ Coaxial digital input/output: Maximum PCM192kHz/24bit (input/output)
■ Optical digital input/output: Maximum 96kHz/24bit (input), 192kHz/24bit (output)
■ USB audio output: Maximum PCM 768 kHz/32bit, 22.4MHz DSD
■ USB-DAC compatible (input): Maximum PCM 768 kHz/32bit, 22.4MHz DSD
■ Gain setting: 4 steps (Low/Mid/High/Turbo)
■ DAC chip: AKM AK4493EQ
■ Supported Micro SD card: Supports up to 2TB
■ Digital filter: You can choose from 6 different filters
■ Power supply: 110-120V
■ Wi-Fi compatible frequency band: 2.4GHz/5GHz
■ Bluetooth version: 4.2
■ Bluetooth transmission: LDAC/LHDC/aptX HD/aptX/SBC
■ Bluetooth reception: LDAC/SBC

■ Single-ended output characteristics (6.35mm headphone output)
- Output level: Low Gain, 0.8V (15.99mW @ 32Ω)
- Mid Gain, 1.35V (56.56mW @ 32Ω)
- High Gain, 2.5V (195mW @ 32Ω)
- Turbo Gain, 4.3V (570mW @ 32Ω)
- S/N ratio: 118dB @ 32Ω (A characteristic, Turbo Gain)
- Channel separation: 70dB @ 32Ω
- Dynamic range: 118dB @ 32Ω (A characteristic, Turbo Gain)
- THD + N: 0.0027% @ 32Ω (A characteristic, @ 1V)
- Output impedance: <0.8Ω

■ Balanced output characteristics (XLR/4.4mm headphone output)
- Output level: Low Gain, 1.4V (61mW @ 32Ω)
- Mid Gain, 2.3V (165amW @ 32Ω)
- High Gain, 4.3V (577mW @ 32Ω)
- Turbo Gain, 7.2V (1620mW @ 32Ω)
- S/N ratio: 120dB @ 32Ω (A characteristic, Turbo Gain)
- Channel separation: 106dB @ 32Ω
- Dynamic range: 120dB @ 32Ω (A characteristic, Turbo Gain)
- THD + N: 0.0009% @ 32Ω (A characteristic, @ 0.7V)
- Output impedance: <1.6Ω

■ RCA output characteristics
- Output level: Low Gain, 413mV
- Mid Gain, 780mV
- High Gain, 1.47V
- Turbo Gain, 2.77V
- S/N ratio: 117dB (A characteristic)
- Channel separation: 106dB
- THD+N: 0.0008% @ 32Ω (A characteristic, @ 0.5V)

■ XLR x2 output characteristics
- Output level: Low Gain, 824mV
- Mid Gain, 1.5mV
- High Gain, 2.9V
- Turbo Gain, 5.5V
- S/N ratio: 119dB (A characteristic)
- Channel separation: 105dB
- THD + N: 0.0008% @ 32Ω (A characteristic, @ 0.5V)
