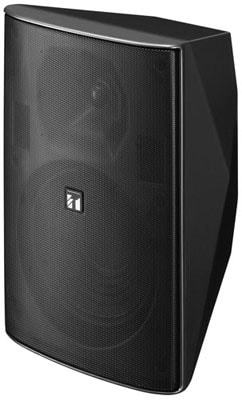

TOA / F-2000BM

A wide-directivity, compact two-way speaker system with a highly efficient, wide bandwidth, and high input resistance design. By using the included or optional brackets, it can be installed according to the installation location and purpose.

■Enclosure type: Bass reflex type ■Rated input: 60W ■Rated impedance: 170Ω (60W), 330Ω (30W), 670Ω (15W), 3.3kΩ (3W) ■Output sound pressure level: 92dB (1W, 1m) when installed in a semi-free sound field 93dB (1W, 1m) when installed in a semi-free sound field (with horn adapter attached) ■Frequency response: 65-20,000Hz -10dB when installed in a semi-free sound field ■Crossover Bar frequency: 2.5kHz ■Directivity angle Horizontal: 110°, Vertical: 100° Horizontal: 80°, Vertical: 80° (when horn adapter is attached) ■Speakers used Low frequency: 20cm cone type High frequency: 25mm dome tweeter ■Speaker type: L class (92dB (A) or higher when measured with the second signal of the voice alarm sound according to the Fire Service Act Enforcement Regulations) ■Input terminal: Push terminal ■Finish Enclosure: HIPS, black (similar to Munsell N1.0 color) Punching net: Surface-treated steel plate, black (similar to Munsell N1.0 color), painted Joint fittings, wall fittings: Rolled steel plate, t2.0, black (similar to Munsell N1.0 color), painted Speaker fittings: Aluminum die-cast, black (similar to Munsell N1.0 color), painted ■Dimensions: 244 (W) x 373 (H) x 235 (D) mm ■Weight: 7.4 kg (including included fittings) ■Accessories Speaker fittings... 1, Joint fittings... 1, Wall fittings... 1, Fitting assembly screws... set, Horn adapter... 1, Horn adapter mounting screws... 4 ■Optional items Ceiling mounting fittings: HY-CM20B (Used when installing the speaker horizontally) Cluster fittings: HY-CL20B Speaker stand: ST-16A *Bolts and nuts for attaching the fittings to the wall or ceiling are not included. Please prepare the appropriate items separately.
