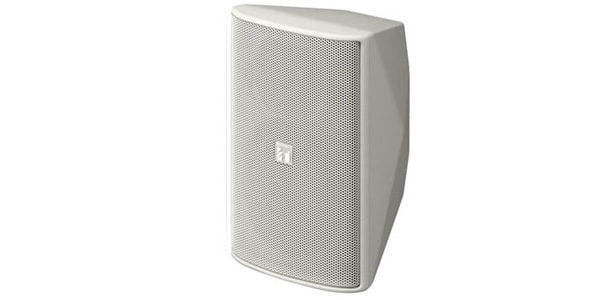

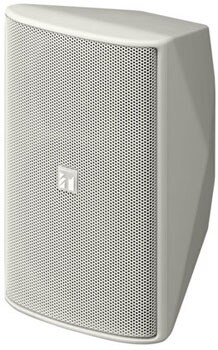

TOA / F-1000WMWP

A wide-directivity 2-way compact speaker system with a highly efficient, wide-bandwidth, and high-input resistance design. It can be installed according to the installation location and purpose using the included or optional brackets. In addition, the waterproof performance meets IPX4, so it can be used outdoors as a permanent installation.

■Enclosure type: Bass reflex type ■Rated input: 15W ■Rated impedance: 670Ω (15W), 2kΩ (5W), 3.3kΩ (3W), 10kΩ (1W) ■Output sound pressure level: 87dB (1W, 1m) when installed in a semi-free sound field ■Frequency response: 85 to 20,000Hz, -10dB when installed in a semi-free sound field ■Crossover frequency: 5kHz ■Directivity angle Horizontal: 90° Vertical: 90° ■Speakers used Low-frequency: 10cm cone type High-frequency: Balanced dome tweeter ■Speaker type 5W, 15W: L class (92dB(A) or more when measured with the second signal of the voice alarm sound according to the Fire Service Act Enforcement Regulations) 3W: M class (87dB(A) or more when measured with the second signal of the voice alarm sound according to the Fire Service Act Enforcement Regulations) 1W: S class (84dB(A) or more when measured with the second signal of the voice alarm sound according to the Fire Service Act Enforcement Regulations) B (A or higher) ■ Input terminal: Push terminal ■ Waterproof performance: IPX4 ■ Operating temperature range: -10°C to +50°C ■ Finish Enclosure: HIPS, white (similar to Munsell N9.5 color) Punching net: Surface-treated steel plate, white (similar to Munsell N9.5 color), anti-rust coating Joint fittings, wall fittings: Stainless steel, t1.5 Speaker fittings: Aluminum die-cast, white (similar to Munsell N9.5 color), coating ■ Dimensions: 130 (W) x 202 (H) x 131 (D) mm ■ Weight: 2 kg (including included fittings) ■ Accessories Speaker fittings... 1, Joint fittings... 1, Wall fittings... 1, Fitting assembly screws... set, Terminal cover... 1, Terminal cover mounting screws... 4 ■ Sold separately Mounting band: YS-60B *Bolts and nuts for attaching the fittings to a wall or ceiling are not included. Please prepare separately the items appropriate for your needs. *Caution regarding places of use: Do not use in places where corrosion may occur, such as indoor pools, bathrooms, or near the coast.
