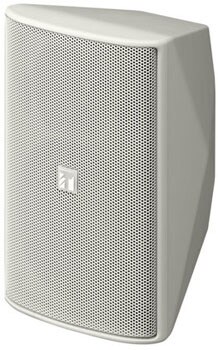

TOA / F-1000W

高能率、広帯域、高耐入力設計の広指向性2ウェイコンパクトスピーカーシステム。付属金具や別売金具を使用し、設置場所や用途に合わせた取り付けが可能。カラーはホワイト。

■ Enclosure type: Bass reflex type
■ Allowable input
Continuous pink noise: 30W
Continuous program: 90W
■ Rated impedance: 8Ω
■ Output sound pressure level: 87dB (1W, 1m) When a semi-free sound field is installed
■ Frequency characteristics: 85 to 20,000 Hz -10 dB when a semi-free sound field is installed
■ Crossover frequency: 5kHz
■ Directivity angle
Horizontal: 90°
Vertical: 90°
■ Speaker used
For low frequencies: 10 cm cone type
For high frequencies: Balanced dome tweeter
■ Input terminal: Push terminal
■ Finish
Enclosure: HIPS white (Munsell N9.5 approximate color)
Punching net: Surface-treated steel plate white (Munsell N9.5 approximate color) painting
Joint metal fittings, wall metal fittings: rolled steel plate t1.6 white (Munsell N9.5 approximate color) painting
Speaker metal fittings: Aluminum die-cast white (Munsell N9.5 approximate color) painting
■ Dimensions: 130 (W) x 202 (H) x 131 (D) mm
■ Mass: 1.8 kg (including attached metal fittings)
■ Accessories: Speaker metal fittings...1, joint metal fittings...1, wall metal fittings...1, metal fittings assembly screws...one set
■ Sold separately
Board hanger metal fittings: HY-BH10B
Ceiling mounting bracket: HY-CM10W (used when installing speakers horizontally)
Cluster metal fittings: HY-CL10B
Speaker stand: ST-16A

*Bolts and nuts for attaching metal fittings to walls and ceilings are not included.
Please prepare the one that suits your purpose separately.
