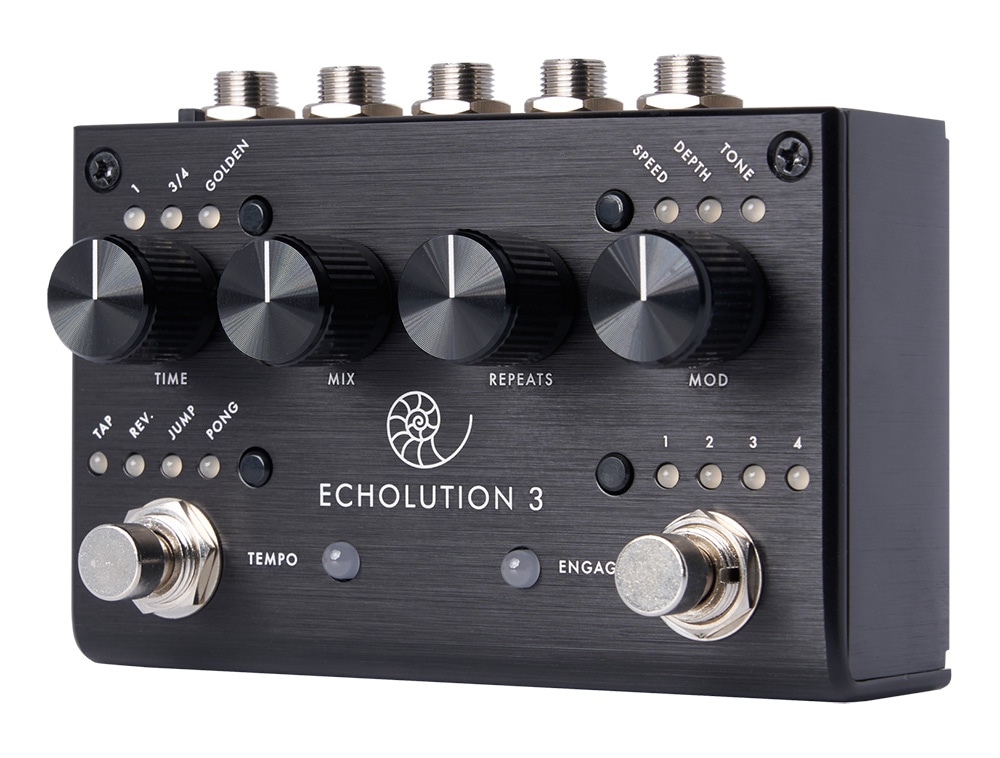

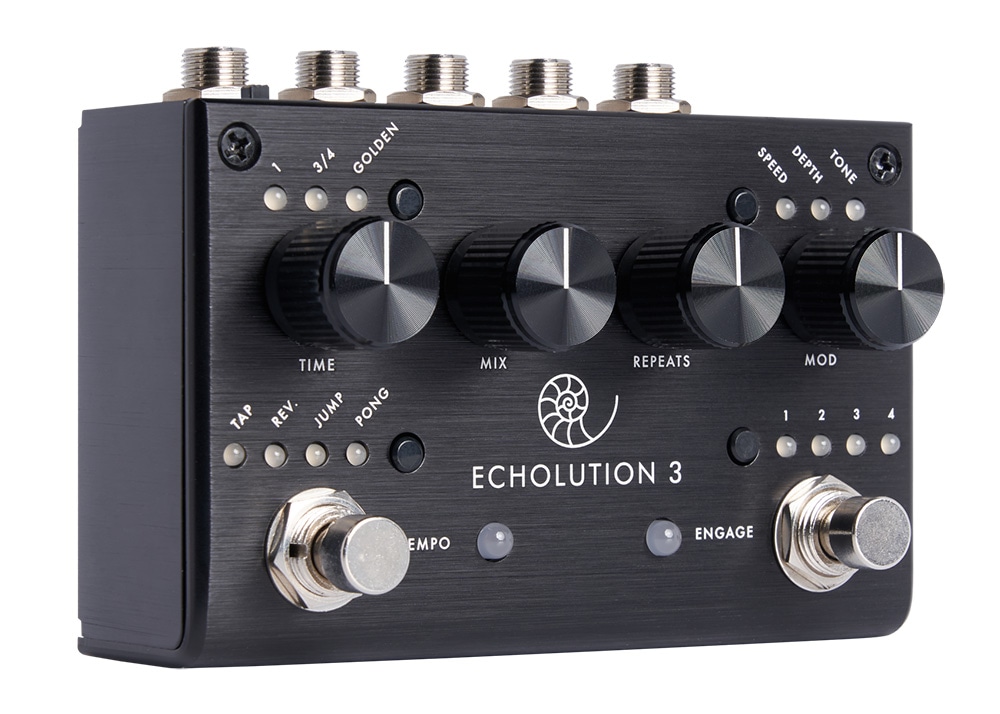

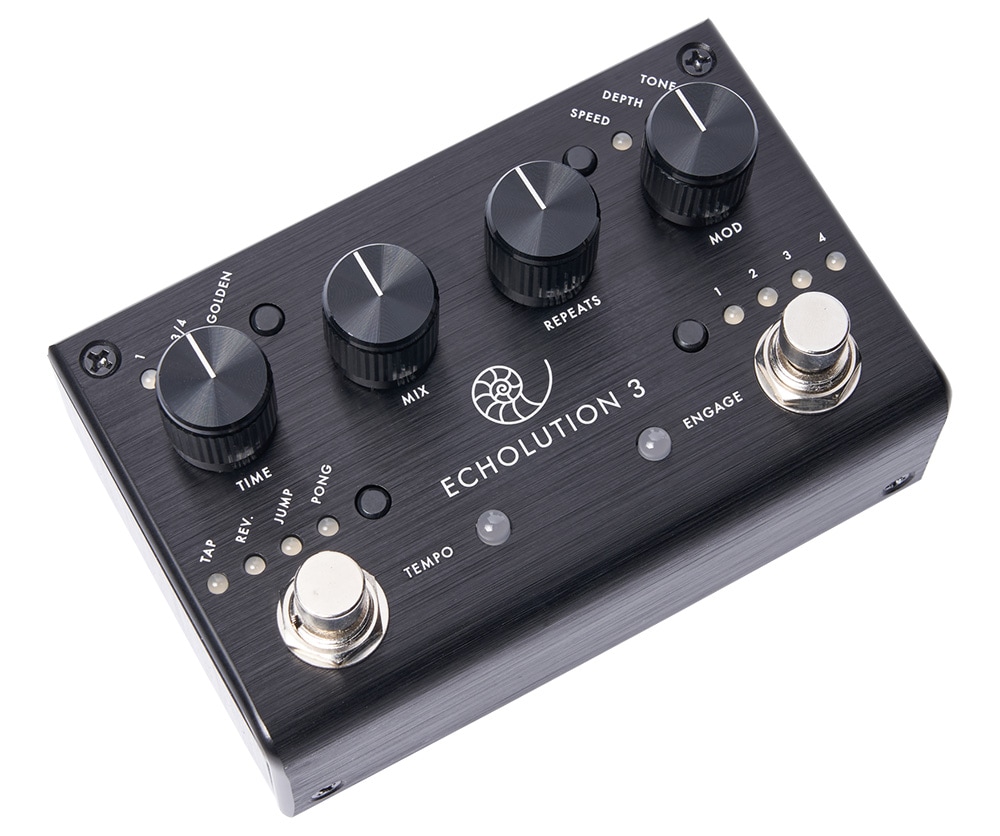

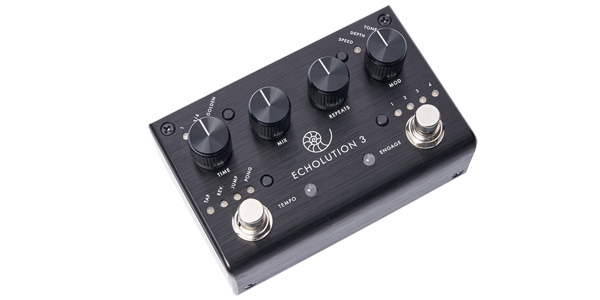

PIGTRONIX / Echolution 3

Stereo modulation delay with countless sound variations. In a compact body, it's packed with features to create delay sounds like you've never heard before.

■ Effector for guitar
■ Stereo delay

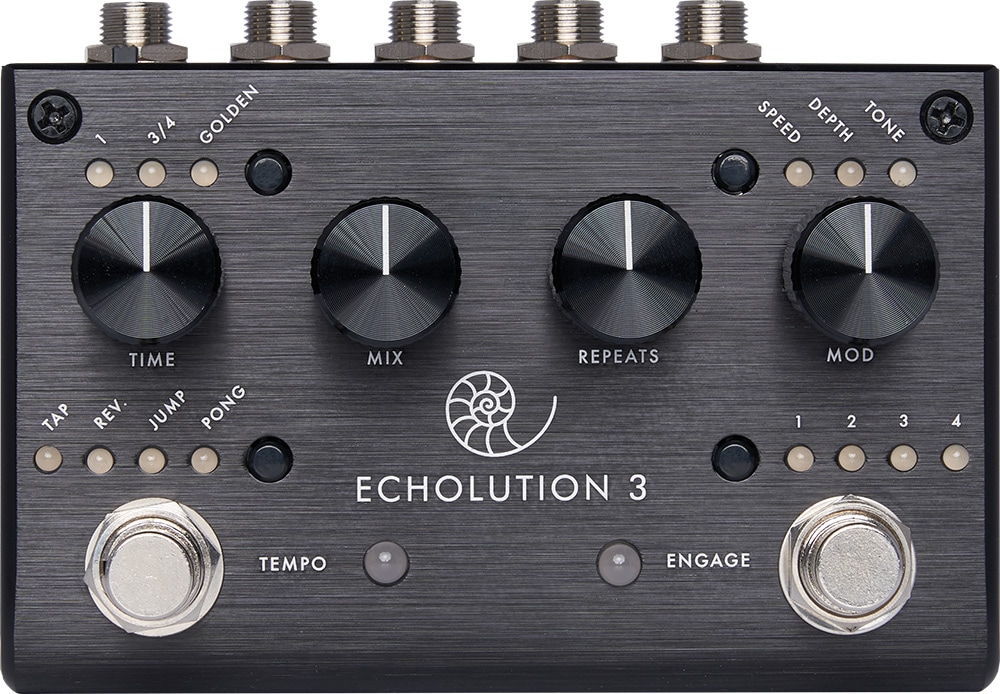

■ Controls
- Time: Sets the length of the delay line. Overrides tap tempo and vice versa. Select sub-divisions with the small push button. Can activate any two sub-divisions at once.
- Mix: Sets the volume level of the delay signal.
- Repeats: Sets the amount of regeneration in the delay line.
- Mod: Select and set the modulation Speed, Depth, and Tone. Hold push button to sync Speed to tap tempo.
■ Foot switches: Engage, Tempo
Preset Select: Push to toggle through presets, press and hold to select. To save a preset after making changes, press and hold. Presets can be toggled and selected using only footswitches (see manual).
■ Special FX: Reverse makes the delay line go backwards. Jump makes the delay line jump up one octave. Pong (activated with a push and hold) causes echoes to alternate between the left and right channels, meant to be used in stereo.

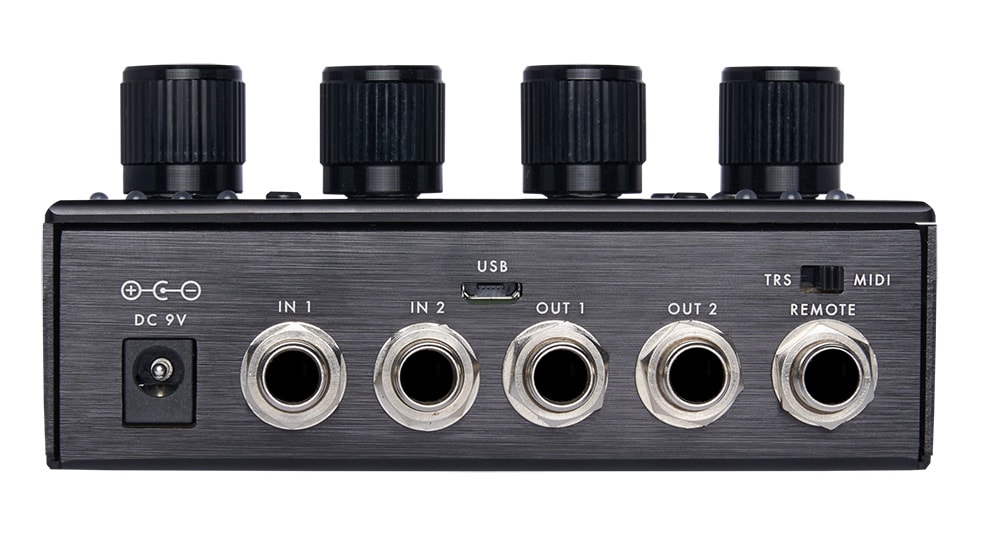

■ Terminal: In 1/In 2, Out 1/Out 2, Remote, USB (for firmware update)
■ Power supply: DC9V adapter (sold separately)
■ Current consumption: 100mA
■ Dimensions: W114.5 x D82.5 x H56mm
■ Weight: Approximately 450g
