CLASSIC PRO / CXA048

This is an AUDIO/DMX extender equipped with two sets of four XLR output terminals. By connecting it to another CAX series with a LAN cable, two sets of four channels (4 channels x 2 sets) can be transmitted, for a total of eight channels of audio or DMX signals.

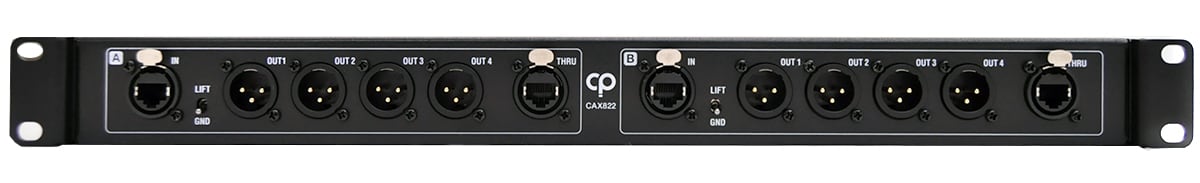

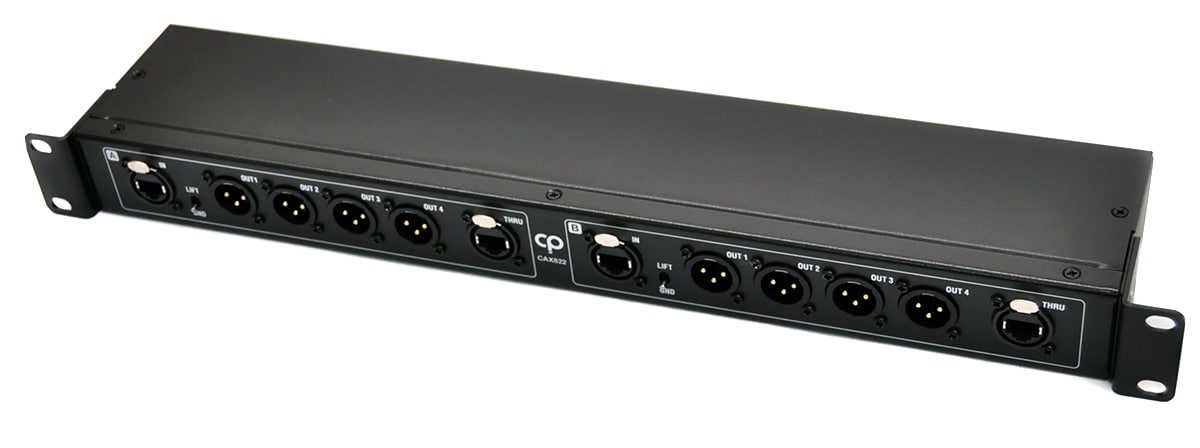

■Audio/DMX multi-cable box ■2 sets of 4 male XLR (outputs), total of 8 channels ■2 LAN connectors IN (A/B) ■2 LAN connectors THRU (A/B) The signal input to LAN IN is output from both the XLR OUTPUT and the LAN THRU. ■Ground lift switch (installed separately for outputs A/B) ■How to use Connect to other CAX series with a LAN cable. *Please use a shielded CAT5e or CAT6 Ethercon cable. *Not compatible with BDM104 and BDF104 as the pin arrangement is different. *Pin arrangement 1: 3+ 2: 3- 3: 2+ 4: 1+ 5: 1- 6: 2- 7: 4+ 8: 4- ■Size: 48.2x4.4x9.1cm
