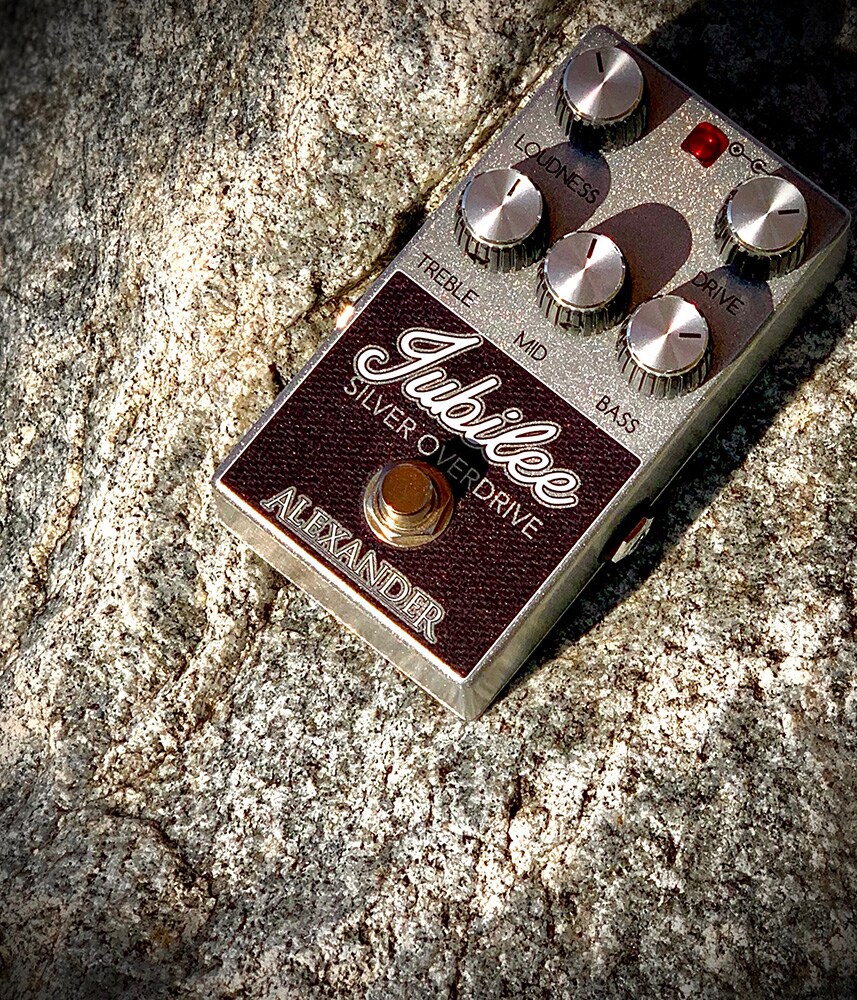

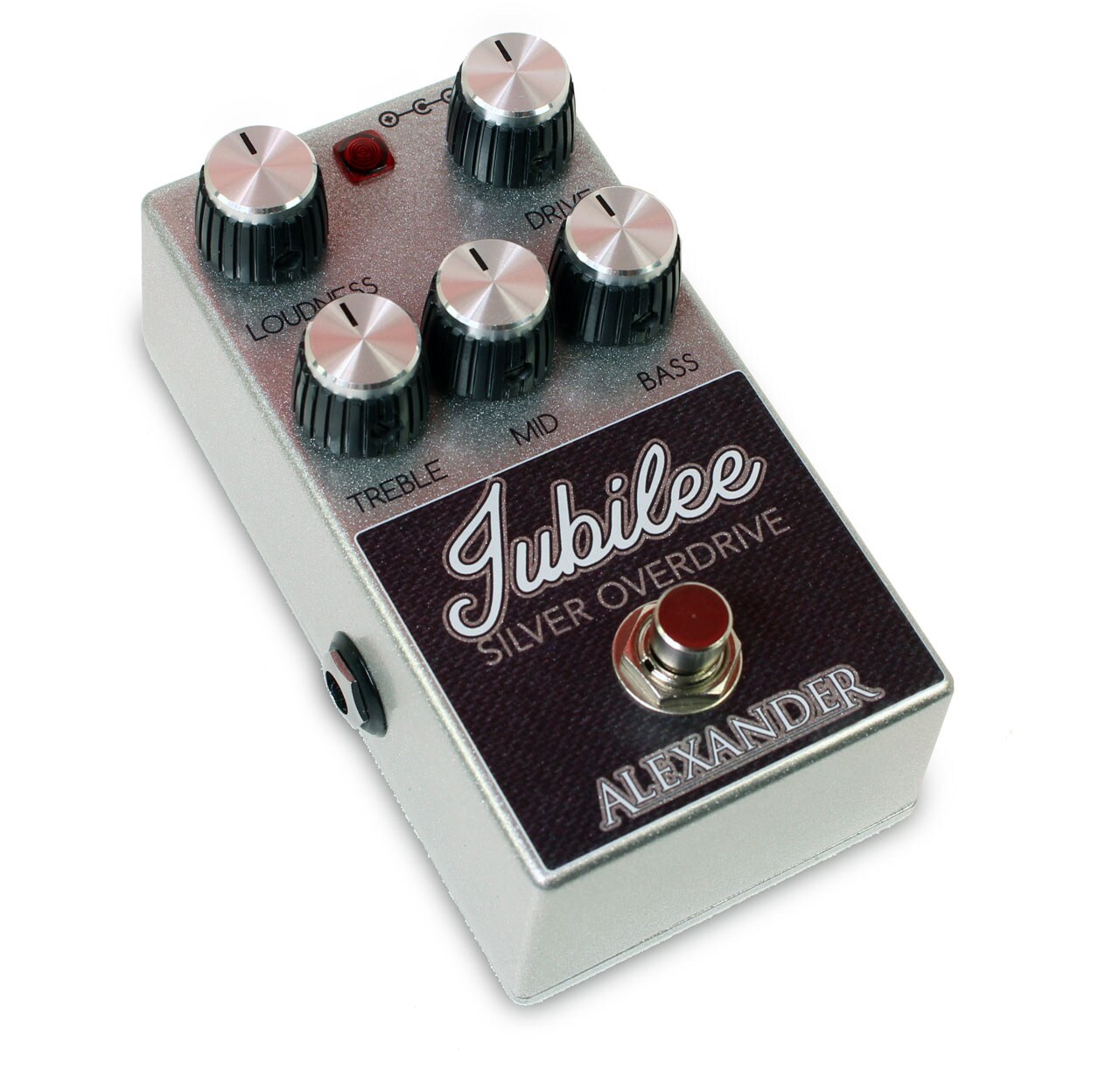

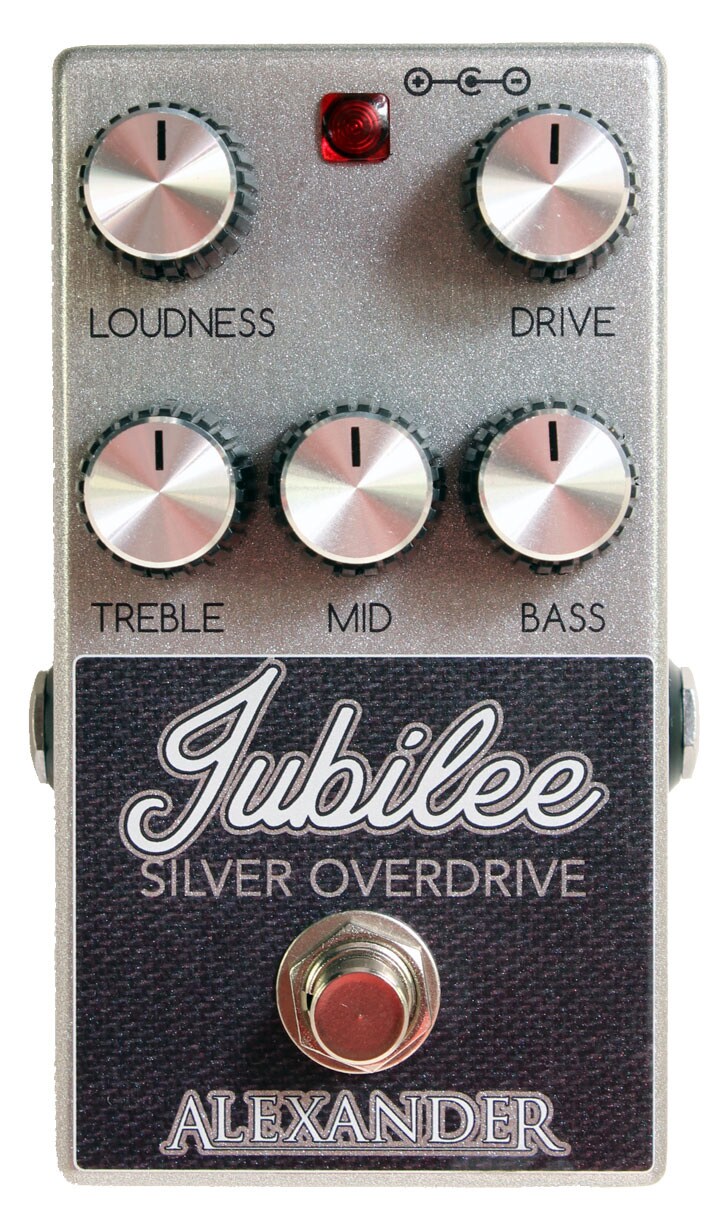

ALEXANDER PEDALS / Jubilee Silver Overdrive

The Jubilee Silver Overdrive is a pedal inspired by the drive sound produced by the British amps used by LA metal bands in the 1980s. This unit is based on the effect pedal of the same name, which was produced in small numbers in Japan in the past. Alexander Pedal's adopted the same circuit as at that time, and packed all its functions in a small housing.

■ Effector for guitar
■ Overdrive
■ Jubilee Silver Overdrive
■ Controls: LOUDNESS, DRIVE, TREBLE, MID, BASS
■ Switch: True Bypass
■ Input / output terminals: Input, Output, DC In
■ Power supply: 9VDC center minus (recommended power supply sold separately: Music Works / DC0913B)
* Allows up to 18V input
* DC compatible plug size: Inner diameter 2.1 mm / Outer diameter 5.5 mm
■ Current consumption: 25mA
■ Size (maximum external dimensions): H57 x L122 x W74mm
■ Weight: Approximately 289g

* This unit is a true bypass specification that uses relay-type switching that opens and closes the switch with an electric signal. Due to its characteristics, if the power is turned off while the effect is off, it will be in a true bypass state and the signal from the guitar will be output as it is, but if the power is turned off while the effect is on, the switch will open and close. The signal from the guitar will not be output because it will not be possible.
