Headphones / Earphones
WIRELESS BLUETOOTH
True wireless earphones

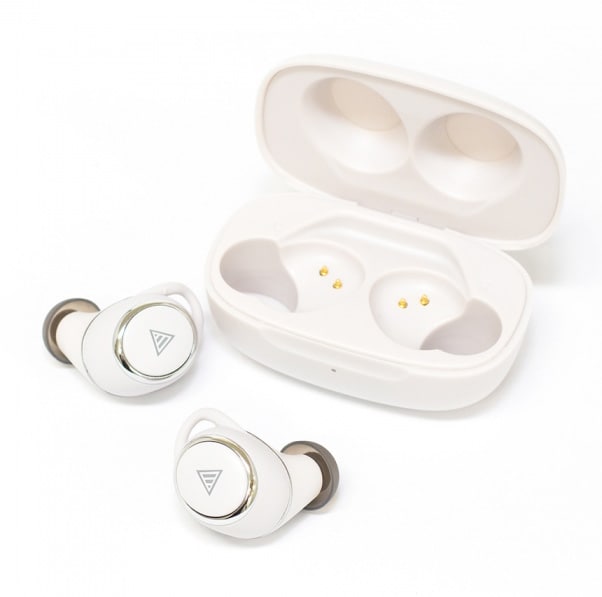

ANIMA/ANW01 White Completely wireless earphone ACO-ANW01-WHT

ANIMA / ANW01 White Completely wireless earphone ACO-ANW01-WHT

Variations

ANIMA / ANW01 is a completely wireless earphone that uses the newly developed "CoClear diaphragm" and is sound-tuned under the supervision of TAKU INOUE. Born as a sub-brand of the earphone brand "Acoustune", it features an exquisite sound balance that incorporates a unique high-quality acoustic design.

■ Designed and sound supervised by Hi-Fi earphone brand Acoustune
-The complete wireless earphone "ANW01", which is the first product of ANIMA, which is a sub-brand of the Hi-Fi earphone brand Acoustune, is supervised by Acoustune, which is the mother body in the basic design and acoustic design. It can be said that high basic performance including sound quality as TWS is indispensable because it is used every day. Based on the experience of earphone development by Acoustune, researched and designed how to hear music in the crowd. It has excellent sound quality even in various surrounding environments, and achieves a natural sound balance that does not make you tired of listening even when used for a long time.
Other auto pairing support. Compatible with Bluetooth 5.1 and AAC / aptX codecs. Equipped with a MEMS type microphone. Equivalent to waterproof standard IPX7. Equipped with an external sound capture function.
* The auto pairing and external sound capture functions require a firmware update after connecting to the app.

■ Newly developed small diaphragm "CoClear diaphragm" adopted
-Unlike wired earphones, which are tuned with the highest priority on sound quality, TWS is required to be designed for use in more various environments. In addition, there are many factors that are required, such as the need to reduce the size and weight in consideration of mounting other parts such as the mounting of a control board and battery. ANIMA has determined that it is difficult to reach the target standard with a conventional TWS driver in the process of acoustic design. Therefore, in order to reach the target sound quality, we developed a dedicated dynamic driver unit. A newly developed "CoClear diaphragm" is used inside the driver.
The CoClear diaphragm is a 6mm diameter compact diaphragm developed to incorporate the knowledge cultivated by Acoustune earphones in the development of its own Milinks driver into the ANIMA brand TWS. In addition, parts are selected and adjusted to maximize the potential of the CoClear diaphragm, such as an external magnetic circuit, N52 grade magnet that realizes a strong magnetic flux density, and a star grill that optimizes vibration. I did. This makes it possible to reduce the size and weight and reach the target sound quality while considering the balance with the mounting of many parts unique to TWS.
■ Sound tuning supervised by TAKU INOUE
-The final sound tuning of ANW01 is supervised by [TAKU INOUE], who is also active as a sound producer, composer, and DJ. TAKU INOUE You can set the basic "MIDNIGHT", "NIGHT", and "DAY" tuning patterns that you tuned yourself with the dedicated app "ANIMA Studio (* iOS / Android)". Is possible.

[MIDNIGHT: Pattern 1 (default)]
-Tuning aimed at enjoying the latest game music, dance music, anime songs, etc., based on the sound that emphasizes balance.

"I was conscious of the points that I felt comfortable when listening to songs at the club at midnight, and adjusted the sound with particular emphasis on the deep low frequencies such as the sub-bass and the glittering high frequencies and depth. If you want to immerse yourself in it, please go here! "

[NIGHT: Pattern 2]
・ Adjust the volume of low frequencies based on MIDNIGHT. Tuning for the sound making of the 2010s.

"I was particularly conscious of the low frequencies slightly above the sub-bass, which cannot be covered by MIDNIGHT, and adjusted the high frequencies accordingly. Maybe it's a band sound that uses raw bass or drums. This may be more comfortable. "

■ Equipped with Advent Voice (change of voice during operation) function
-ANW01 is equipped with an "Advent Voice" function. By linking with the dedicated application "ANIMA Studio", it is possible to easily switch the voice file of the system guidance at the time of operation. In general TWS, only the operation sounds installed at the time of purchase of the main unit or multiple built-in operation sounds can be switched, but in ANW01, the user can freely switch the voice file registered in ANIMA Studio. Is possible. In addition, voice files will be added as paid download contents at any time. The number of voice files that can be used will be further expanded by changing the registered files in ANIMA Studio. Instead of using inorganic mechanical sounds, you can set the voice file according to the music you are listening to and your mood to moisturize your life.
■ Package design drawn by En Morikura
-Adopted a package design drawn by the popular illustrator [Morikura En] who has a reputation for drawing the "cute" gestures and moments of girls in everyday life with gentle colors and touches. ANW01, a highly functional yet simple and timeless design, expresses a world view that blends into the user's lifestyle for a long period of time and becomes a life partner.

■ ANIMA exclusive function expansion application "ANIMA Studio"
-"ANIMA Studio" is a dedicated app that expands the functions of ANIMA products. It has a function to change the system sound of the ANIMA product itself, a function to change the sound quality of the product itself, and can be customized by the user.
* Compatible with both iOS and Android. OS version iOS 14.1 or above, Android 9.0 or above.

◇ Main body
■ Driver: 6mm diameter dynamic driver (CoClear diaphragm)
■ Output sound pressure level: 102dB / mW
■ Playback frequency band: 20Hz to 20kHz
■ Impedance: 16Ω

◇ Bluetooth
■ Version: 5.1
■ Profile: A2DP / AVRCP / HSP / HFP / SPP
■ Supported codecs: SBC / AAC / aptX?

◇ Microphone
■ Format: MEMS type
■ Directivity: Omnidirectional
■ Sensitivity: -42dB

◇ Power supply
■ Battery: Built-in lithium polymer battery
■ Power capacity: Earphone (one side): 55mAh, Charging case: 300mAh
■ Rated input: DC 5V / 300mAh
■ Continuous playback time: Approximately 6 hours (* when connected to aptX), when used with a charging case: Approximately 15 hours at maximum)
■ Continuous talk time: Approximately 6 hours
■ Continuous standby time: Approximately 75 hours
■ Full charge time: Earphone: Approximately 1 hour and 30 minutes, Charging case: Approximately 3 hours
■ Number of full charges: 1.5 times (* When the charging case is fully charged)

◇ Other
■ Auto pairing: Correspondence
■ External sound capture function: Compatible
■ Waterproof standard: IPX7 equivalent
■ USB shape: USB Type-C (charging only)
■ Dedicated app: ANIMA Studio: iOS 14.1 / Android 9.0 or above
■ Size (W x H x D): Earphone (one side): W16 x H20 x D21 (mm), Charging case: W55 x H33 x D25 (mm)
■ Weight: Earphone (one side): Approximately 4g / Charging case: Approximately 24g
