Blackmagic Design / HYPERD/ST/DCHP

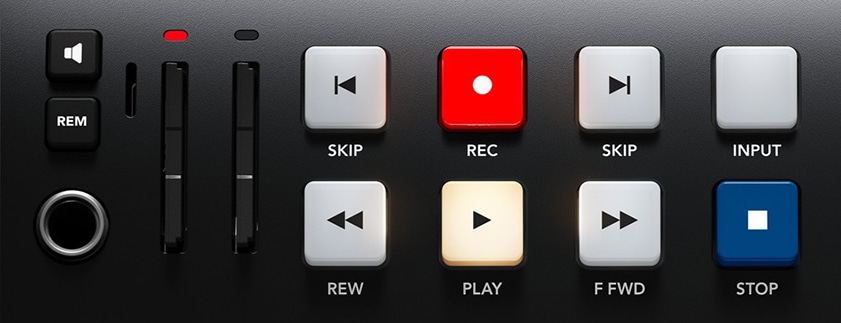

[Official Japanese product] In addition to all the features of the Mini model, it also comes with advanced transport controls, front panel headphones and speakers, 6G-SDI, and fill and key outputs!

■Recorder compatible with ProRes recording and playback Connection ■SDI video input: 1 ■SDI video output: 2 ■SDI monitoring output: 1 ■SDI rate: 270Mb, 1.5G, 3G, 6G. ■HDMI 2.0 Video Inputs: 1 ■HDMI 2.0 Video Outputs: 1 ■Built-in Speaker: Mono ■Audio Output: 1 x 6.35mm headphone jack ■Screen: 2.2 inch LCD ■Timecode Connections: 1 x BNC input, 1 x BNC output, ■Reference Connections: 1 x BNC input, 1 x BNC output, Tri-level sync or black burst ■SDI Audio Input: 16 channels of embedded audio ■SDI Audio Output: 16 channels of embedded audio ■HDMI Audio Input: 8 channels of embedded audio ■HDMI Audio Output: 8 channels of embedded audio ■Remote Control: 1 x RS-422 input, 1 x RS-422 output ■Recorder Configuration: Via user interface or Blackmagic HyperDeck Ethernet Protocol ■Ethernet: 1 Gb/s ■Computer Interface: 1 x USB Type-C 3.0 (up to 5 Gb/s) for external drive recording, webcam output, software configuration and updates Formats ■SD Video Format: 525i59.94 NTSC, 625i50 PAL ■HD Video Formats: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 ■2K DCI Video Formats: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI ■Ultra HD video formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 ■4K DCI video formats: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI ■SDI standards: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2084, SMPTE 2108-1 ■Supported SDI metadata: HD RP188, Closed Caption CEA-708. HDR Metadata Supported over SDI ■Supported HDMI Formats: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI Audio Sampling: Television Standard Sample Rate (48 kHz/24-bit) Video Sampling: 4:2:2 YUV Color Precision: 10-bit Color Space: REC 601, REC 709, REC 2020. 33-point 3D LUT can be applied to SDI monitor output HDR Support: Hybrid Log-Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 ■Supported multi-rates: Auto-detection of SD, HD, 6G-SDI ■Copy protection: Capture from copyrighted HDMI sources is not possible. Please verify copyright ownership before capturing or distributing content. Media ■Media: 2 SD card slots, 1 USB-C 3.0 expansion port (for external recording in SD, HD, 2K DCI, Ultra HD, 4K DCI) ■Media type: UHS-I and UHS-II SD cards ■Media format Can be formatted to exFAT (Windows/Mac) or HFS+ (Mac) ■SIZE: 210(W)x44.2(H)x177(D)mm Applicable recorders *The warranty period for this product is 1 year from the manufacturer.
