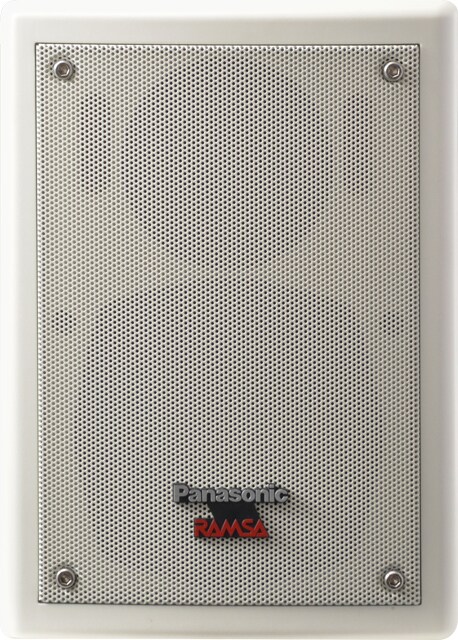

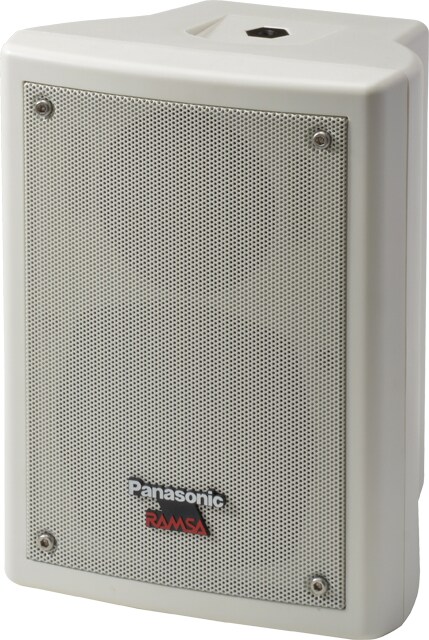

PANASONIC(RAMSA) / WS-NF015-W

RAMSA/WS-NF015-W (for indoor use) is a near-field speaker that supports both low and high impedance and provides wide frequency characteristics and dynamic sound for everything from announcements to background music playback.

■Near-field speaker ■For indoor use ■10cm ■Compatible with both high impedance and low impedance ■White ■1 unit ■Uses a high-quality two-way speaker system Provides wideband frequency characteristics and dynamic sound, from announcements to background music playback. ■Equipped with a low impedance/high impedance changeover switch Equipped with a changeover switch for low impedance mode, which connects one speaker to an amplifier one-to-one for powerful sound, and high impedance mode, which connects multiple speakers to one amplifier for efficient sound. ■Comes with dedicated bracket and metal fittings required for installation Comes with a dedicated bracket and fall prevention wire that can be freely attached to the ceiling, wall, vertically or horizontally. ■Type: 2-way bass reflex type ■Input impedance*1: High impedance: 100 series, 70 series 330 Ω, 670 Ω, 1.3 kΩ Low impedance: 8 Ω ■Rated input (high impedance): 100 series: 30 W, 15 W, 7.5 W 70 series: 15 W, 7.5 W, 3.7 W ■Allowable input (low impedance): 60 W (continuous program) / 30 W (RMS)*2 ■Output sound pressure level: 86 dB (1 m / 1 W) ■Frequency response: 80 Hz to 20 kHz (-20 dB) ■Input terminal: Connector-type terminal block (4-pole) ■Speakers used: Low-frequency: 10 cm cone woofer High-frequency: 2.5 cm dome tweeter ■Operating temperature range: -10 ℃ to +50 ℃ ■Dimensions: 167 mm (width) 225 mm (height) 149 mm (depth) ■Weight Approx. 2.5 kg *1 Can be switched using the impedance change switch on the rear *2 Rated noise power specified in JIS C5532:2014
