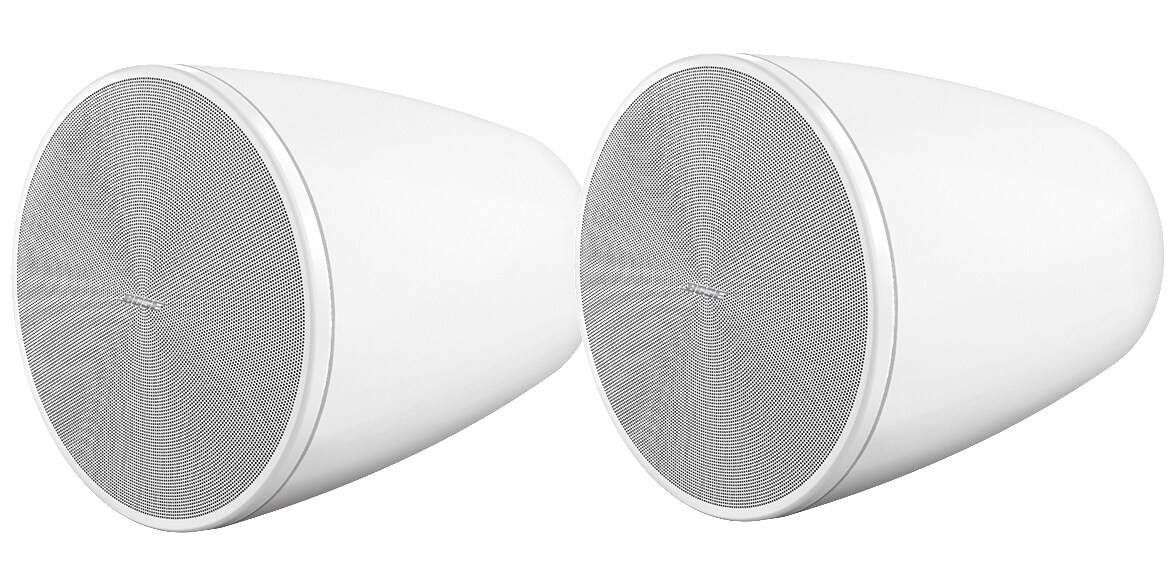

BOSE/DesignMax DM6PE PAIR WHITE pendant type speaker

BOSE / DesignMax DM6PE PAIR WHITE pendant type speaker

Variations

DesignMax DM6PE PAIR WHITE is a BOSE pendant speaker. A coaxial 2-way design is adopted to achieve an output of 125 W. .. Equipped with a 6.5-inch woofer and a 1.25-inch coaxial tweeter placed in the Dispersion Alignment system. Plays a frequency range from 62 Hz to 20 kHz. The color is white.

■ Pendant type speaker
■ 6.5 inches
■ 8Ω
■ 200W (PGM)
■ 100V / 70V compatible
■ White
■ Pair

■ Rich bass and clear and clear treble with coaxial 2-way design
? Provides excellent sound without DSP or EQ. For those who want a higher quality sound, Bose's original DSP and amplifier are recommended. Improve performance and response at all volume levels with Bose Speaker EQ and Smart Bass processing

■ Achieve a uniform listening experience throughout the space
--The Dispersion Alignment system matches the tweeter pattern with the woofer's acoustic pattern for a uniform listening experience.

■ Elegant design that blends into any interior
--The bezel's inconspicuous grill. The logo is removable.

■ Easy to install with industry standard accessories
Includes Euroblock connector.

■ Outdoor specifications
Equipped with a powder-coated steel grill and complies with IP55 outdoor standards

■ High-quality appearance that combines functionality
――The pendant type speaker uses a recessed single point suspension system that can hide the metal fittings and extra length for maintenance. Installation work can be done easily by keeping the extra length of the cable without worrying about the appearance after installation.

■ Frequency characteristics (+/- 3 dB)
75-20,000 Hz
■ Nominal coverage (horizontal x vertical)
115 ° cone
■ Allowable input (peak)
400 W
■ Maximum sound pressure level @ 1m
110 dB
■ Frequency range (-10 dB)
62-20,000 Hz
■ Allowable input (continuous)
100 W
■ Sensitivity (SPL / 1W @ 1 m)
89 dB
■ Nominal impedance
8 Ω (during transformer bypass)
■ Recommended high-pass protection
60 Hz (minimum 24 dB / octave) filter

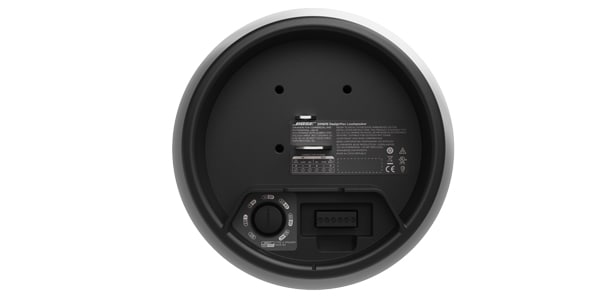

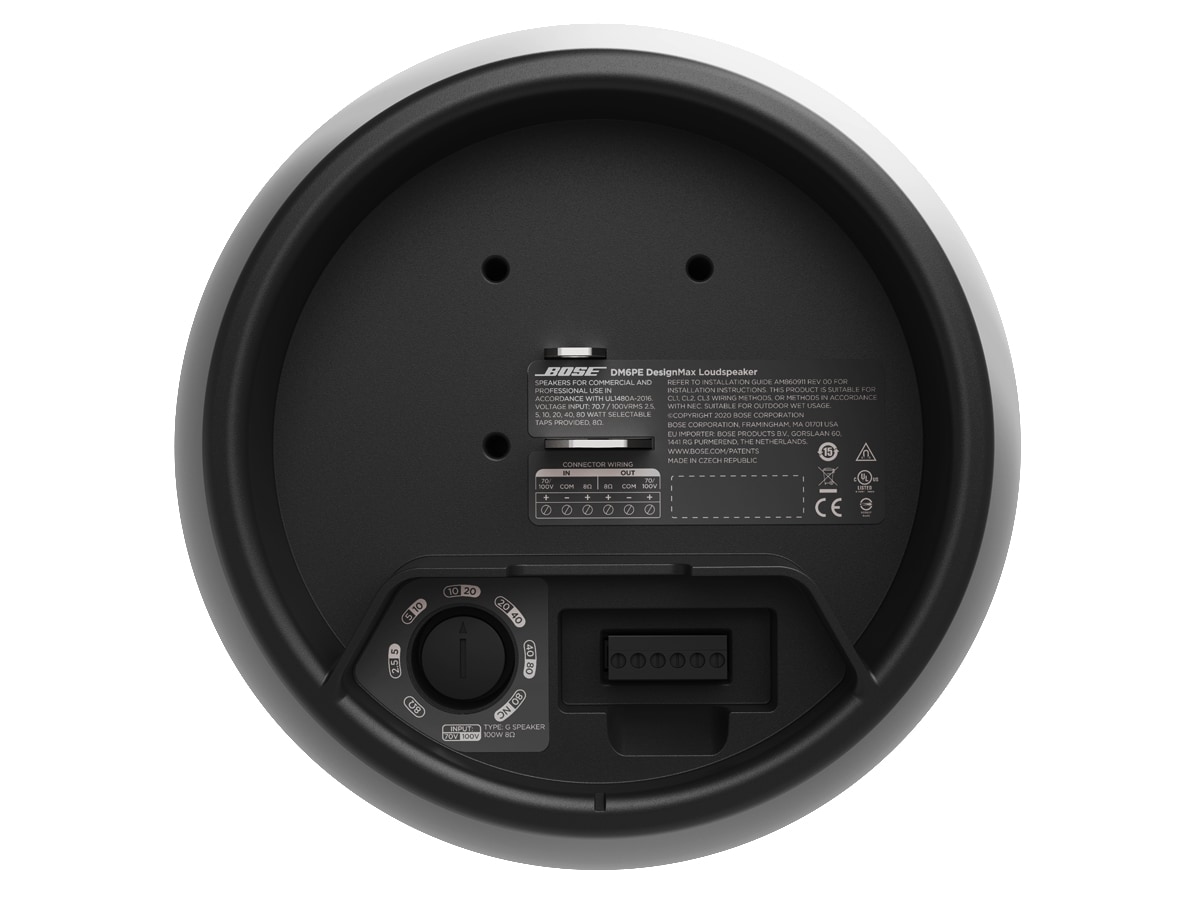

■ Transformer tap
70V: 2.5, 5, 10, 20, 40, 80 W, bypass
100V: 5, 10, 20, 40, 80 W, bypass
■ Low frequency 6.5 inch (165 mm) woofer x 1
■ High range 1.25 inch (32 mm) neodymium dome tweeter x 1, coaxial mount, weatherproof specifications
■ Nominal impedance 8 Ω (during trans bypass)
■ Connector
Euroblock 6-pin connector with loop-through
Compatible with 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size cables
■ Hanging / mounting
Equipped with 1 suspension mounting point and 1 safety cable mounting point. Includes 1 adjustable Gripple suspension cable (4.5 m).
■ Product dimensions (enclosure diameter x depth)
308 x 375 mm
■ Cable dimensions
Length: 4.57 m
Diameter: 2 mm
■ Mass (single) Approximately 5.7kg
■ Packing mass (pair) Approximately 15.01 kg
■ Accessories
Includes 1 adjustable Gripple suspension cable system, 4 cable ties, and 1 weatherable input cover
■ Optional accessories
Adapter for threaded rods
Conduit adapter
Gripple Pendant Suspension Cable Pair Kit
