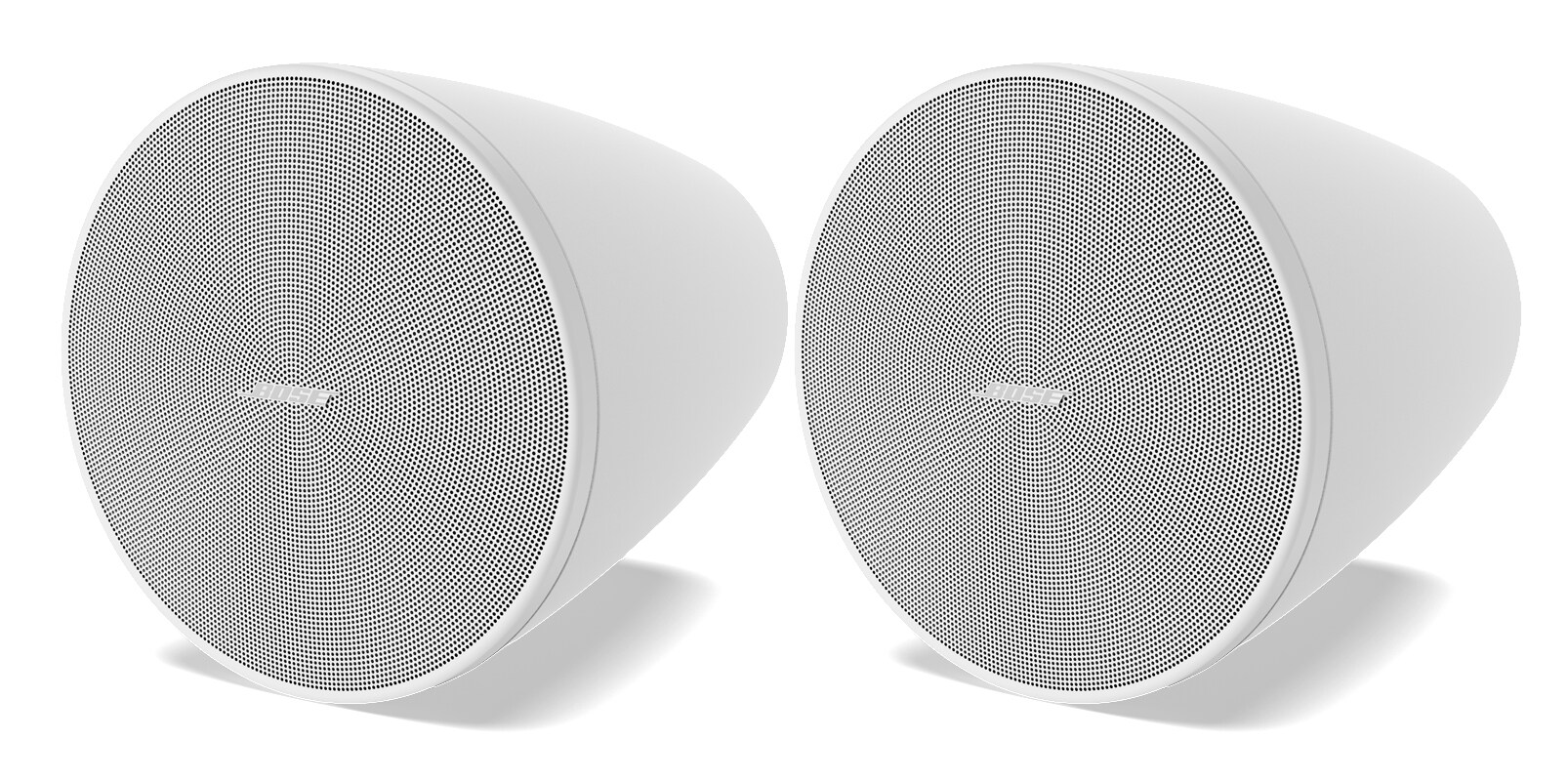

BOSE/DesignMax DM5P PAIR WHITE pendant type speaker

BOSE / DesignMax DM5P PAIR WHITE pendant type speaker

Variations

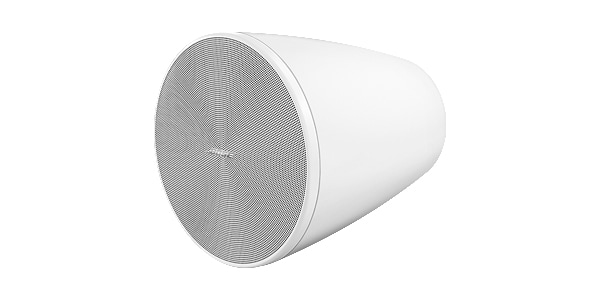

DesignMax DM5P PAIR WHITE is a BOSE pendant speaker. A coaxial 2-way design is adopted to achieve an output of 60 W. Equipped with a 5.25-inch woofer and a 1-inch coaxial tweeter placed in the Dispersion Alignment system. Plays a frequency range from 65 Hz to 20 kHz. The color is white.

■ Pendant type speaker
■ 5.25 inches
■ 8Ω
■ 100W (PGM)
■ 100V / 70V compatible
■ White
■ Pair

■ Clear and clear treble by coaxial 2-way method and surprising bass that can not be imagined from the size
? Provides excellent sound without DSP or EQ. For those looking for even better sound, Bose DSPs and amplifiers are recommended. Take advantage of Bose's speaker EQ and SmartBass processing to improve performance and response at all volume levels.

■ Achieves a uniform listening level throughout the space
--Dispersion Alignment system adjusts tweeter coverage to match woofer coverage

■ Elegant design that blends into any interior
--The bezel's inconspicuous grill. The logo is removable.

■ Easy to install with industry standard accessories
Includes Euroblock connector.

■ High-quality appearance that combines functionality
――The pendant type speaker uses a recessed single point suspension system that can hide the metal fittings and extra length for maintenance. Installation work can be done easily by keeping the extra length of the cable without worrying about the appearance after installation.

■ Frequency characteristics (+/- 3 dB)
80-20,000 Hz
■ Nominal coverage (horizontal x vertical)
120 ° cone
■ Allowable input (peak)
200 W
■ Maximum sound pressure level @ 1m
105 dB
■ Frequency range (-10 dB)
65-20,000 Hz
■ Allowable input (continuous)
50 W
■ Sensitivity (SPL / 1W @ 1 m)
87 dB
■ Nominal impedance
8 Ω (during transformer bypass)
■ Recommended high-pass protection
65 Hz (minimum 24 dB / octave) filter
■ Transformer tap
70V: 3, 6, 12, 25, 50 W, bypass
100V: 6, 12, 25, 50 W, bypass
■ Low frequency 5.25 inch (133 mm) woofer x 1
■ High frequency 1 inch (25 mm) neodymium dome tweeter x 1, coaxial mount
■ Nominal impedance 8 Ω (during trans bypass)
■ Connector
Euroblock 6-pin connector with loop-through
Compatible with 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size cables
■ Hanging / mounting
Equipped with 1 suspension mounting point and 1 safety cable mounting point. Includes 1 adjustable Gripple suspension cable (4.5 m).
■ Product dimensions (enclosure diameter x depth)
259 x 300 mm
■ Cable dimensions
Length: 4.57 m
Diameter: 2 mm
■ Mass (single) Approximately 4.1 kg
■ Packing mass (pair) Approximately 11.00 kg
■ Accessories
Includes 1 adjustable Gripple suspension cable system and 4 cable ties
■ Optional accessories
Adapter for threaded rods
Conduit adapter
Gripple Pendant Suspension Cable Pair Kit
