BOSE/DesignMax DM3P PAIR BLACK pendant type speaker

BOSE / DesignMax DM3P PAIR BLACK pendant type speaker

Variations

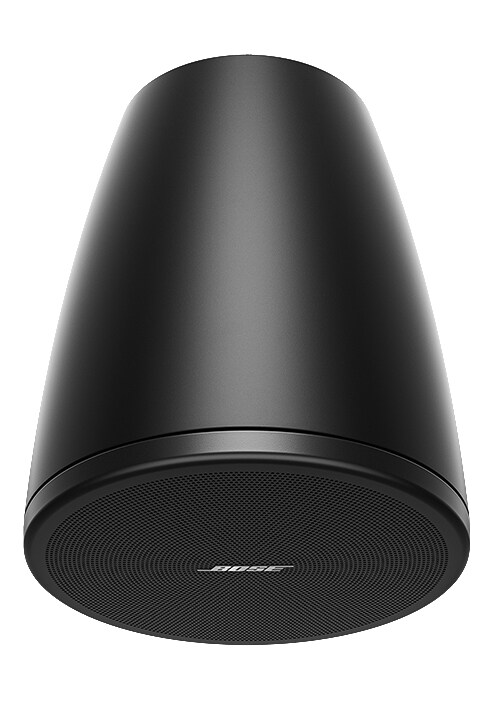

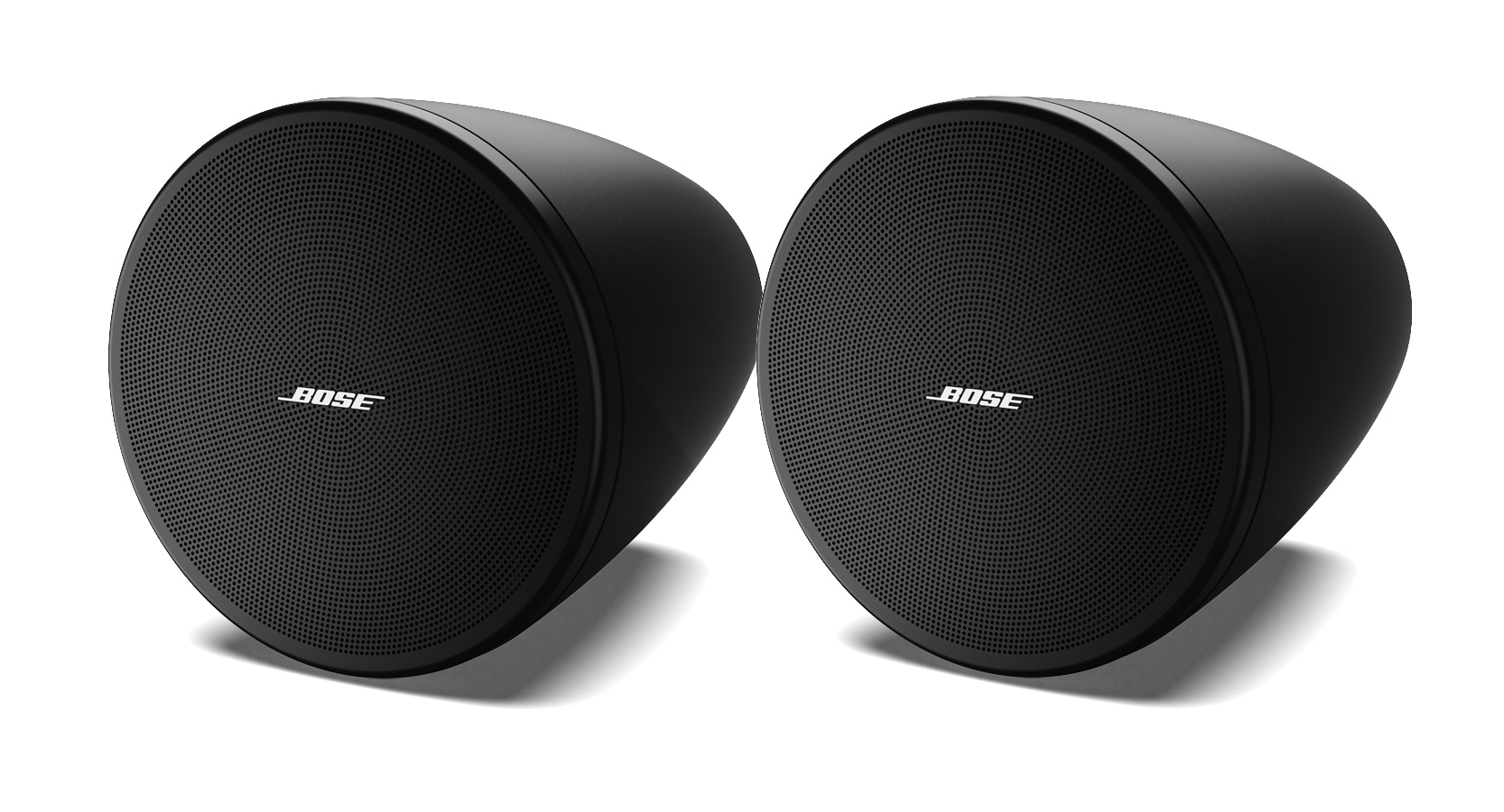

DesignMax DM3P PAIR BLACK is a BOSE pendant speaker. A coaxial 2-way design is adopted to achieve an output of 30 W. Equipped with a 3.25 inch woofer and 0.75 inch coaxial tweeter arranged by the Dispersion Alignment system. Plays a frequency range from 75 Hz to 20 kHz. The color is black.

■ Pendant type speaker
■ 3.25 inches
■ 8Ω
■ 50W (PGM)
■ 100V / 70V compatible
■ Black
■ Pair

■ Clear and clear treble by coaxial 2-way method and surprising bass that can not be imagined from the size
? Provides excellent sound without DSP or EQ. For those looking for even better sound, Bose DSPs and amplifiers are recommended. Take advantage of Bose's speaker EQ and SmartBass processing to improve performance and response at all volume levels.

■ Achieves a uniform listening level throughout the space
--Dispersion Alignment system adjusts tweeter coverage to match woofer coverage

■ Elegant design that blends into any interior
--The bezel's inconspicuous grill. The logo is removable.

■ Easy to install with industry standard accessories
Includes Euroblock connector.

■ High-quality appearance that combines functionality

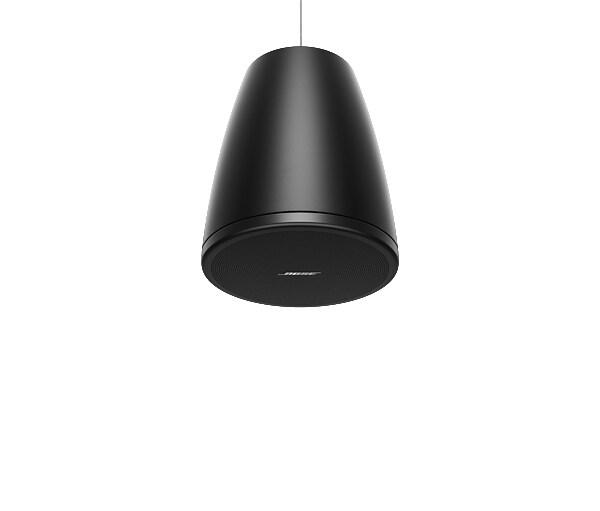

――The pendant type speaker uses a recessed single point suspension system that can hide the metal fittings and extra length for maintenance. Installation work can be done easily by keeping the extra length of the cable without worrying about the appearance after installation.

■ Frequency characteristics (+/- 3 dB)
80-20,000 Hz
■ Nominal coverage (horizontal x vertical)
130 ° cone
■ Allowable input (peak)
100 W
■ Maximum sound pressure level @ 1m
99 dB
■ Frequency range (-10 dB)
75-20,000 Hz
■ Allowable input (continuous)
25 W
■ Sensitivity (SPL / 1W @ 1 m)
84 dB
■ Nominal impedance
8 Ω (during transformer bypass)
■ Recommended high-pass protection
80 Hz (minimum 24 dB / octave) filter
■ Transformer tap
70V: 3, 6, 12, 25 W, bypass
100V: 6, 12, 25 W, bypass

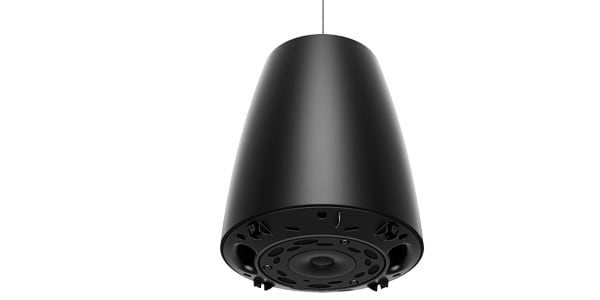

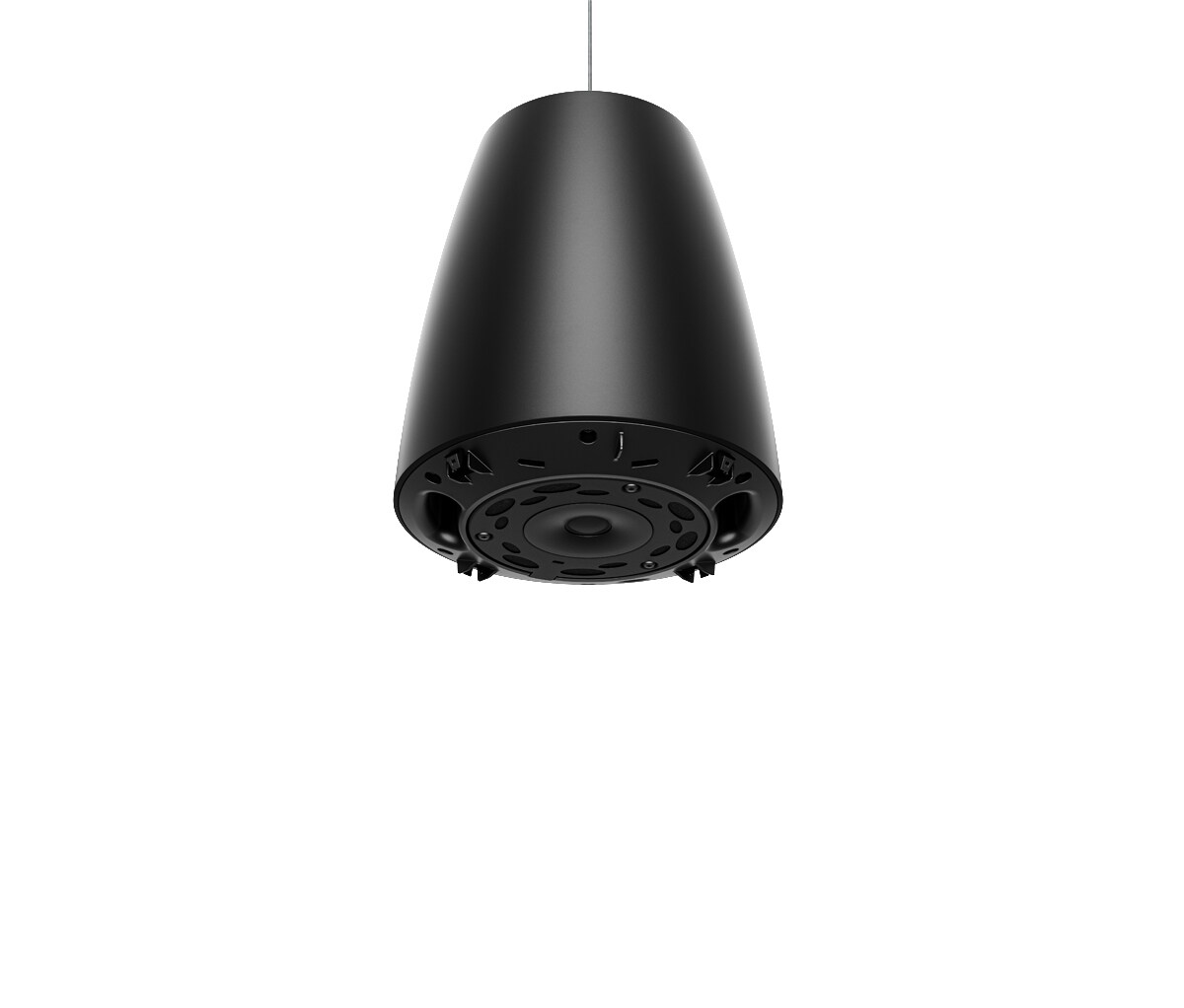

■ Low range 3.25 inch (83 mm) woofer x 1
■ High range 0.75 inch (20 mm) neodymium dome tweeter ×

1, coaxial mount
■ Nominal impedance 8 Ω (during trans bypass)

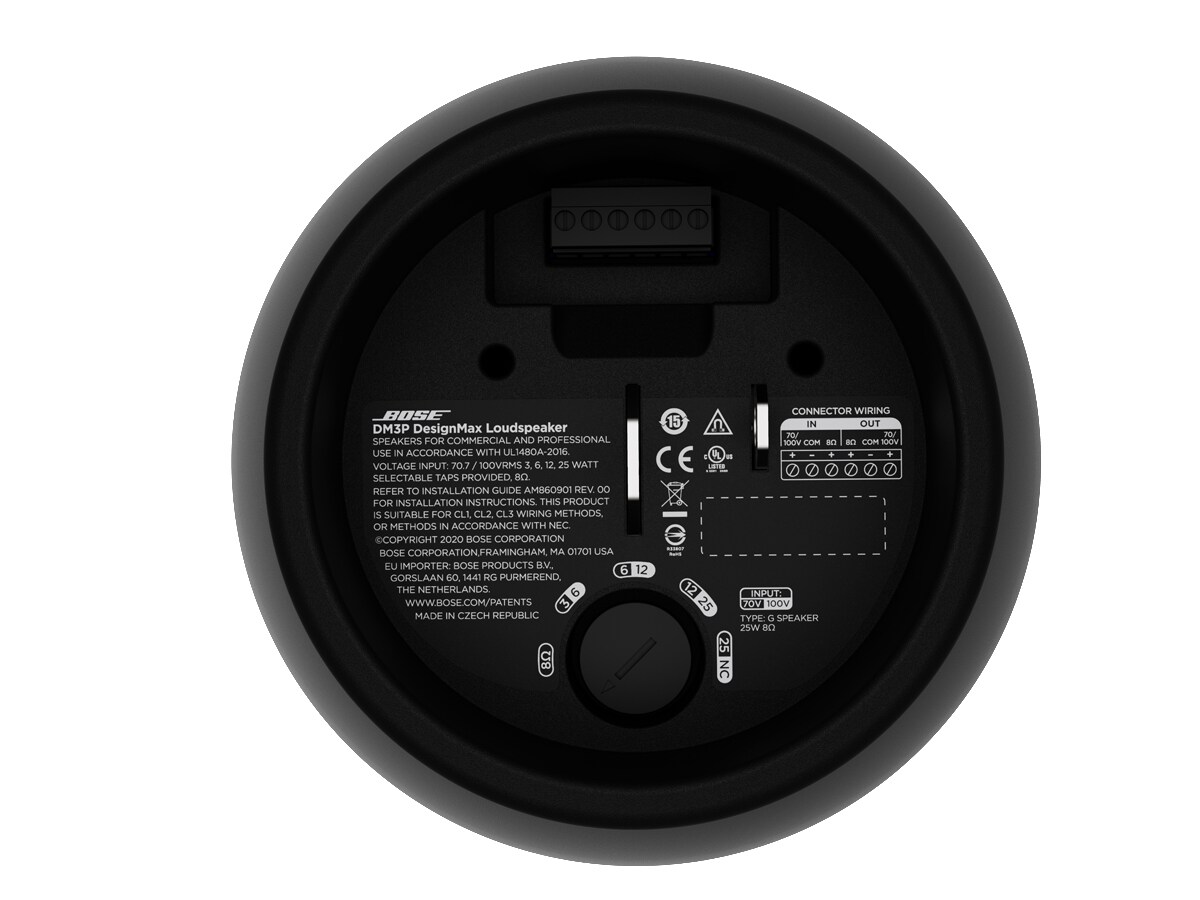

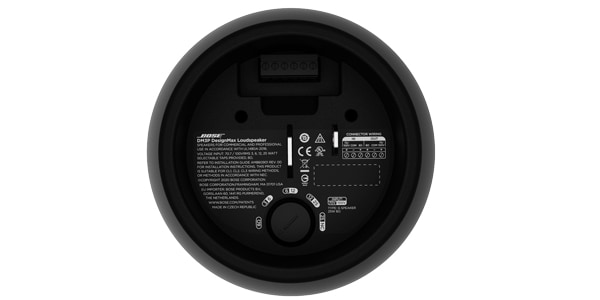

■ Connector
Euroblock 6-pin connector with loop-through
Compatible with 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size cables
■ Hanging / mounting
Equipped with 1 suspension mounting point and 1 safety cable mounting point. Includes 1 adjustable Gripple suspension cable (4.5 m).
■ Product dimensions (enclosure diameter x depth)
207 x 248 mm
■ Cable dimensions
Length: 4.57 m
Diameter: 2 mm
■ Mass (single) Approximately 2.5 kg
■ Packing mass (pair) Approximately 7.00 kg
■ Accessories
Includes 1 adjustable Gripple suspension cable system and 4 cable ties
■ Optional accessories
Threaded rod adapter, conduit adapter
Gripple Pendant Suspension Cable Pair Kit
