BOSE/DesignMax DM10P-SUB SINGLE WHITE pendant type subwoofer

BOSE / DesignMax DM10P-SUB SINGLE WHITE pendant type subwoofer

Variations

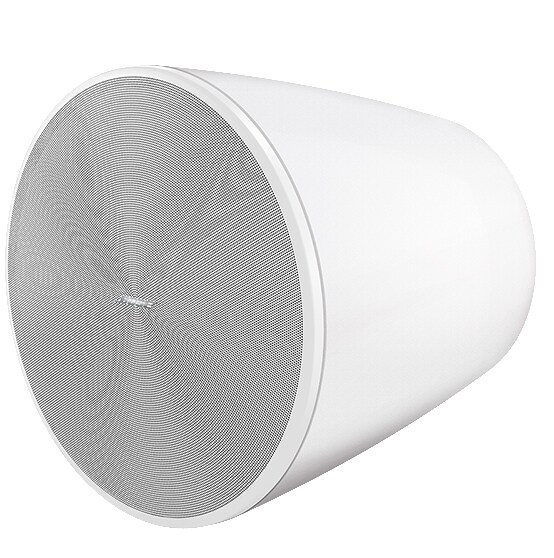

DesignMax DM10P-SUB SINGLE WHITE is BOSE's pendant type subwoofer. Equipped with a 10-inch subwoofer with 300 W output. Plays a frequency range from 40 Hz to 125 Hz. The color is white.

■ Pendant type subwoofer
■ 10 inches
■ 8Ω
■ 500W (PGM)
■ 100V / 70V compatible
■ White
■ 1

■ Bose's original driver realizes rich bass
--Optimize performance by combining Bose DSP and amplifier with Bose speaker EQ and SmartBass processing. You can improve performance and response at all volume levels.

■ Elegant design that blends into any interior
--Compact bezel grille, removable logo

■ Easy to install with industry standard accessories
Includes Euroblock connector.

■ Both accessibility and excellent design

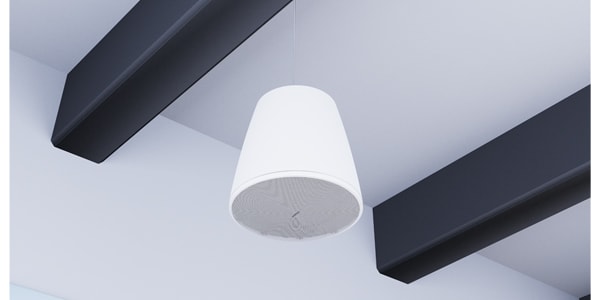

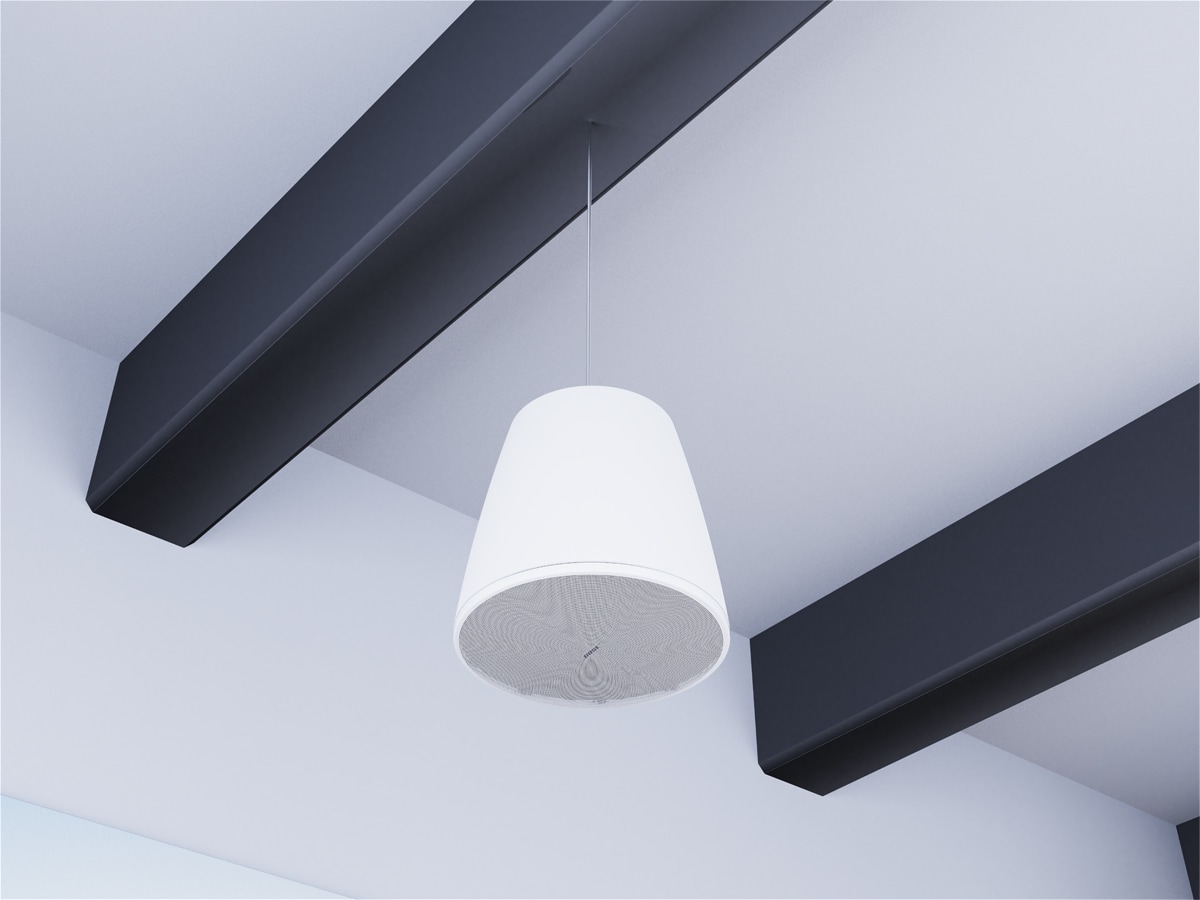

――The pendant type speaker is equipped with a recessed single point suspension system that makes it difficult to see the installation equipment. Access is easy by retaining and hiding the extra length of the maintenance cable.

■ Frequency characteristics (+/- 3 dB)
46-108 Hz
■ Nominal coverage (horizontal x vertical)
Omnidirectional below 200 Hz
■ Allowable input (peak)
1000 W
■ Maximum sound pressure level @ 1m
110 dB
■ Frequency range (-10 dB)
40-125 Hz
■ Allowable input (continuous)
250 W
■ Sensitivity (SPL / 1W @ 1 m)
85 dB
■ Nominal impedance
8 Ω (during transformer bypass)
■ Recommended high-pass protection
45 Hz (recommended 24 dB / octave) filter
■ Recommended crossover
80-200 Hz (requires active crossover by DSP)
■ Transformer tap
70V: 20, 40, 80, 150 W, bypass
100V: 40, 80, 150 W, bypass
■ Low frequency 10 inch (254 mm) woofer x 1
■ Nominal impedance 8 Ω (during trans bypass)

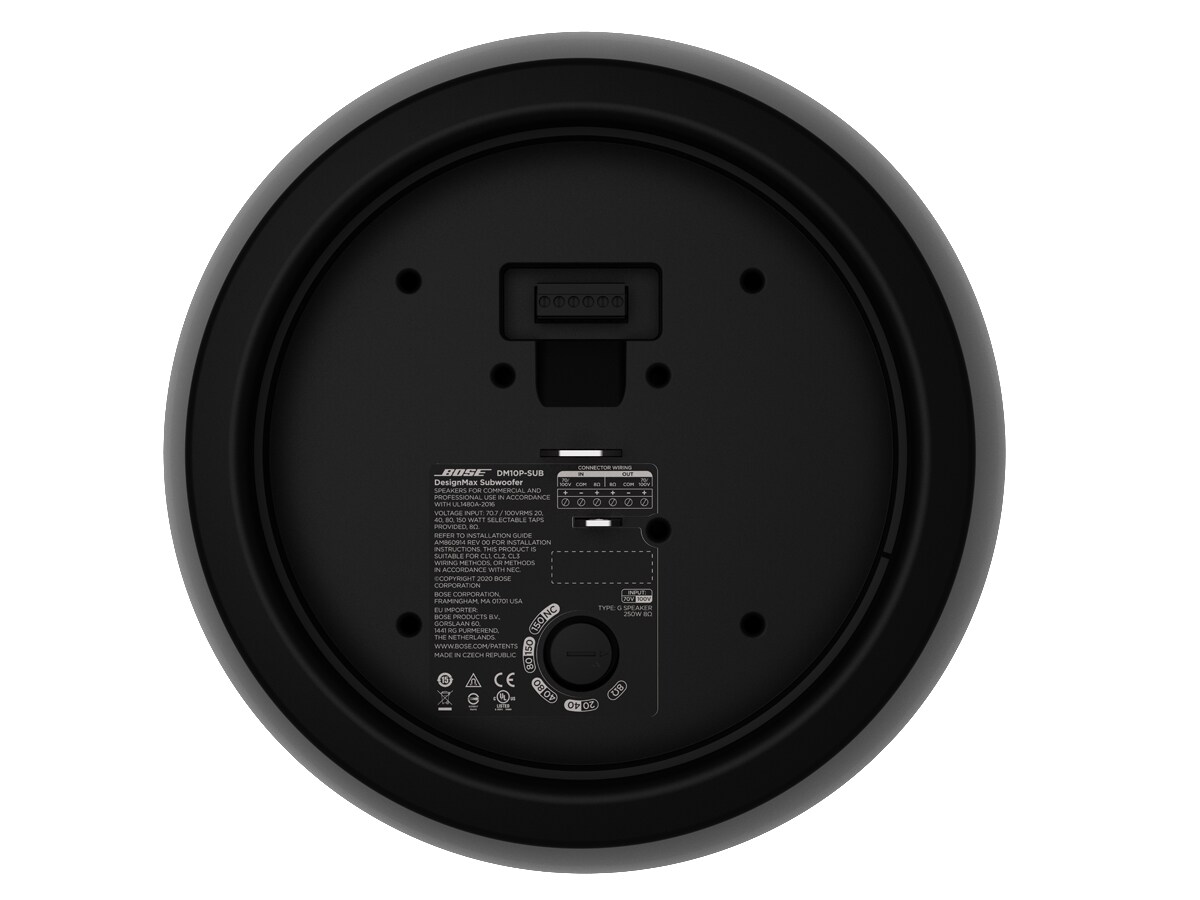

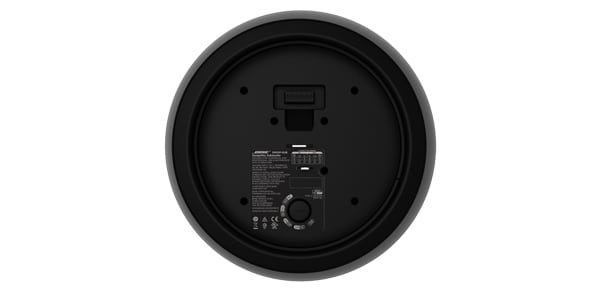

■ Connector
Euroblock 6-pin connector with loop-through
Compatible with 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size cables
■ Hanging / mounting
Equipped with 1 suspension mounting point and 1 safety cable mounting point. Includes 1 adjustable Gripple suspension cable (4.5 m).
■ Product dimensions (enclosure diameter x depth)
400 x 383 mm
■ Cable dimensions
Length: 4.57 m
Diameter: 2 mm
■ Mass (single) Approximately 8.9kg
■ Packing mass (pair) Approximately 12.65 kg
■ Accessories
Includes 1 adjustable Gripple suspension cable system and 4 cable ties
■ Optional accessories
Adapter for threaded rods
Conduit adapter
