BOSE/DesignMax DM10P-SUB SINGLE BLACK Pendant type subwoofer

BOSE / DesignMax DM10P-SUB SINGLE BLACK Pendant type subwoofer

Variations

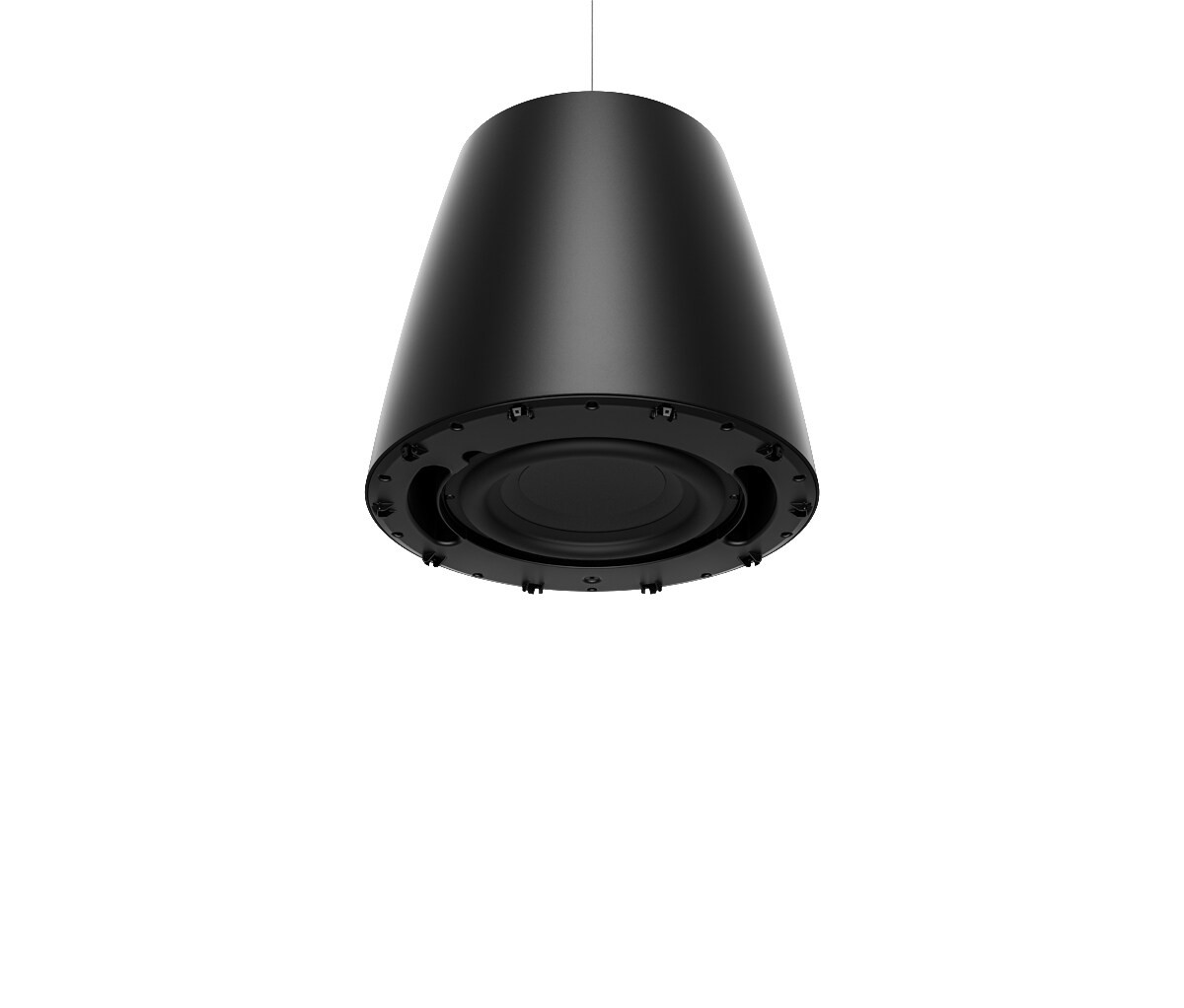

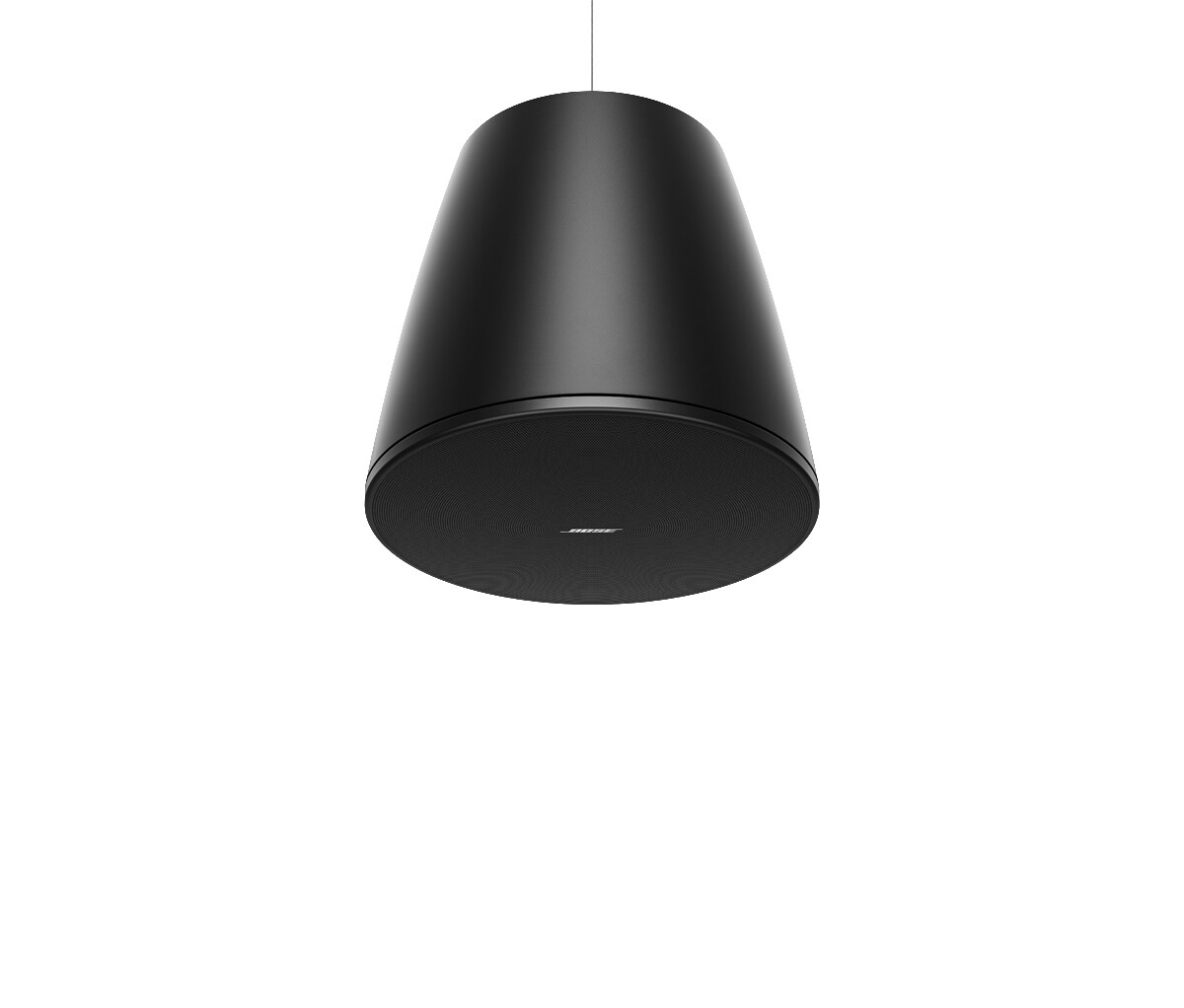

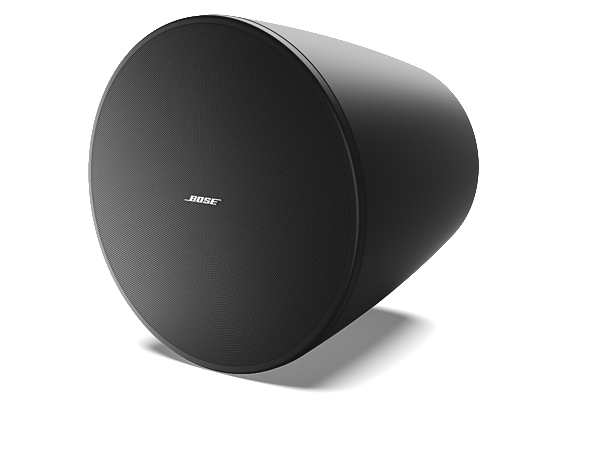

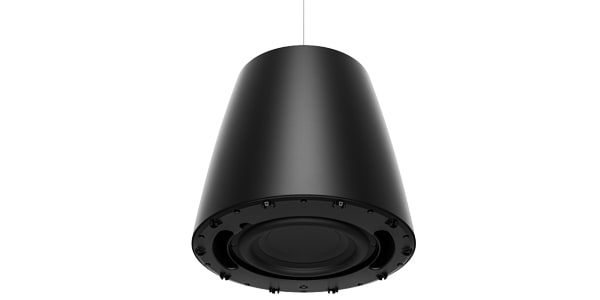

The DesignMax DM10P-SUB SINGLE BLACK is a pendant subwoofer from BOSE. It is equipped with a 10-inch subwoofer with 300W output. It reproduces a frequency range of 40 Hz to 125 Hz. It is available in black.

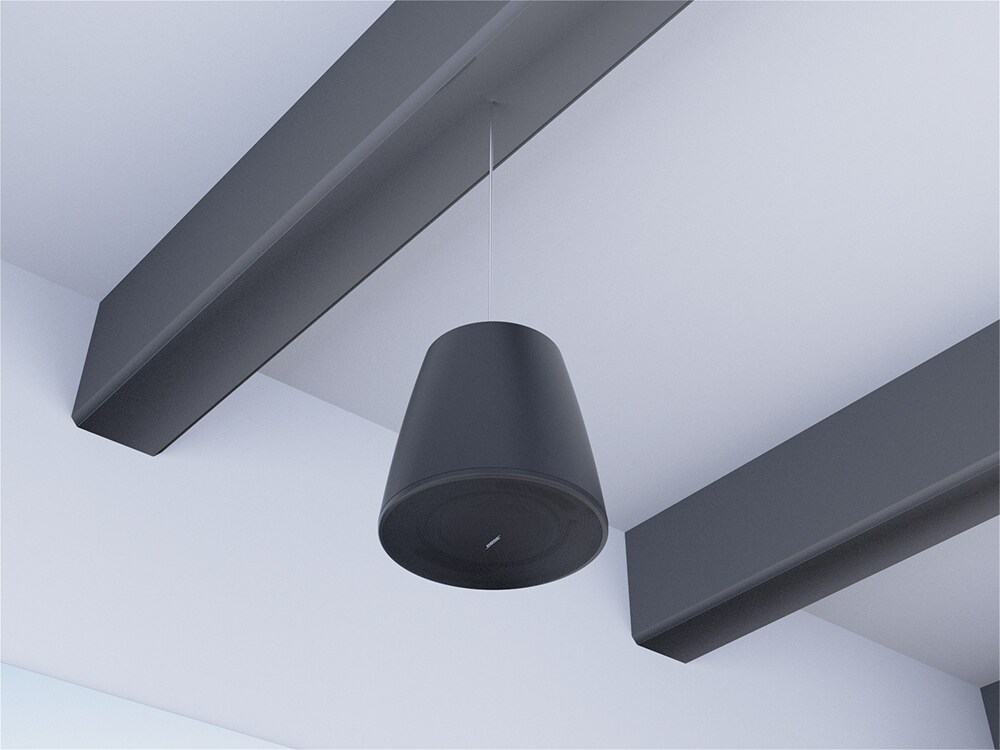

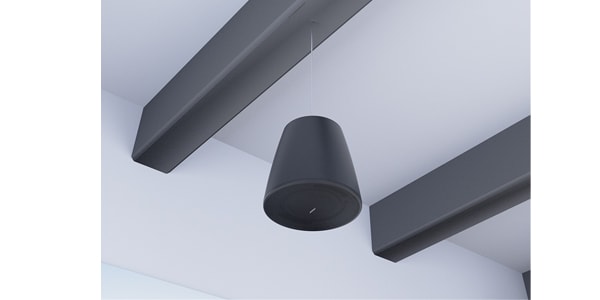

■Pendant subwoofer ■10 inches ■8Ω ■500W (PGM) ■Compatible with 100V/70V ■Black ■1 unit ■Delivers rich bass with Bose's proprietary driver - Optimize performance by combining Bose DSP and amplifiers with Bose speaker EQ and SmartBass processing. Improve performance and response at all volume levels. ■Elegant design that blends in with any décor -Compact bezel grille, removable logo ■Industry-standard accessories make installation easy - Euroblock connector included. ■Combines easy accessibility with great design - The pendant speaker features a single-point suspension system with a recessed shape that hides the installation equipment. It allows easy access by retaining and hiding excess cable length for maintenance. ■Frequency response (+/-3 dB) 46-108 Hz ■Nominal coverage (horizontal x vertical) Omnidirectional below 200 Hz ■Power handling capacity (peak) 1000 W ■Maximum sound pressure level @ 1m 110 dB ■Frequency range (-10 dB) 40-125 Hz ■Power handling capacity (continuous) 250 W ■Sensitivity (SPL/1W @ 1 m) 85 dB ■Nominal impedance 8 Ω (with transformer bypass) ■Recommended high-pass protection 45 Hz (recommended 24 dB/octave) filter ■Recommended crossover 80-200 Hz (requires active crossover by DSP) ■Transformer taps 70V: 20, 40, 80, 150 W, bypass 100V: 40, 80, 150 W, bypass ■Low frequency 1 x 10 inch (254 mm) woofer ■Nominal impedance 8 Ω (with transformer bypass) ■Connectors Euroblock 6-pin connector with loop-through Suitable for cables sized 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) ■Hanging/Mounting Equipped with one suspension mounting point and one safety cable mounting point. One adjustable Gripple suspension cable (4.5 m) is included. ■Product dimensions (enclosure diameter x depth) 400 x 383 mm ■Cable dimensions Length: 4.57 m Diameter: 2 mm ■Weight (single) Approximately 8.9 kg ■Shipping weight (pair) Approximately 12.65 kg ■Included accessories One adjustable Gripple suspension cable system, four cable ties included ■Optional accessories Cut-to-length bolt adapter Conduit adapter
